Turn Signal Switch
Turn Signal Switch

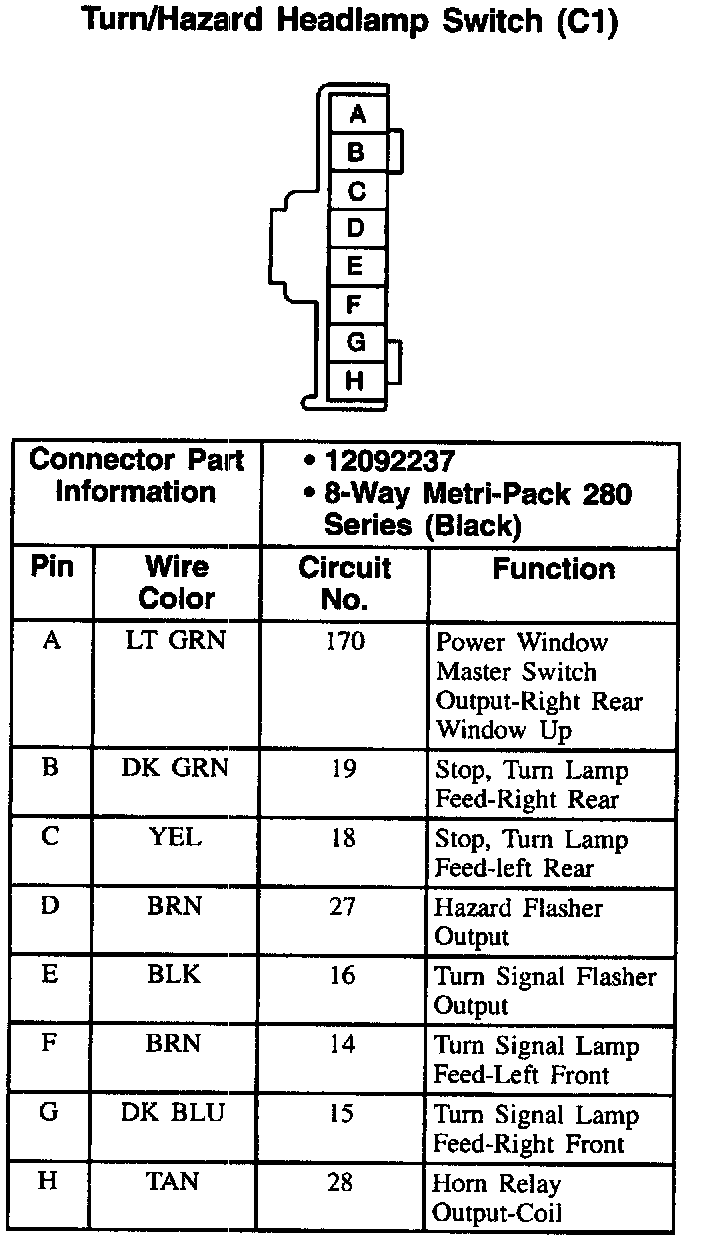

Turn/Hazard Headlamp Switch (C1):

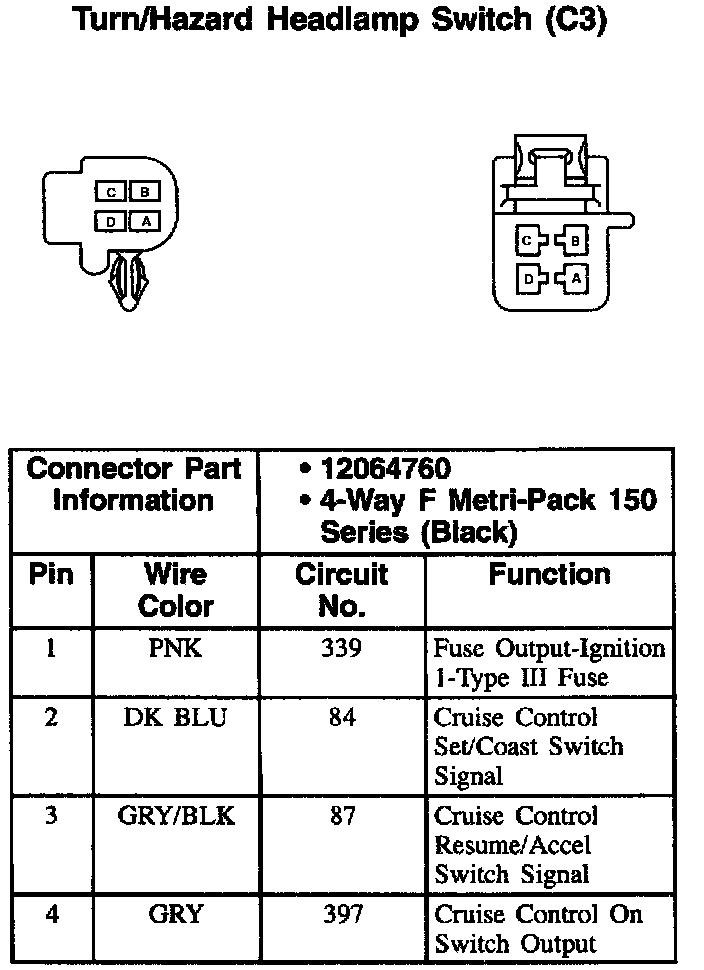

Turn/Hazard Headlamp Switch (C3):
Turn/Hazard Headlamp Switch (C2):
