Antitheft and Alarm Systems
>>
Lock Cylinder Switch
Lock Cylinder Switch

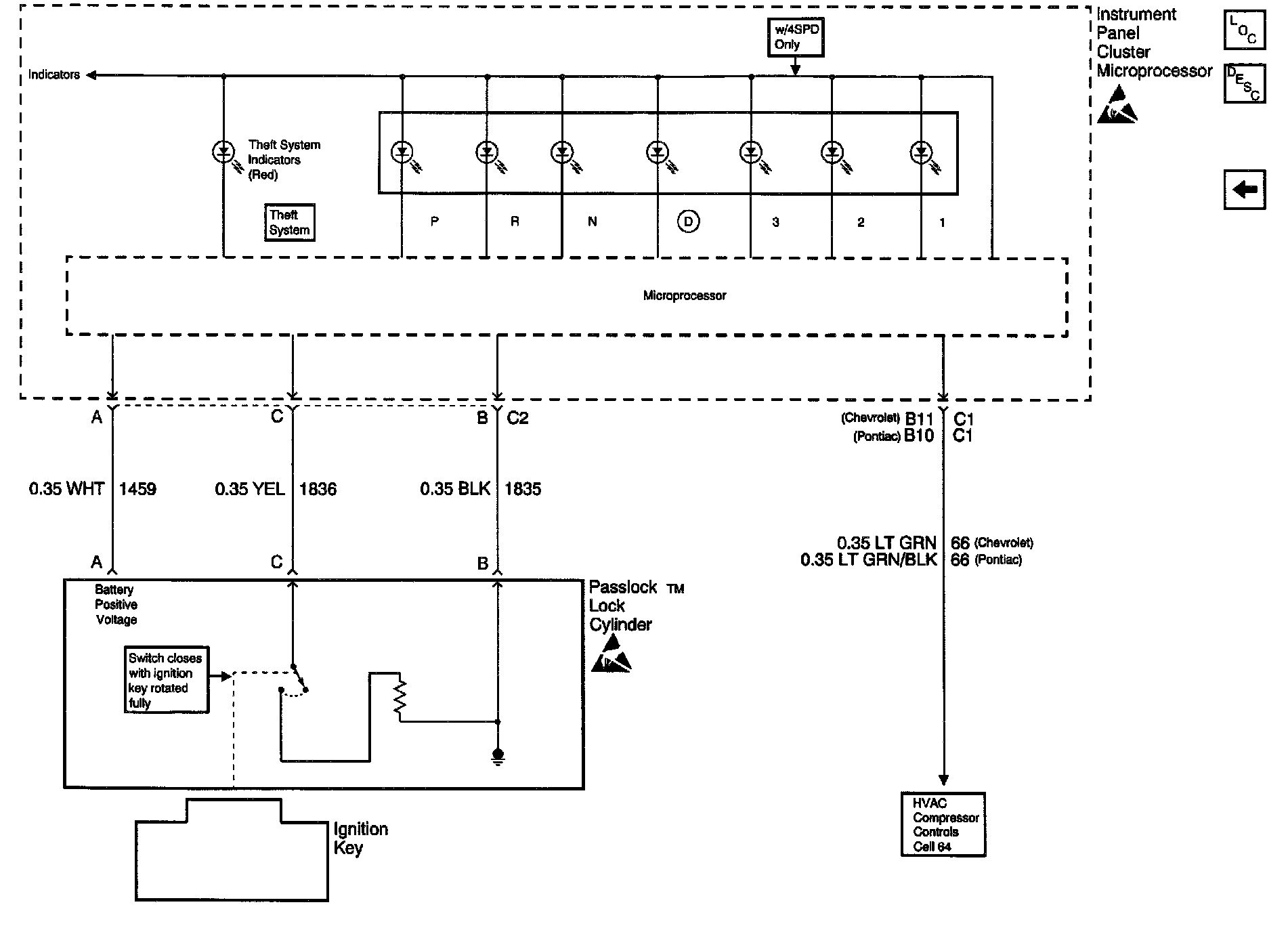

Theft Deterrent System Schematics: Passlock Lock Cylinder:
