Suspension
Suspension

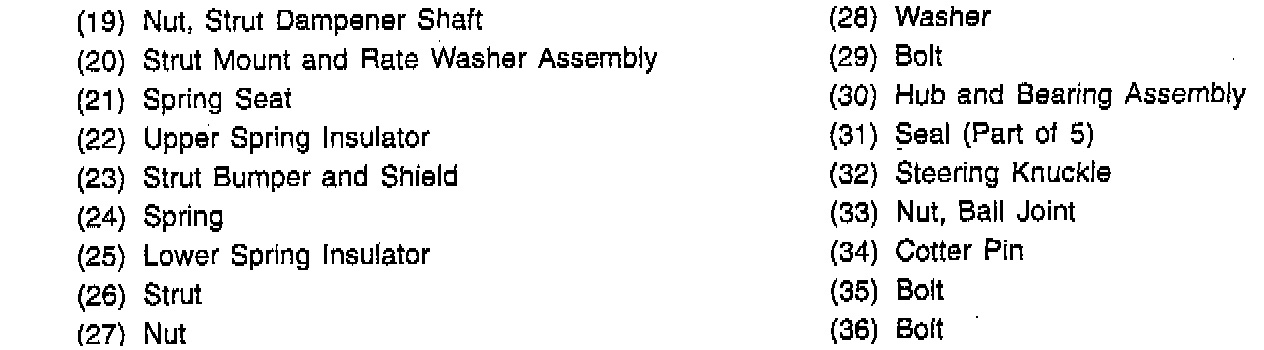

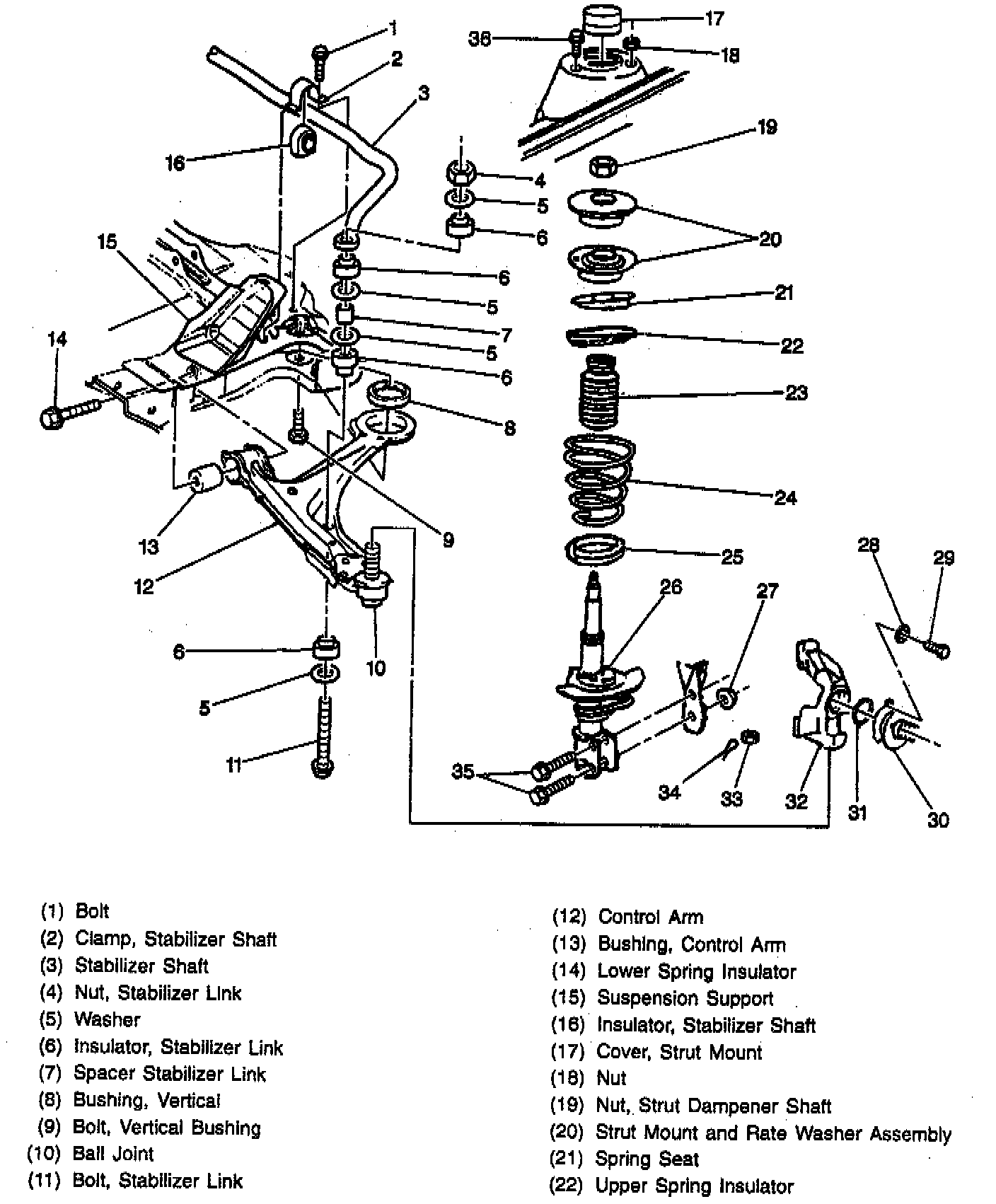

Front Suspension Assembly - Part 1 Of 2:
Front Suspension Assembly - Part 2 Of 2:
Front Suspension Assembly - Part 1 Of 2:
Front Suspension Assembly - Part 2 Of 2:
