Fastener Tightening Specifications - Main Bearing Cap

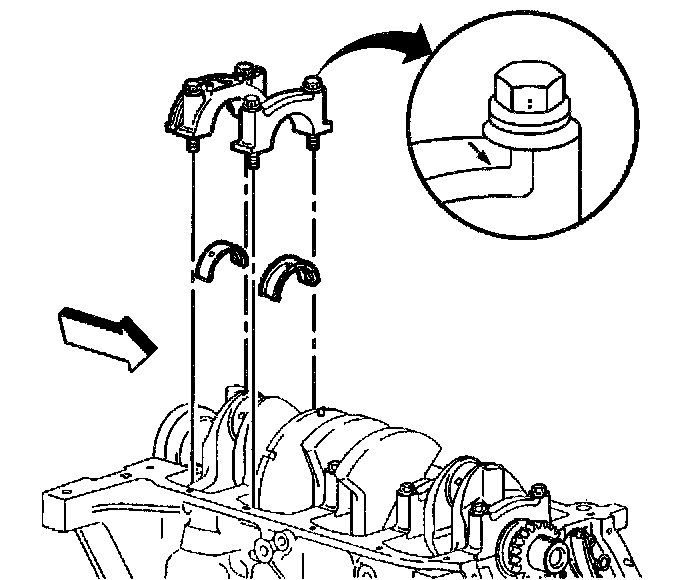

Install the crankshaft bearing caps to the engine block.

NOTICE: Refer to Fastener Notice in Service Precautions.

Install the crankshaft bearing cap bolts to the engine block.
^ Tighten the crankshaft bearing cap bolts first to 50 Nm (37 lb ft).





Before installing the rear crankshaft bearing cap, coat the face of the block where it mates to the cap with sealer GM P/N 1052942.





Measure the crankshaft end play using the following procedure:
1. Firmly thrust the crankshaft rearward.
2. Firmly thrust the crankshaft forward.
3. This will align the crankshaft bearing and the crankshaft thrust surfaces.
^ Tighten the crankshaft bearing cap bolts to 95 Nm (70 lb ft).
