Home >> Chevrolet >> 1998 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Resistor >> Diagrams

Blower Motor Resistor: Diagrams

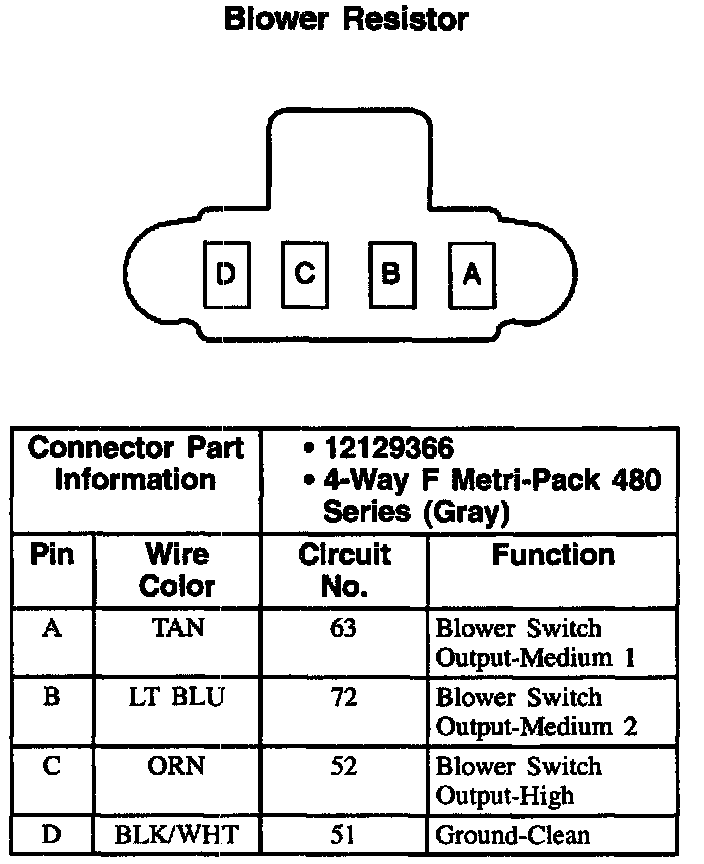

Blower Resistor:
