Instrument Panel Insulator Replacement

REMOVAL PROCEDURE

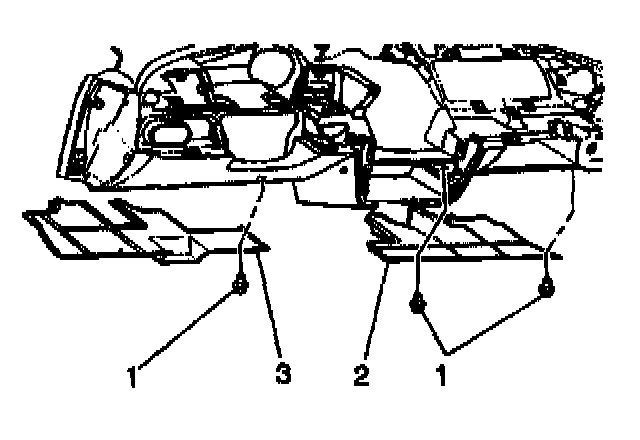

1. Remove the left sound insulator screws (1) from the instrument panel.
2. Remove the left sound insulator (3).
3. Remove the right sound insulator screws (1) from the instrument panel.
4. Remove the right sound insulator (2).

INSTALLATION PROCEDURE.
Install the right sound insulator (2) to the instrument panel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the right sound insulator screws (1) to the instrument panel.

Tighten
Tighten the screws to 2 Nm (18 lb in).

3. Install the left sound insulator (3) to the instrument panel.
4. Install the left sound insulator screws (1) to the instrument panel.

Tighten
Tighten the screws to 2 Nm (18 lb in).
