Home >> Chevrolet >> 1998 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Connector Views >> Instrument Cluster C1

Instrument Cluster C1

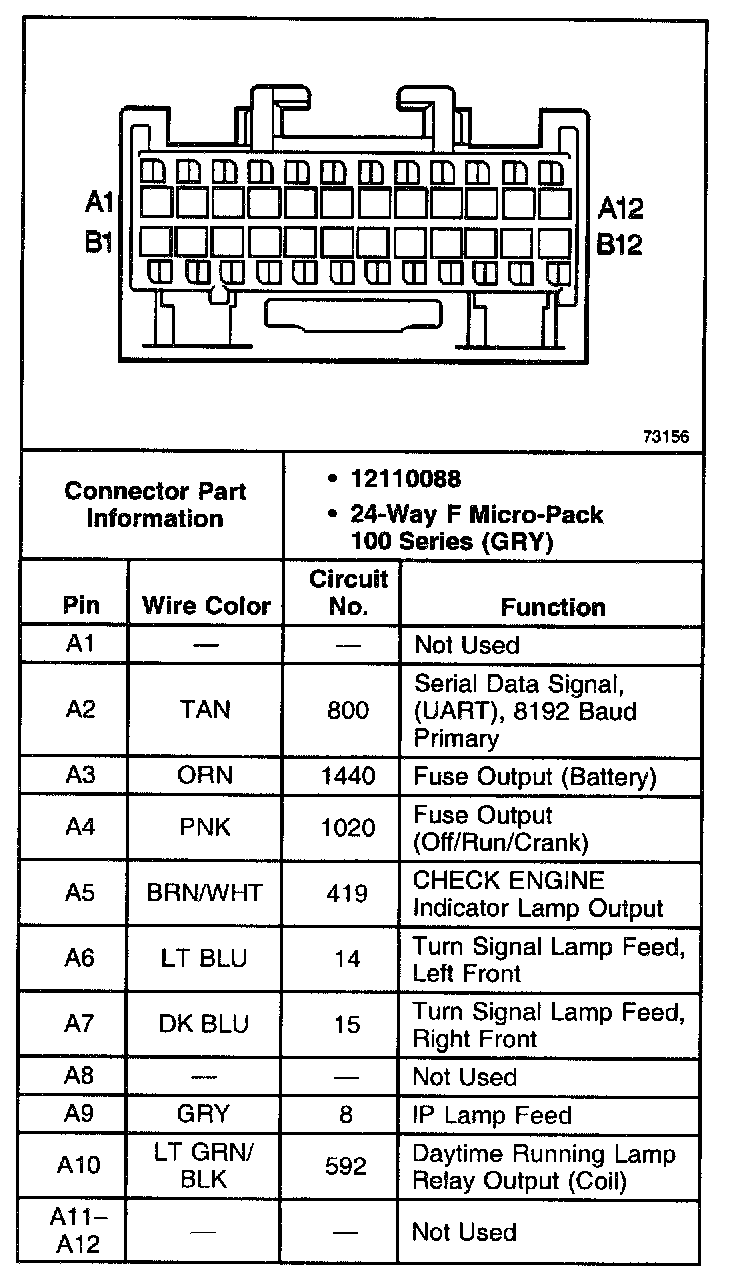

Instrument Cluster C1:

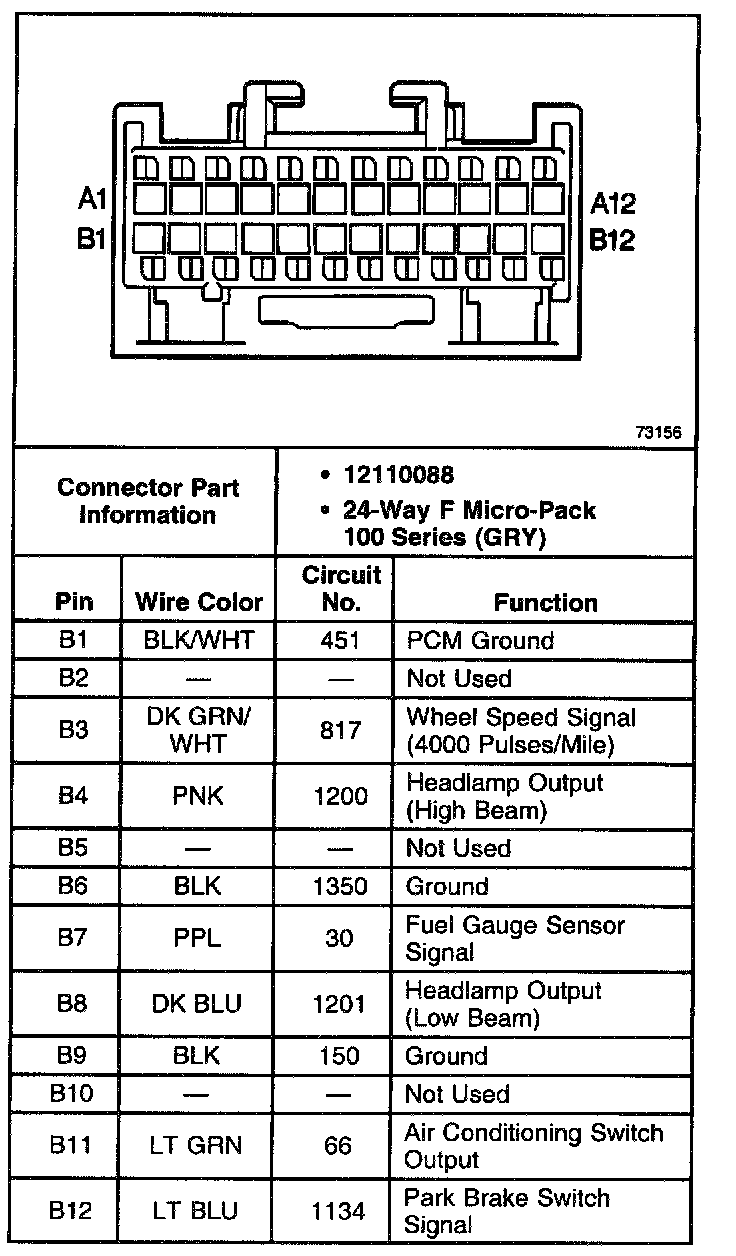

Instrument Cluster C1:
