Instrument Panel Cluster Replacement

REMOVAL PROCEDURE





CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Disable the SIR system.
3. Remove the instrument panel trim plate.

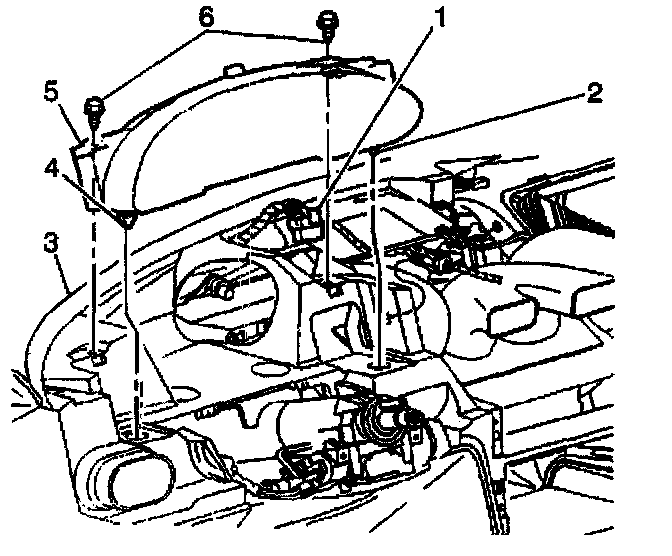

4. Remove the screws (6) from the top of the cluster (5).
5. Pull the cluster (5) rearward.
6. Remove the cluster (5).

INSTALLATION PROCEDURE





1. Install the cluster (5) to the instrument panel (3).

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the screws (6) at the top of the cluster (5).

Tighten
Tighten the screws to 2 Nm (18 lb in).

3. Install the instrument panel trim plate.
4. Connect the negative battery cable.
5. Enable the SIR system.
