Lighting and Horns
>>
Marker Lamp
>>
Diagrams
Marker Lamp: Diagrams

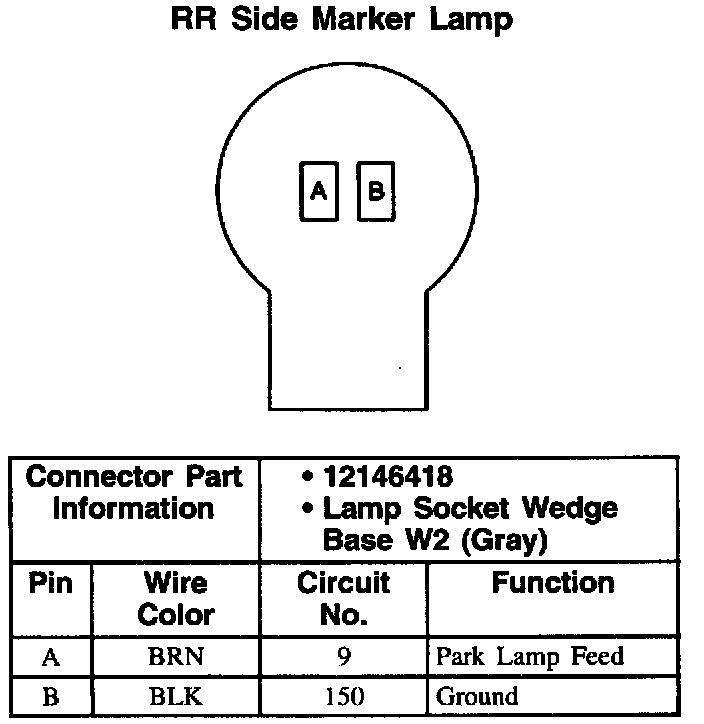

RR Side Marker Lamp:
LR Side Marker Lamp:

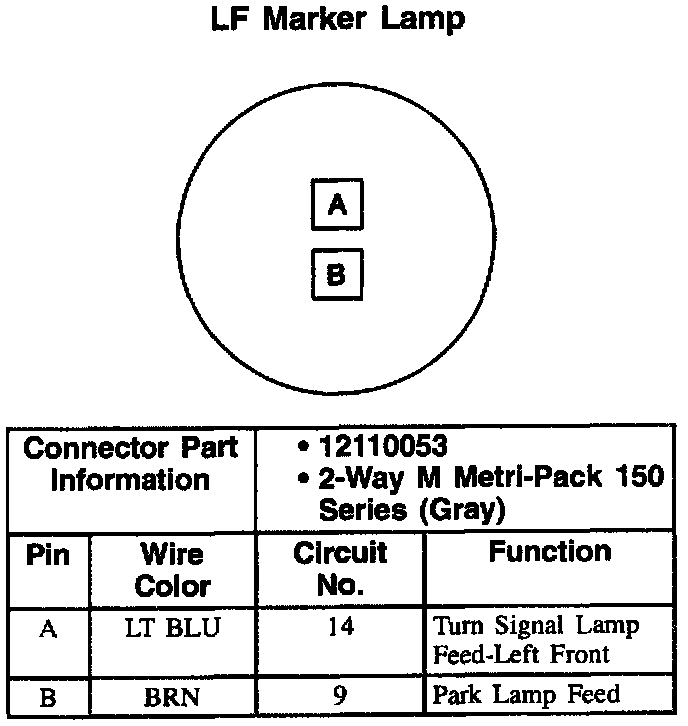

LF Marker Lamp:
RF Marker Lamp:
