Front Hub and Bearing

FRONT HUB/BEARING

REMOVAL PROCEDURE
^ Tools Required:
- J 28733-B Front Hub Spindle Remover

1. Remove the drive axle. Refer to WHEEL DRIVE SHAFTS REPLACEMENT in Drive Axles, Bearings and Joints.
2. Remove brake caliper bolts and support caliper. Refer to BRAKE CALIPER REPLACEMENT in BRAKES.
3. Remove the rotor. Refer to ROTOR REPLACEMENT in HYDRAULIC BRAKES.





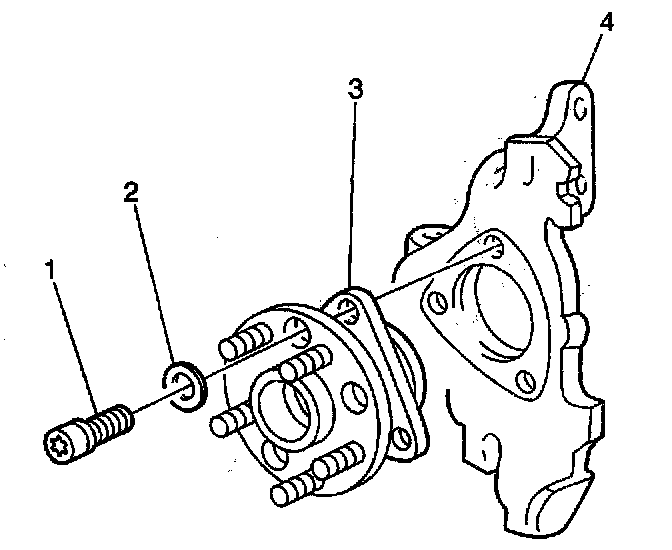

4. Remove the bolts (1) from the hub and bearing assembly (3).

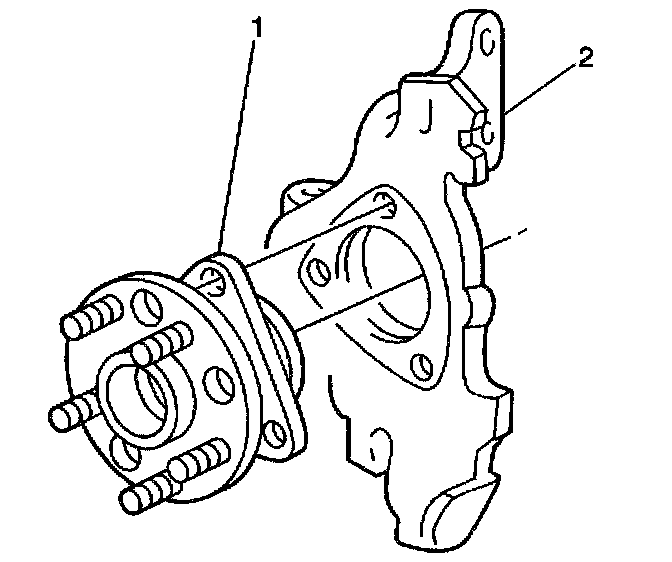

5. Remove the hub and bearing assembly (1) from the steering knuckle (2).

INSTALLATION PROCEDURE





1. Install the hub and bearing assembly (1) into the steering knuckle (2).

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.





2. Install the hub and bearing bolts (1) and washers (2).

Tighten
Tighten the bolts to 95 Nm (70 lb ft).

3. Install the rotor. Refer to ROTOR REPLACEMENT in HYDRAULIC BRAKES.
4. Install the brake caliper and bolts. Refer to BRAKE CALIPER REPLACEMENT in BRAKES.
5. Install the drive axle. Refer to WHEEL DRIVE SHAFTS REPLACEMENT in Drive Axles, Bearings and Joints.
6. Check the front wheel alignment. Refer to WHEEL ALIGNMENT SPECIFICATIONS in WHEEL ALIGNMENT.
