Antenna Buffer Replacement

REMOVAL PROCEDURE

Antenna Buffer Replacement: Removal Procedure:

1. Remove the roof bow interior trim panel.
2. Disconnect the rear lift window antenna cable connector and the rear lift window antenna extension cable from the antenna buffer.

Antenna Buffer Replacement: Removal Procedure:

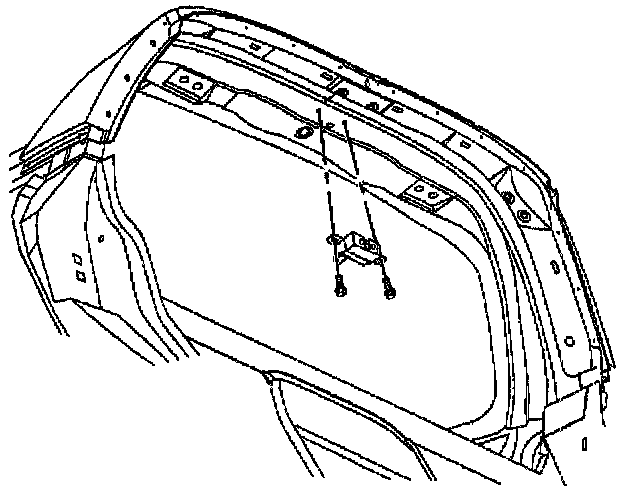

3. Remove the screws retaining the antenna buffer to the roof bow.
4. Remove the antenna buffer.

INSTALLATION PROCEDURE

Antenna Buffer Replacement: Installation Procedure:

1. Install the antenna buffer into position on the roof bow.
2. Install the antenna buffer retaining screws.

Tighten
Tighten the antenna buffer retaining screws to 1.8N.m (16 lb in).

Antenna Buffer Replacement: Installation Procedure:

3. Connect the rear lift window antenna cable connector and the rear lift window antenna extension cable to the antenna buffer.
4. Install the roof bow interior trim panel; use care to not damage the rear antenna cable.
