Antenna Module Replacement

REMOVAL PROCEDURE

Antenna Module Replacement: Removal Procedure:

1. Remove the door sill plate.
2. Remove the lock pillar trim panel.

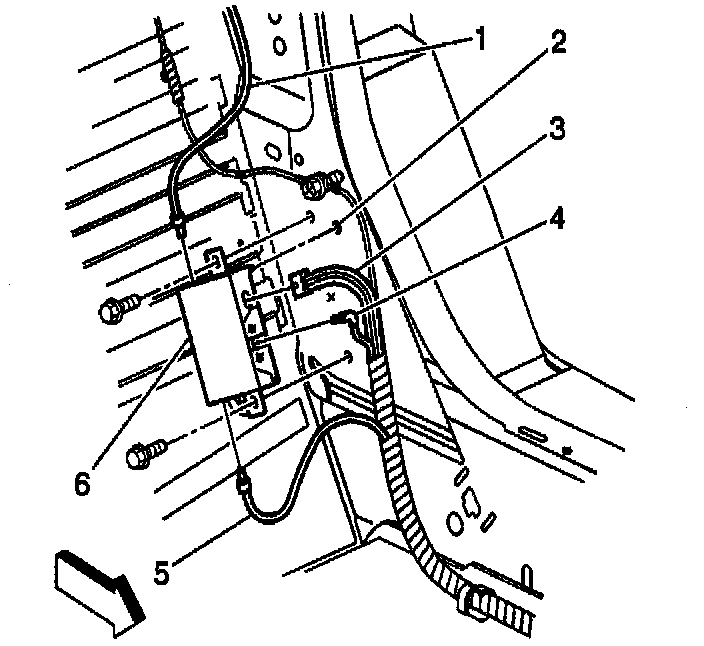

3. Disconnect the electrical/audio connector (3) from the antenna module (6).
4. Disconnect the following three coaxial cables from the antenna module (6).
- Rear lift window antenna extension (1)
- Radio control (4)
- Front windshield antenna (5)
5. Remove the screws retaining the antenna module (6) to the lock pillar.
6. Remove the antenna module (6).

INSTALLATION PROCEDURE

Antenna Module Replacement: Installation Procedure:

1. Install the antenna module (6) into position on the lock pillar.

Align the module locator tab to the lock pillar locating hole (2).
2. Install the antenna module (6) retaining screws.

Tighten
Tighten the antenna module retaining screws to 1.8 N.m (16 lb in).

3. Connect the following three coaxial cables to the antenna module (6).
- Rear lift window antenna extension (1)
- Radio control (4)
- Front windshield antenna (5)
4. Connect the electrical/audio connector (3) to the antenna module (6).
5. Install the lock pillar trim panel.
6. Install the door sill plate.
