Rear Bumper: Service and Repair

REMOVAL PROCEDURE

Energy Absorber Replacement: Rear - Removal Procedure:

1. Remove the rear fascia.

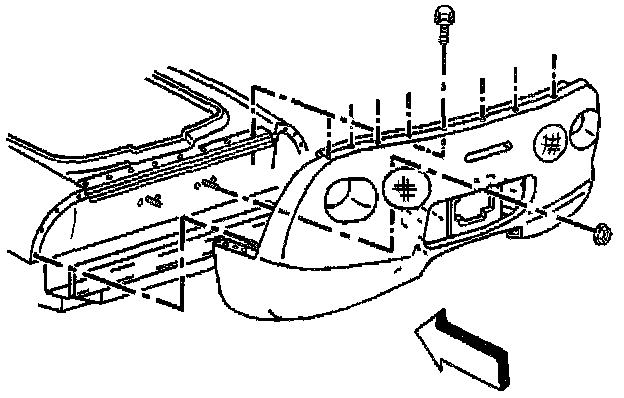

Energy Absorber Replacement: Rear - Removal Procedure:

2. Remove the bolts attaching the absorber to the impact bar.
3. Remove the absorber and the spacers.

INSTALLATION PROCEDURE

Energy Absorber Replacement: Rear - Installation Procedure:

2. Install the bolts through the spacers attaching the absorber to the impact bar.

Tighten
Rear energy absorber attaching bolts to 5 N.m (44 lb in).

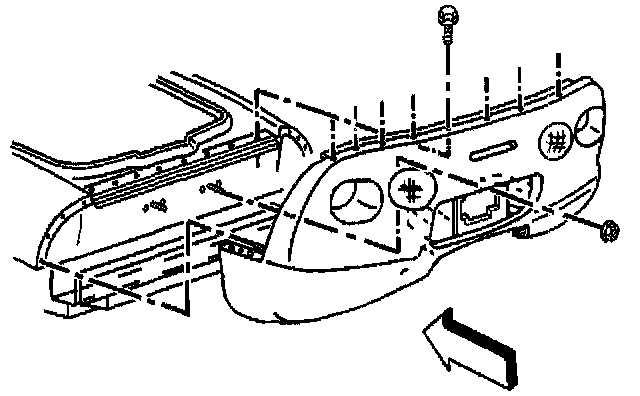

Energy Absorber Replacement: Rear - Installation Procedure:

3. Install the rear fascia.
