Rearview Mirror Lamp Replacement

REMOVAL PROCEDURE

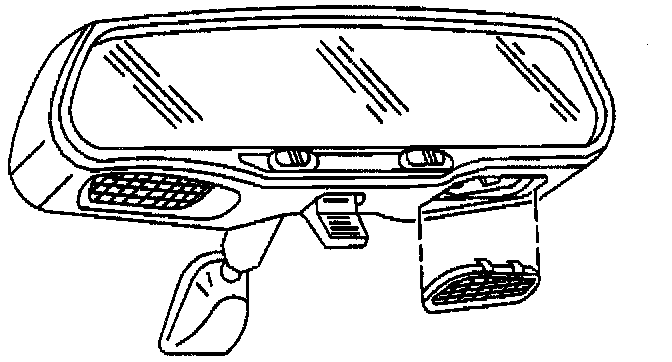

Rearview Mirror Lamp Replacement: Bulb - Removal Procedure:

1. Remove the lamp lens from the mirror housing.

Pry carefully with a small, flat-bladed screwdriver (at the rear edge of the lens, furthest from the windshield).

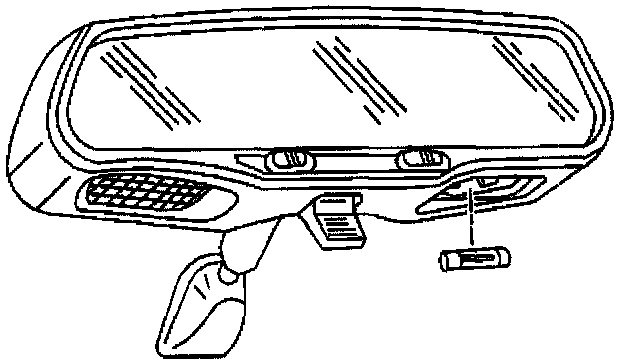

Rearview Mirror Lamp Replacement: Bulb - Removal Procedure:

2. Remove the bulb from the socket.

INSTALLATION PROCEDURE

Rearview Mirror Lamp Replacement: Bulb - Installation Procedure:

1. Install the bulb into the socket.

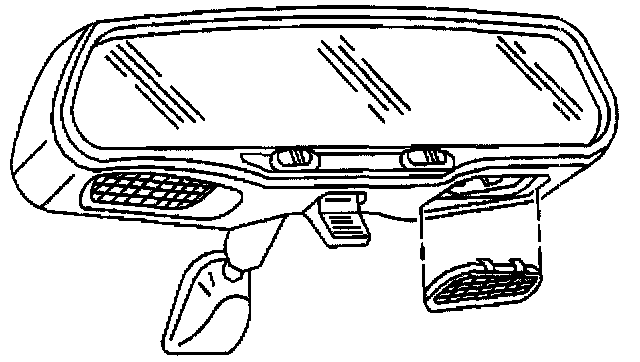

Rearview Mirror Lamp Replacement: Bulb - Installation Procedure:

2. Install the lamp lens to the mirror housing. Insert the forward edge of the lens (the edge nearest to the windshield) into place and push up the rear edge to snap in place.
