Folding Top Stay Pad Replacement

REMOVAL PROCEDURE

Folding Top Stay Pad Replacement: Removal Procedure:

1. Remove the folding top material.

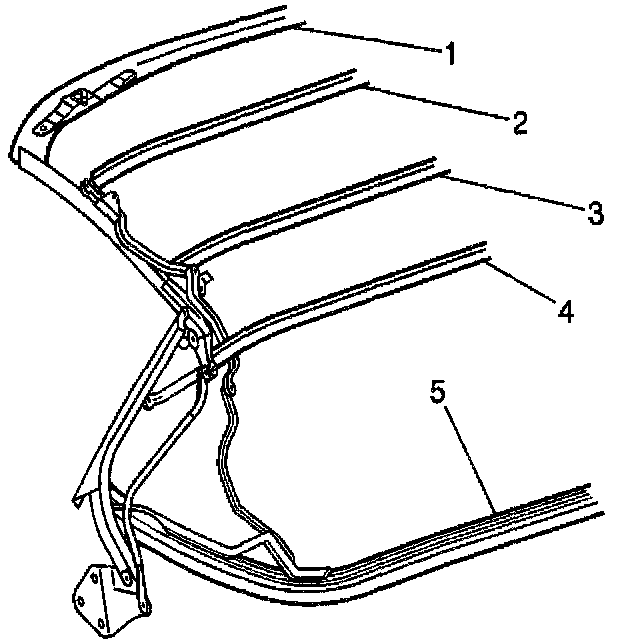

2. Remove the stay pad from the number 5 bow (5).
3. Cover the stowage compartment lid to protect the lid from damage.
4. Latch the top.
5. Remove the staples attaching the stay pad to the number 4, 3, 2, and 1 bows.
6. Remove the stay pad.

INSTALLATION PROCEDURE

Folding Top Stay Pad Replacement: Installation Procedure:

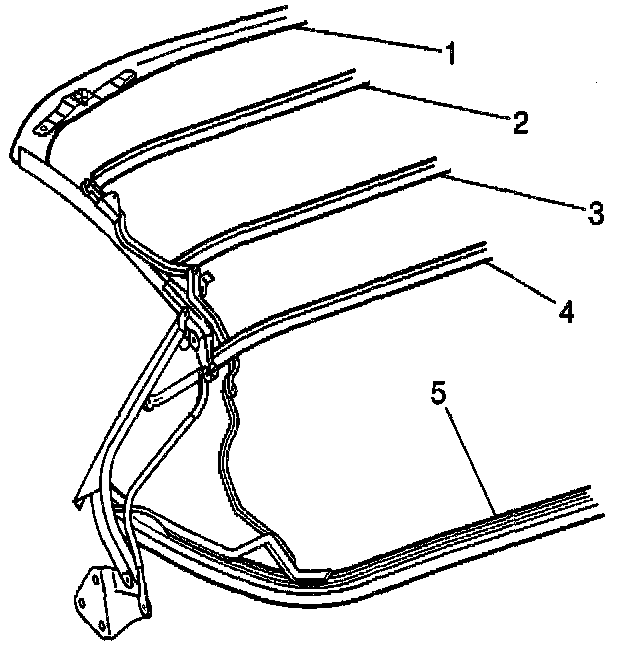

1. Install the stay pad to the number 1 bow (1).
2. Install the stay pad to the number 4 bow.
3. Install the stay pad to the number 2 and 3 bows.
4. Position the number 5 bow in the up position.
5. Install the stay pad to the number 5 bow.
6. Install the folding top material.
