Folding Top Stowage Compartment Lid Striker

REMOVAL PROCEDURE

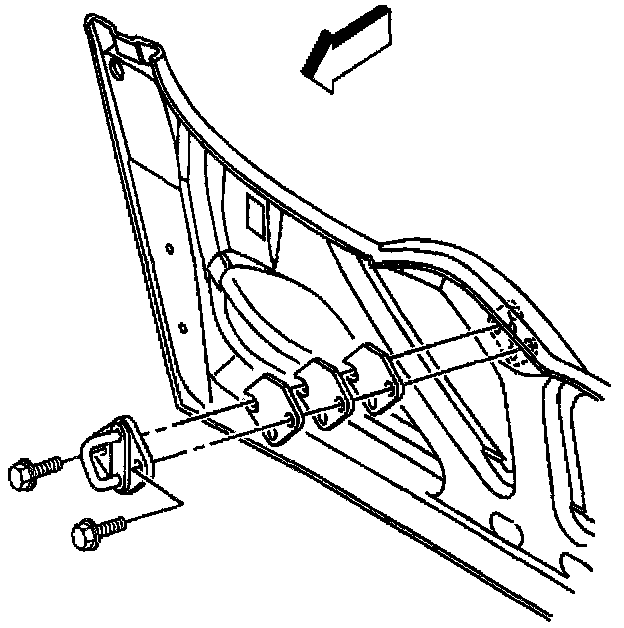

Folding Top Stowage Compartment Lid Striker: Removal Procedure:

1. Remove the bolts attaching the striker to the lid.
2. Remove the striker and shims.

INSTALLATION PROCEDURE

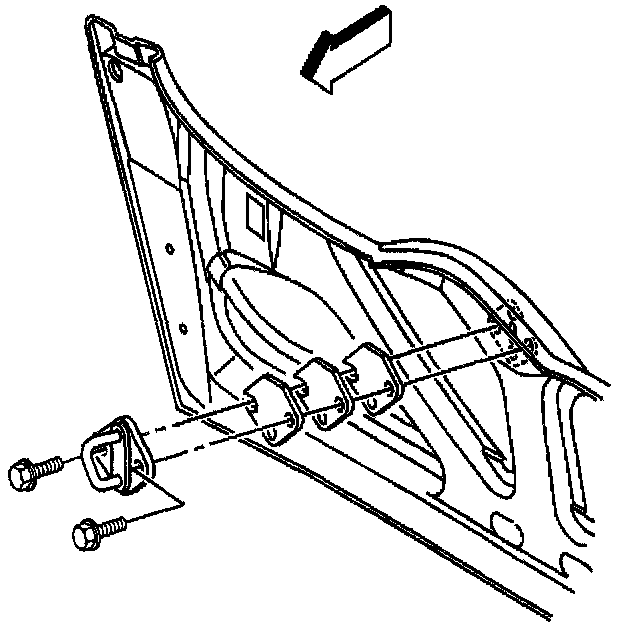

Folding Top Stowage Compartment Lid Striker: Installation Procedure:

1. Position the striker and shims to the lid with the arrow on the striker pointed downward.
2. Install the bolts attaching the striker.
^ Install the drivers side (net locating) hole bolt first.
^ Install the slotted hole bolt.

Tighten
Tighten the folding top stowage lid striker bolts to 10 N.m (89 lb In).
