Folding Top Stowage Compartment Lid Struts Replace
REMOVAL PROCEDUREFolding Top Stowage Compartment Lid Struts Replace: Removal Procedure:
1. Open the folding top stowage compartment lid.
Folding Top Stowage Compartment Lid Struts Replace: Removal Procedure:

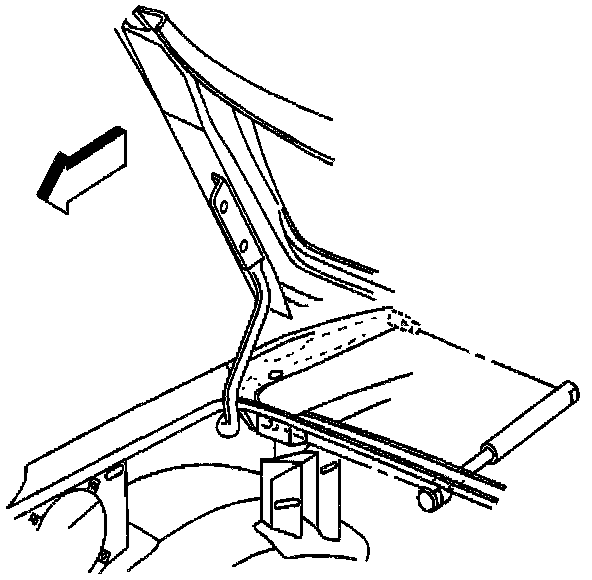

2. Remove the forward end of the strut from the hinge ball stud.
3. Close the folding top stowage compartment lid.
Folding Top Stowage Compartment Lid Struts Replace: Removal Procedure:

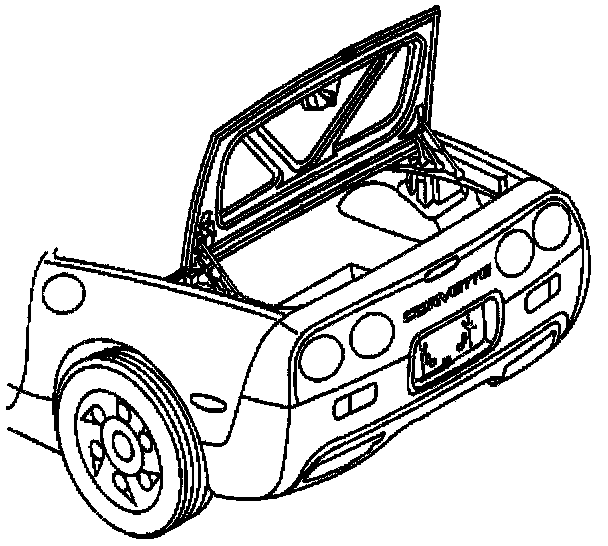

4. Open the rear compartment lid.
5. Remove the strut from the rear ball stud.
INSTALLATION PROCEDURE
Folding Top Stowage Compartment Lid Struts Replace: Installation Procedure:
1. Open the rear stowage compartment.
Folding Top Stowage Compartment Lid Struts Replace: Installation Procedure:
2. Position the rod end of the strut through the access hole between the quarter panel and the support.
3. Install the strut to the rear ball stud.
4. Close the rear compartment lid.
Folding Top Stowage Compartment Lid Struts Replace: Installation Procedure:
5. Open the folding top stowage compartment lid.
6. Install the rod end of the strut to the front of the hinge.
