Roof Lift Off Panel Front Latch Handle Striker
REMOVAL PROCEDURERoof Lift Off Panel Front Latch Handle Striker: Removal Procedure:

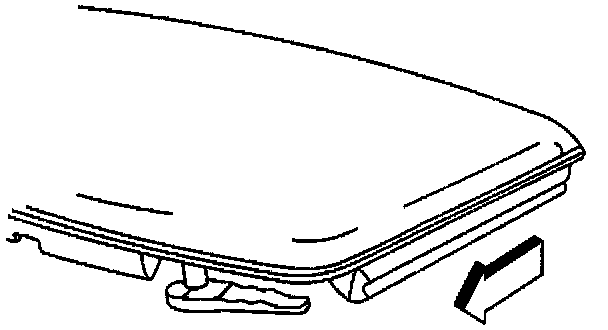

1. Remove the roof panel.
Roof Lift Off Panel Front Latch Handle Striker: Removal Procedure:

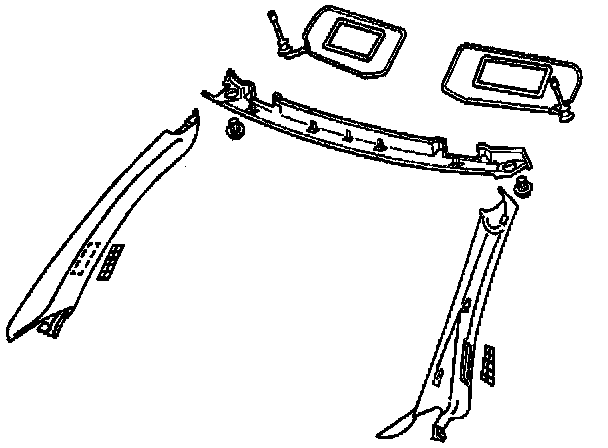

2. Remove the sunshade.
3. Remove the side and upper garnish moldings.
Roof Lift Off Panel Front Latch Handle Striker: Removal Procedure:
4. Mark the location of the striker to aid in installation.
5. Remove the bolts attaching the striker.
6. Remove the striker.
INSTALLATION PROCEDURE
Roof Lift Off Panel Front Latch Handle Striker: Installation Procedure:
1. Align the striker with the marks made before removal.
2. Install the striker attaching bolts.
Tighten
Tighten the roof front latch handle striker bolts to 10 N.m (89 lb in).
Roof Lift Off Panel Front Latch Handle Striker: Installation Procedure:

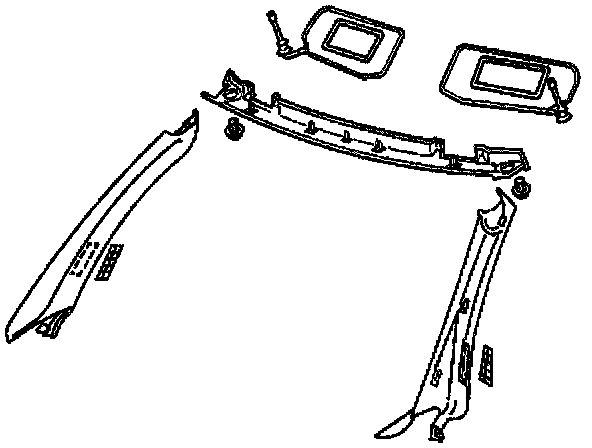

3. Install the upper and side garnish moldings.
4. Install the sunshade.
Roof Lift Off Panel Front Latch Handle Striker: Installation Procedure:
5. Install the roof panel.
6. Adjust if necessary. Refer to Roof Lift Off Panel Adjustment.
