Roof Lift Off Panel Headliner Replacement

REMOVAL PROCEDURE

Roof Lift Off Panel Headliner Replacement: Removal Procedure:

1. Remove the roof panel.

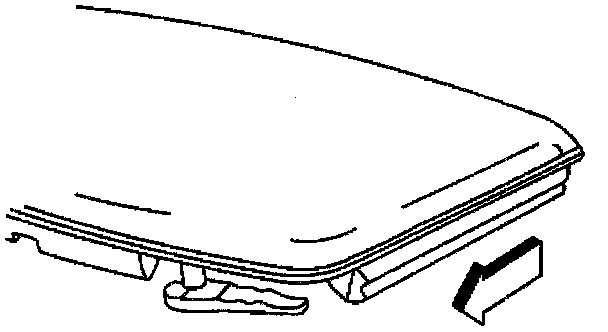

Roof Lift Of Panel Headliner Replacement: Removal Procedure:

2. Remove the headliner from the roof panel by peeling away the glued areas of the headliner from the roof panel.
3. Remove any adhesive residue from the roof panel headliner contact area.

INSTALLATION PROCEDURE

Roof Lift Of Panel Headliner Replacement: Removal Procedure:

1. Remove the release paper from the adhesive on the headliner contact areas.
2. Install the headliner to the roof lift off panel. Press on the adhesive contact areas to set the adhesive.
3. Using a spatula tuck the headliner between the roof panel and the roof frame.

Roof Lift Of Panel Headliner Replacement: Installation Procedure:

4. Install the roof lift off panel.
