Roof Lift Off Panel Rear Latch Striker Replacement
REMOVAL PROCEDURERoof Lift Off Panel Rear Latch Striker Replacement: Removal Procedure:
1. Remove the roof lift off panel.
Roof Lift Off Panel Rear Latch Striker Replacement: Removal Procedure:
2. Remove the roof bow center interior trim panel.
Roof Lift Off Panel Rear Latch Striker Replacement: Removal Procedure:

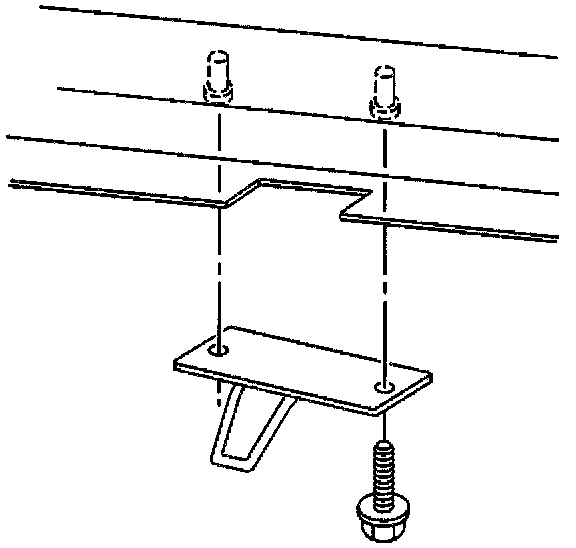

3. Mark the location of the striker.
4. Remove the bolts attaching the striker.
5. Remove the striker.
INSTALLATION PROCEDURE
Roof Lift Off Panel Rear Latch Striker Replacement: Installation Procedure:
1. Position the striker to the marks made before removal.
2. Install the striker attaching bolts.
Tighten
Tighten the root rear latch striker bolts to 10 N.m (89 lb in).
Roof Lift Off Panel Rear Latch Striker Replacement: Installation Procedure:
3. Install the roof bow center interior trim panel.
Roof Lift Off Panel Rear Latch Striker Replacement: Installation Procedure:
4. Install the roof lift off panel.
