Seat Adjuster Motor Replacement - Front
REMOVAL PROCEDUREThe power seat motors may only be available as an assembly with the adjusters. To replace the assembly follow the procedure to remove the adjuster.
Seat Adjuster Motor Replacement: Front - Removal Procedure:

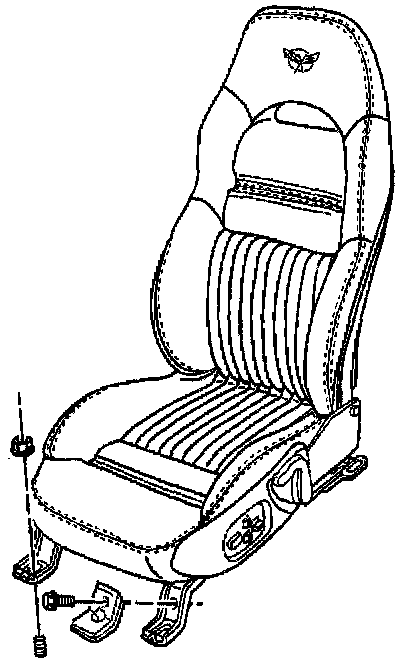

1. Remove the seat.
Seat Adjuster Motor Replacement: Front - Removal Procedure:

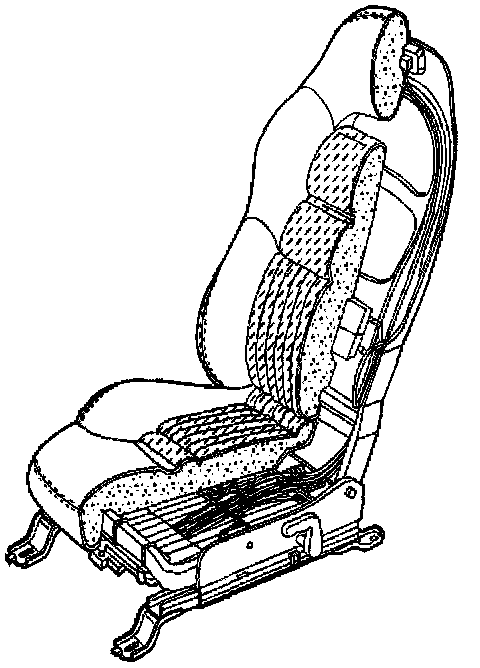

2. Remove or reposition the lumbar pump, if equipped.
^ First design (attached with a rivet to the front motor bracket), remove the pump.
^ Second design (attached with tie straps to the torque tube), remove the tie straps and reposition the pump.
3. Slide the front motor bracket to one side.
4. Remove that drive cable.
5. Slide the bracket off that adjuster transmission.
6. Slide the bracket in the opposite direction and remove the drive cable and the bracket from that adjuster transmission.
7. Position the bracket outward.
8. Disconnect the motor electrical harness connector.
9. Remove the front motor.
10. Mark the location and position of the rear motors to aid in installation.
11. Remove the motors with harness.
INSTALLATION PROCEDURE
Seat Adjuster Motor Replacement: Front - Installation Procedure:
1. Position the motors and harness to the seat frame.
2. Install the cables to the two rear motors and to the adjuster.
3. Install the screws mounting the rear motors.
4. Install the front motor (forward and back motor) to the bracket.
5. Connect the harness electrical connector.
6. Position the bracket onto one adjuster transmission.
7. Insert the drive cable into the motor and then into the transmission. It may be necessary to turn the cable to get the cable to slide into the transmission.
8. Repeat steps 6 and 7 on the opposite side.
9. Bend the bracket ends outward enough to prevent the bracket from sliding off the transmissions.
Seat Adjuster Motor Replacement: Front - Installation Procedure:

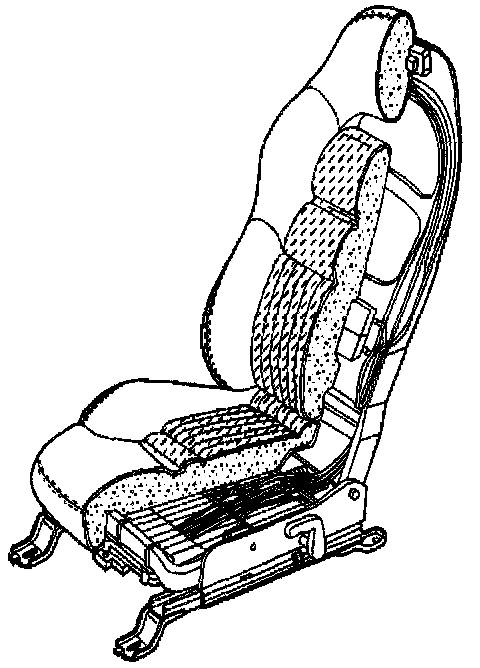

10. Install the lumbar pump.
^ Install and rivet the first design pump to the seat front motor bracket.
^ Tie strap the second design pump to the torque tube.

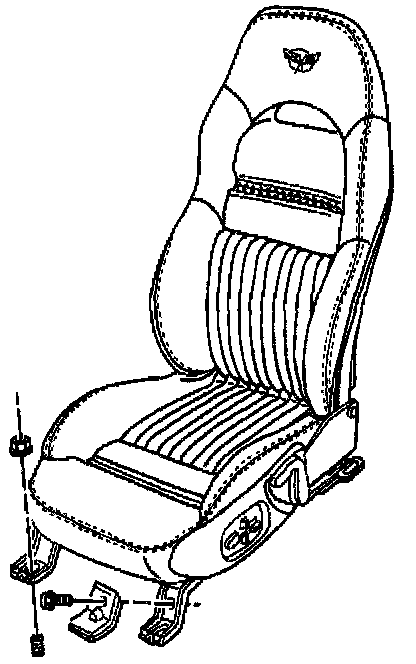

11. Install the seat.
