Seat Back Recliner Handle Replacement - Front
REMOVAL PROCEDURESeat Back Recliner Handle Replacement: Front - Removal Procedure:

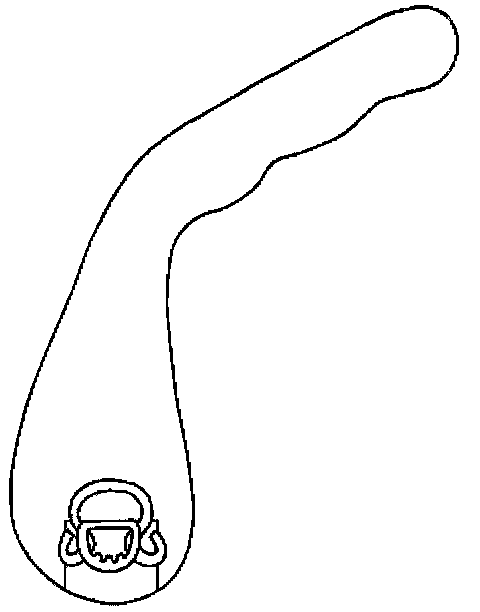

1. With a suitable blunt ended tool inserted between the cushion and the handle push the handle retaining spring clip down.
2. Pull the handle from the shaft.
INSTALLATION PROCEDURE
Seat Back Recliner Handle Replacement: Front - Installation Procedure:
1. Position the handle retaining spring clip into the lock position.
2. Snap the handle onto the reclining mechanism shaft.
