Seat Side Bolster Bladder Replacement, Front
REMOVAL PROCEDUREThe first design side bolster bladders are attached to paddles riveted to the seatback. The bladders are serviced separately from the lumbar bladders.
Seat Side Bolster Bladder Replacement: Front (Paddle First Design) - Removal Procedure:

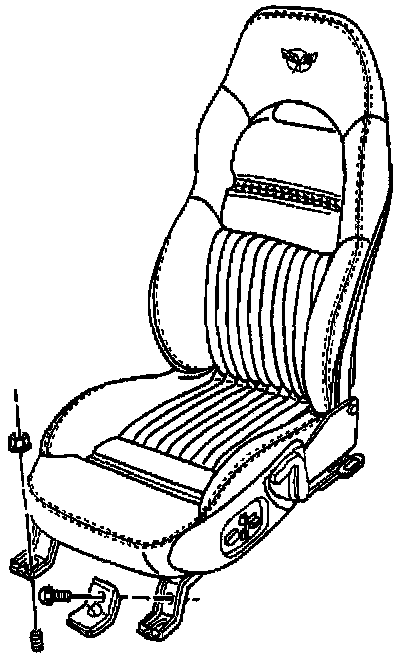

1. Remove the seat.
Seat Side Bolster Bladder Relacement-Front (Paddle First Design) - Removal Procedure:

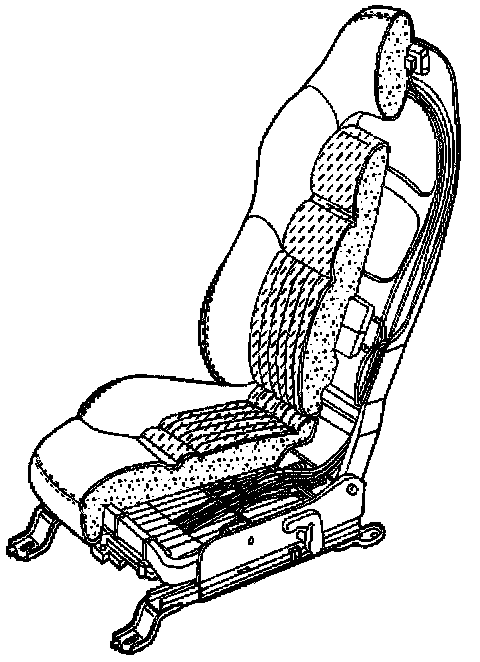

2. Remove the seatback insert pillow, cover and foam. Seat Back Cover and Pad Replacement - Front (Sport Seat).
Seat Side Bolster Bladder Relacement-Front (Paddle First Design) - Removal Procedure:

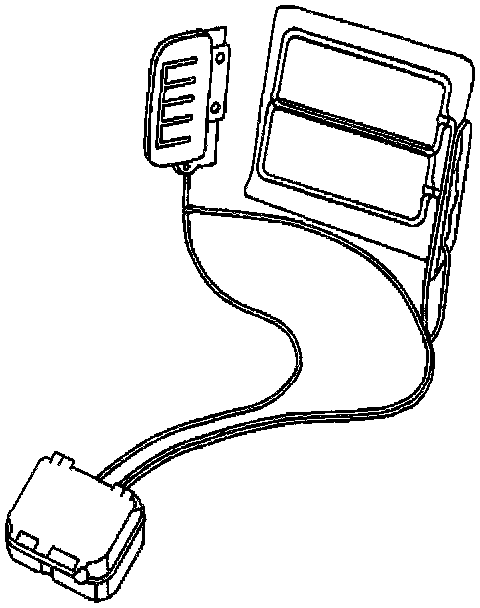

3. Remove the hose connector from the pump.
Seat Side Bolster Bladder Relacement-Front (Paddle First Design) - Removal Procedure:

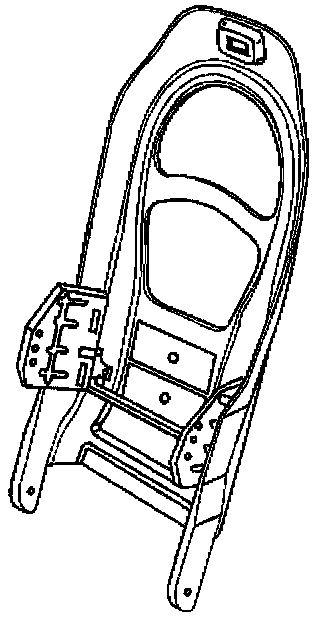

4. Drill out the rivets attaching the paddle to the seatback frame.
Seat Side Bolster Bladder Relacement-Front (Paddle First Design) - Removal Procedure:

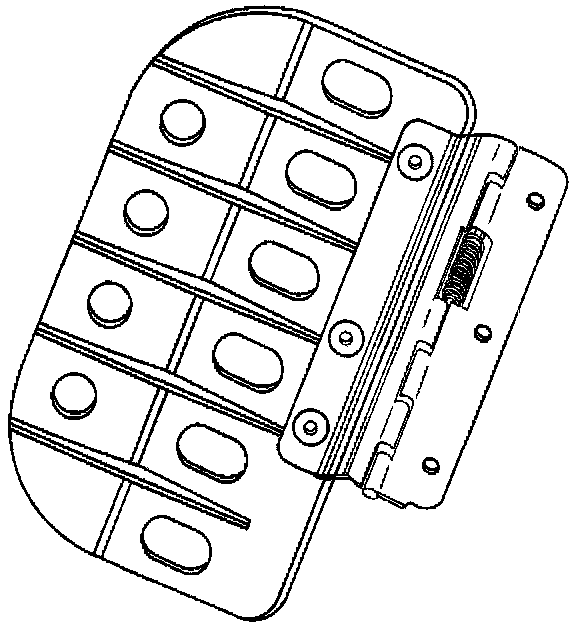

5. Remove the paddle with bladder.
INSTALLATION PROCEDURE
Seat Side Bolster Bladder Relacement-Front (Paddle First Design) - Installation Procedure:

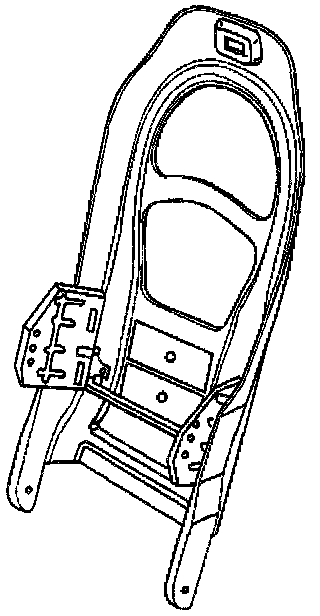

1. Rivet the paddle with bladder to the seatback frame.
Seat Side Bolster Bladder Relacement-Front (Paddle First Design) - Installation Procedure:
2. Install the hose connector to the pump.

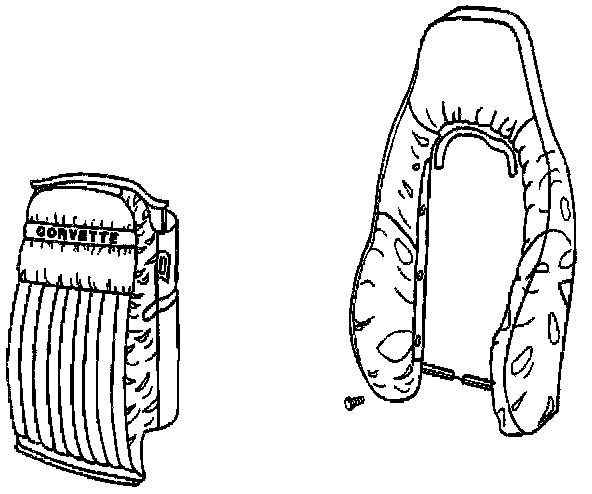

3. Install the seatback foam, cover, and pillow insert.Seat Back Cover and Pad Replacement - Front (Sport Seat).
Seat Side Bolster Bladder Relacement-Front (Paddle First Design) - Installation Procedure:
4. Install the seat.
