Seat Switch Replacement - Power

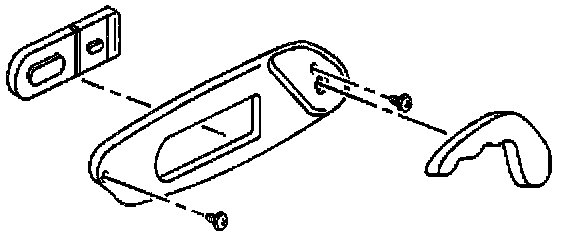

REMOVAL PROCEDURESeat Switch Replacement: Power - Removal Procedure:

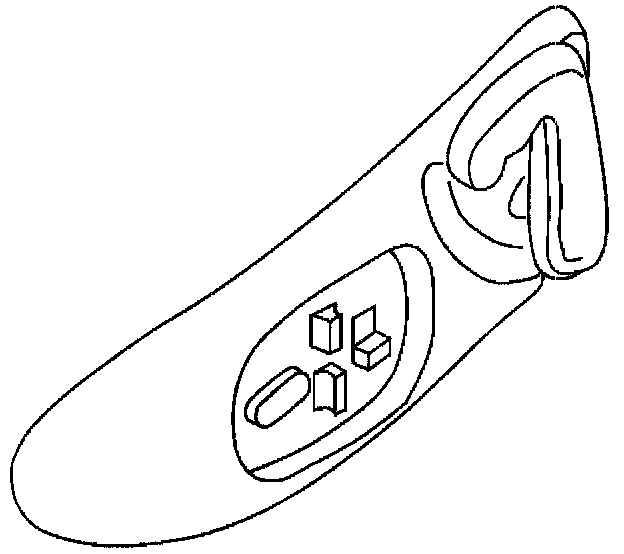

1. Remove the seatback recliner handle.
Seat Switch Replacement: Power - Removal Procedure:
2. Remove the screws attaching the seat side trim panel.
Seat Switch Replacement: Power - Removal Procedure:
3. Push in on the side of the seat cushion and visually determine if the trim is: first design (no upper attaching push-in barrel post) or second design (has upper push-in attaching barrel post).

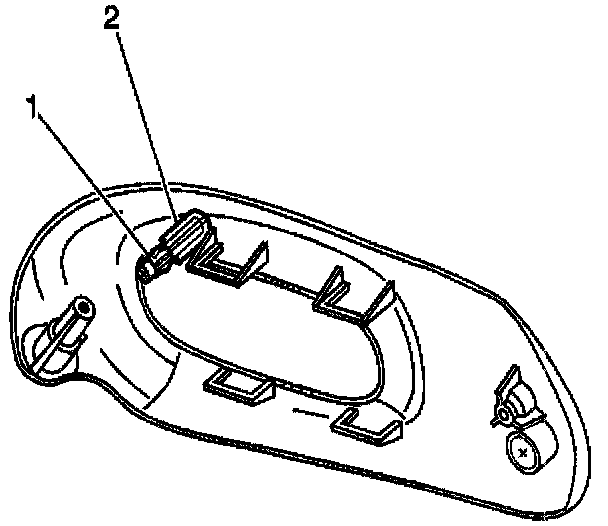

^ With the push-in barrel post (2) (second design).
Rock the panel side to side working the barrel post clip (1) out of the seat frame.
^ With out the push-in barrel (first design). Reposition panel away from the seat.
Seat Switch Replacement: Power - Removal Procedure:
4. Disconnect the switch harness.
5. Remove the switch.
INSTALLATION PROCEDURE
Seat Switch Replacement: Power - Installation Procedure:
1. Install the switch to the side trim panel.
Seat Switch Replacement: Power - Installation Procedure:
2. Install a new barrel clip (1) to the trim panel upper barrel post (2 (second design).
3. Connect the switch harness.
Seat Switch Replacement: Power - Installation Procedure:
4. Install the seat side trim panel.
^ Push the barrel post with clip through the hole in the seat cover and into the seat frame (second design).
^ Install the front and rear trim panel attaching screws.
Seat Switch Replacement: Power - Installation Procedure:
5. Install the seatback recliner handle.
