Tow Hook Replacement, Front Export

REMOVAL PROCEDURE

Tow Hook Replacement: Front Export - Removal Procedure:

1. Remove the front fascia.

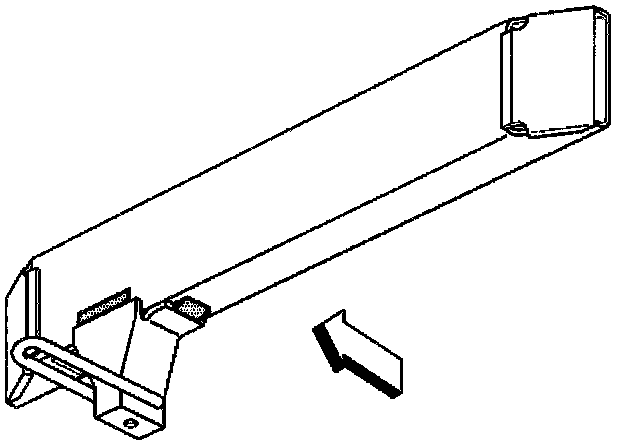

2. Cut through the welds attaching the tow hook to the impact bar.
3. Remove the tow hook.

INSTALLATION PROCEDURE

Tow Hook Replacement: Front Export - Installation Procedure:

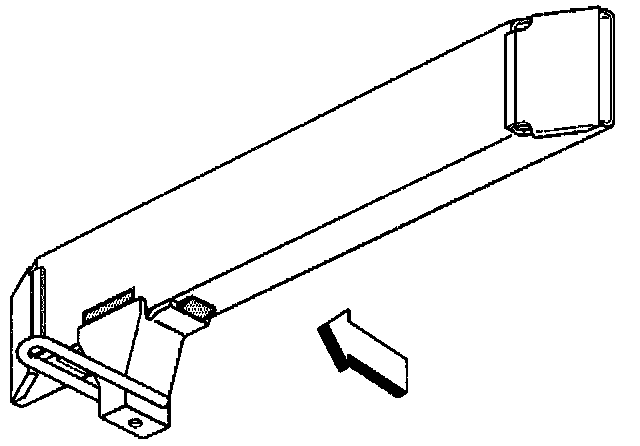

1. Position the tow hook to the passenger side of the impact bar. The near edge of the tow hood should be 325 mm (13 in) from the side rail.
2. Mig Weld, with 50 mm (2 in) long welds, the hook assembly to the impact bar in 4 places: front, rear, inboard side, and outboard side.
3. Clean and prepare all welded surfaces.
4. Apply an approved anti-corrosion primer. Refer to GM P/N 4901 MD Refinish Manual.
5. Install the front fascia.
