Engine Control Module
Engine Control Module

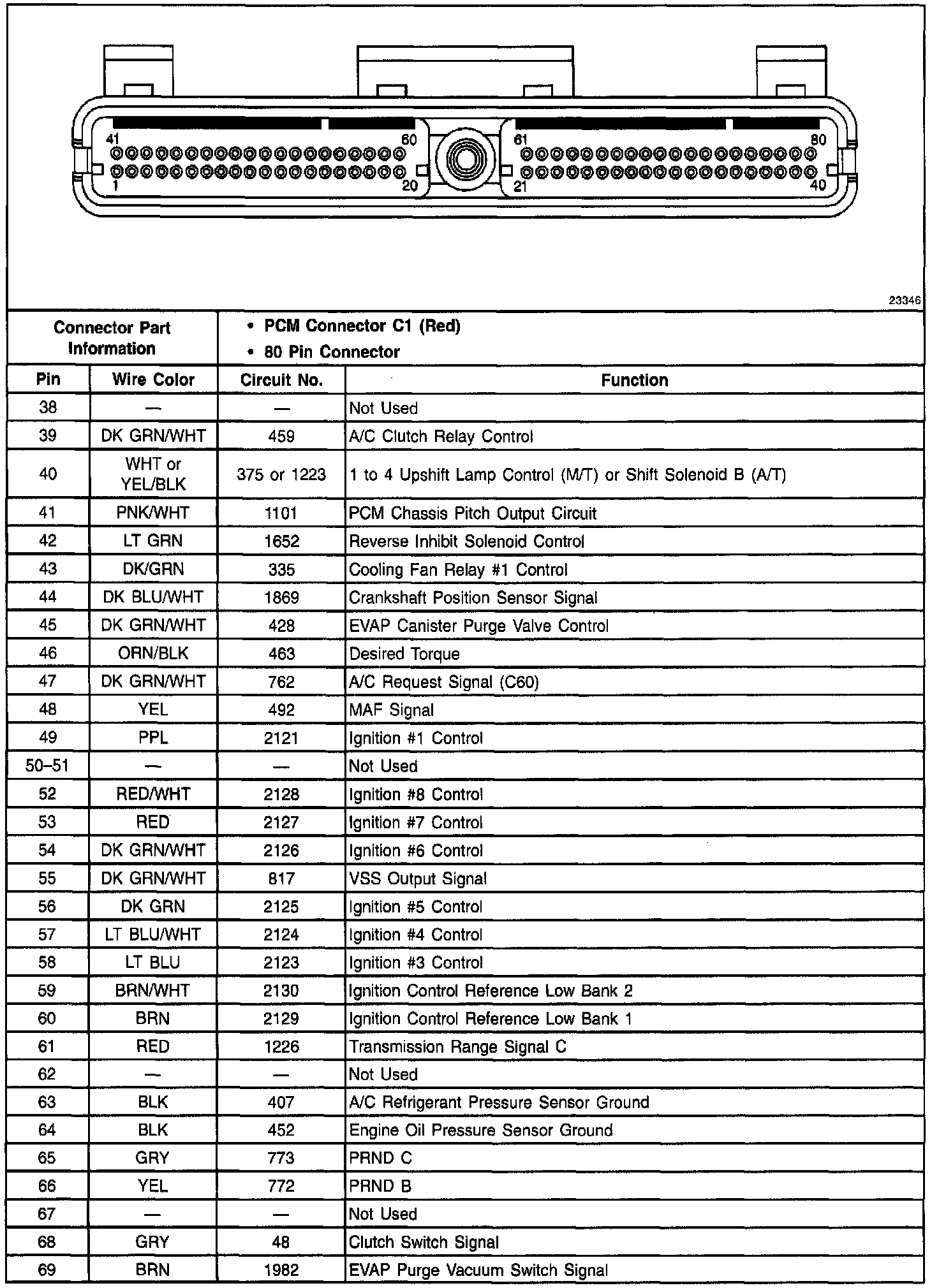

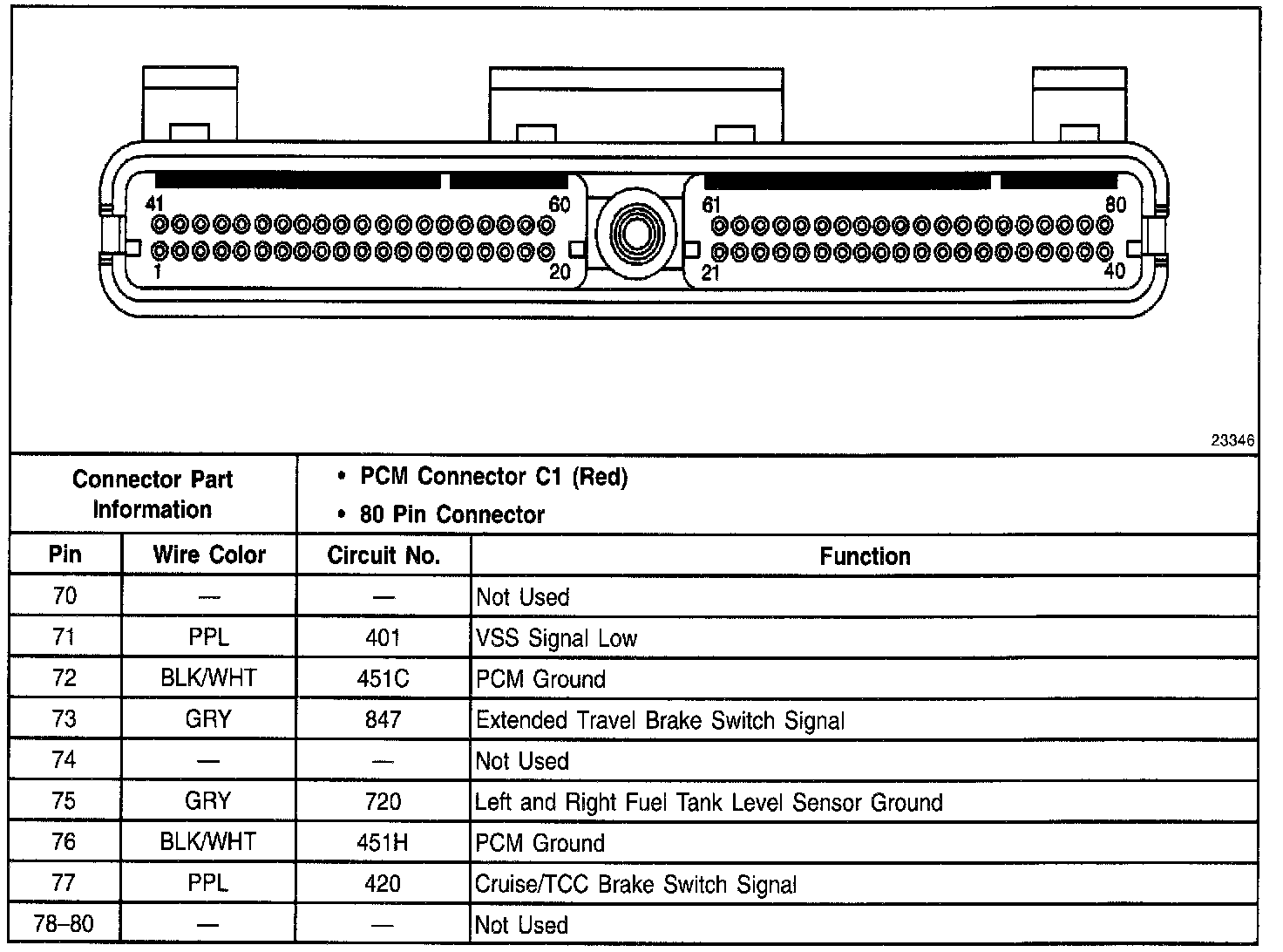

PCM Connector C1 (Red):
PCM Connector C1 (Red):
PCM Connector C1 (Red):

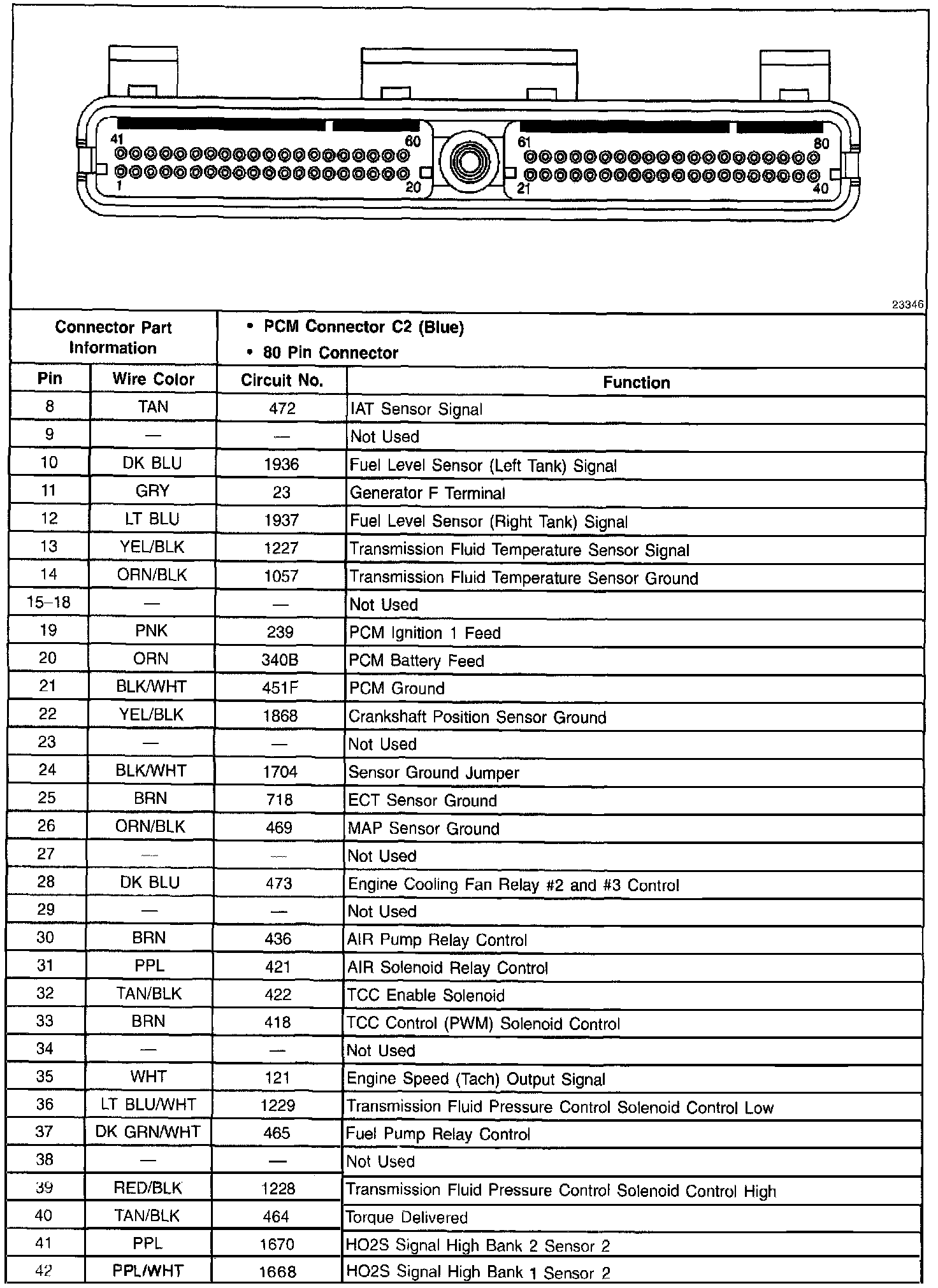

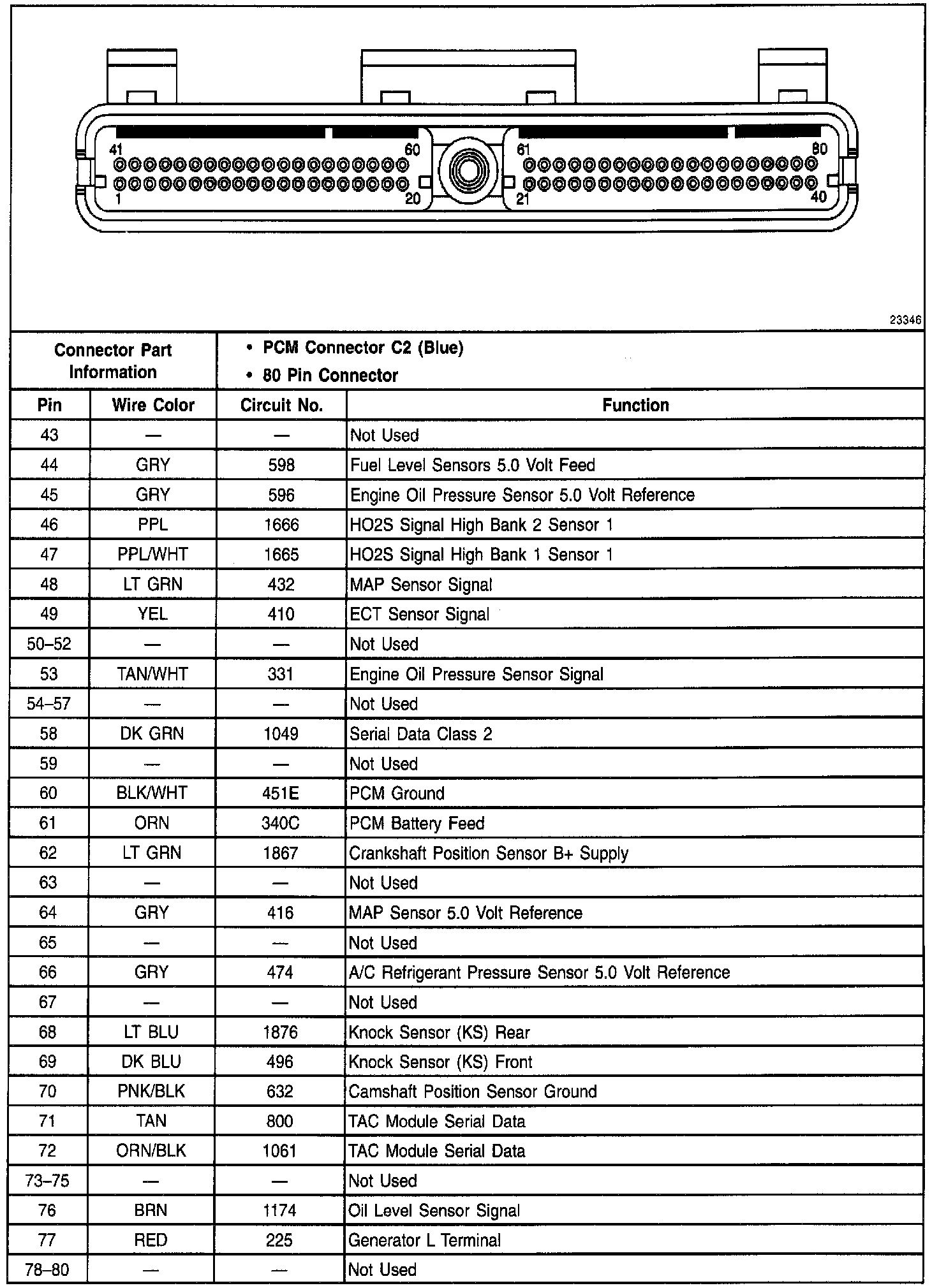

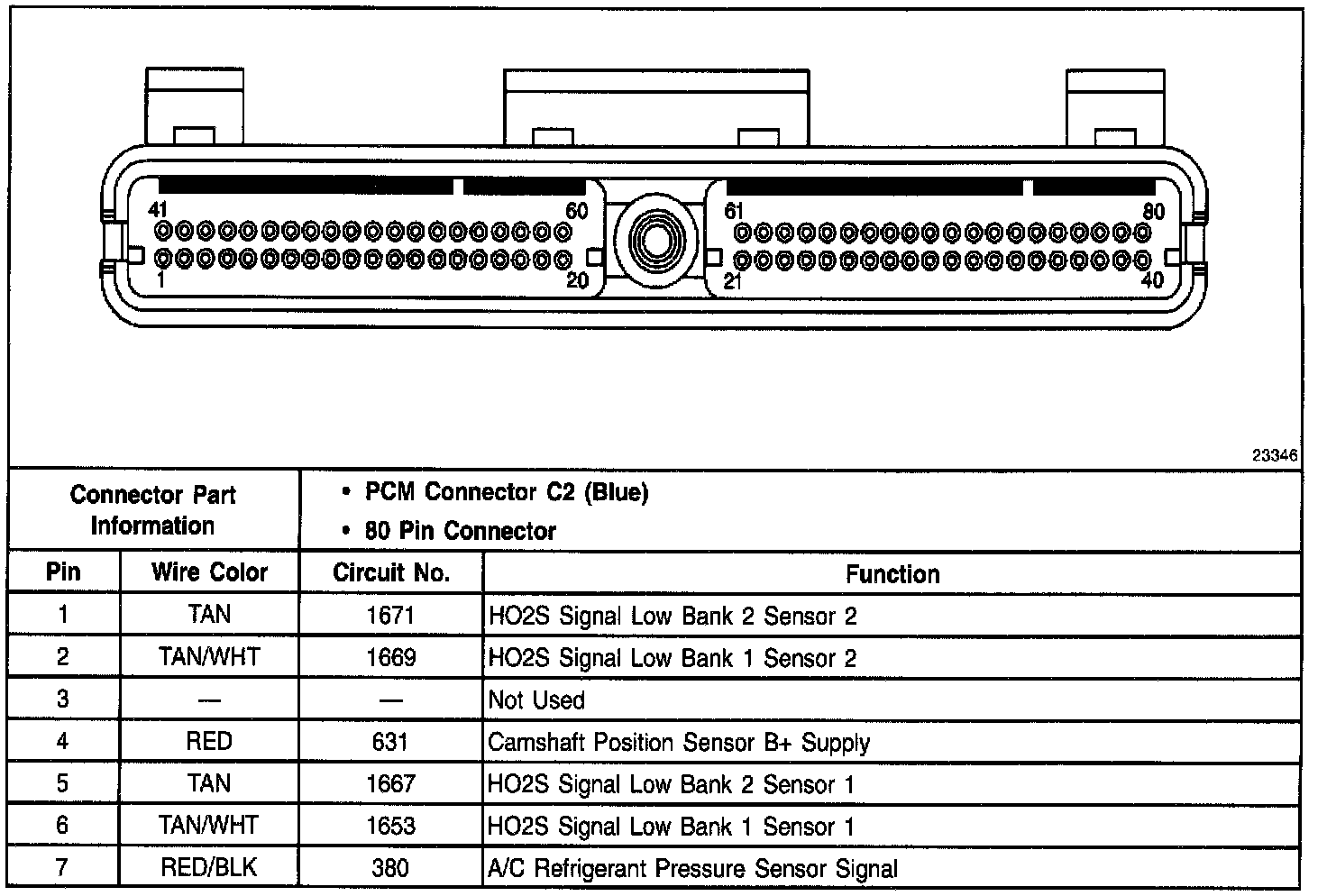

PCM Connector C2 (Blue):
PCM Connector C2 (Blue):
PCM Connector C2 (Blue):
