Headlamp Control Module

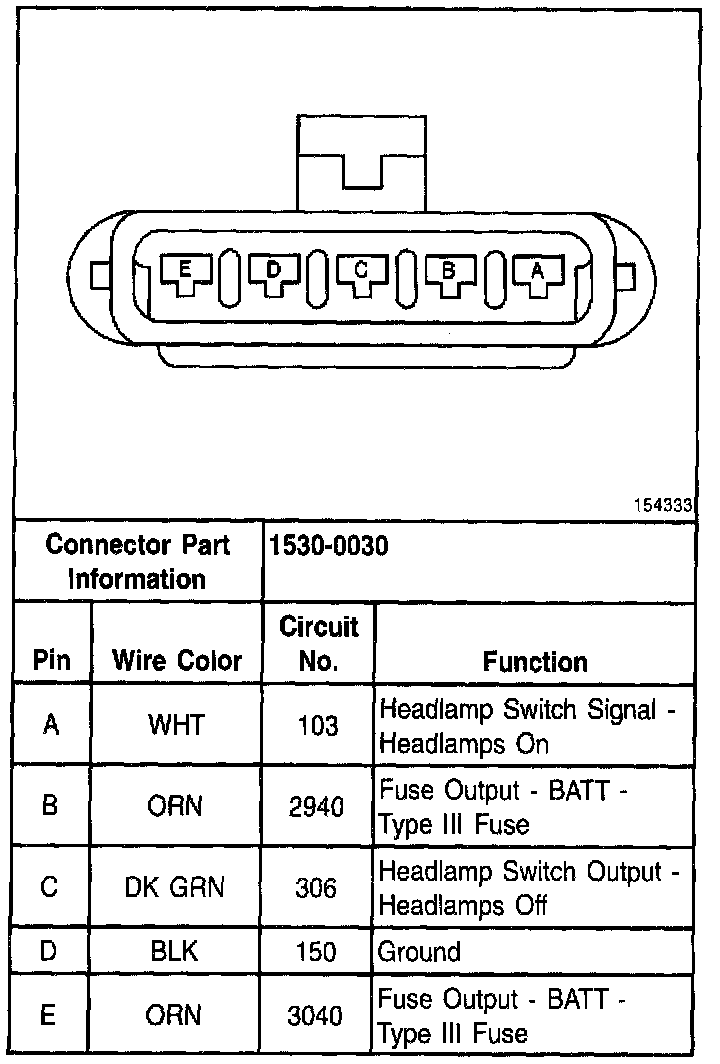

Headlamp Opening Door Actuator Control Module - C2:

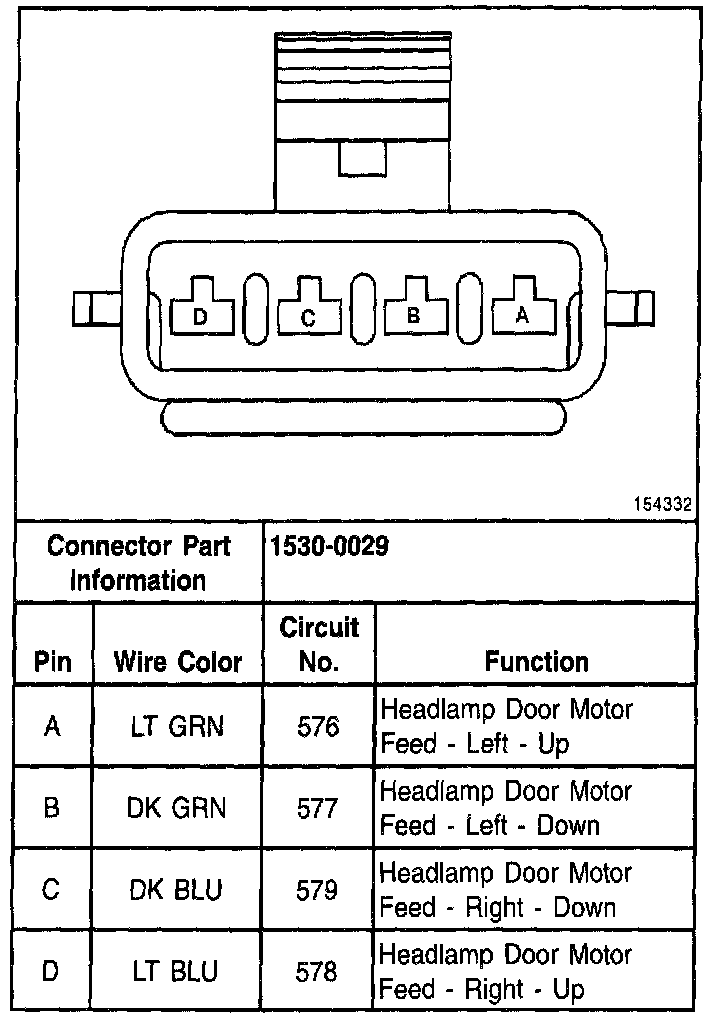

Headlamp Opening Door Actuator Control Module - C1:
