Idle Speed/Throttle Actuator - Electronic
Idle Speed/Throttle Actuator - Electronic

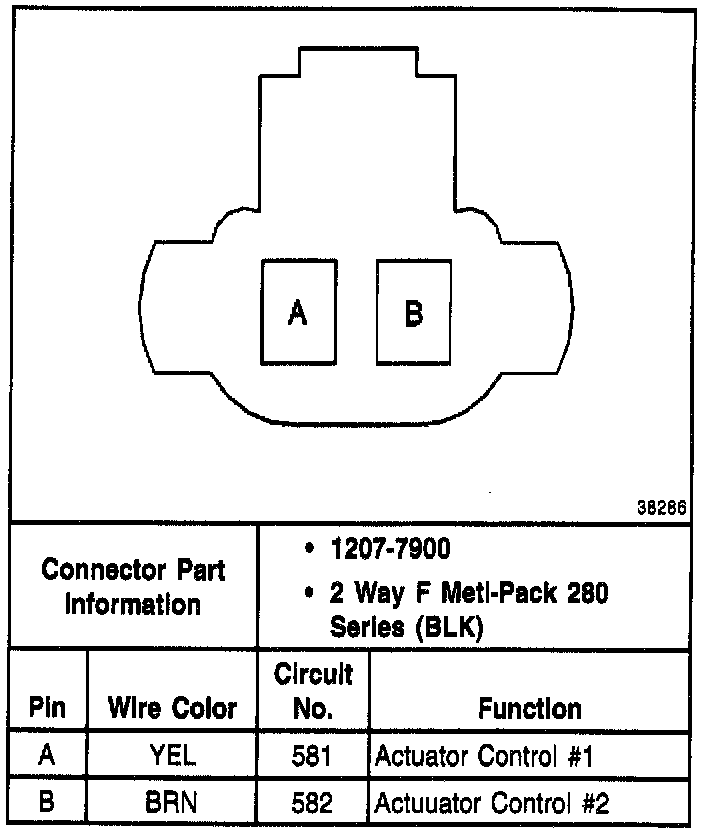

Throttle Actuator Control (TAC) Motor:
