Parking Lamp
Parking Lamp

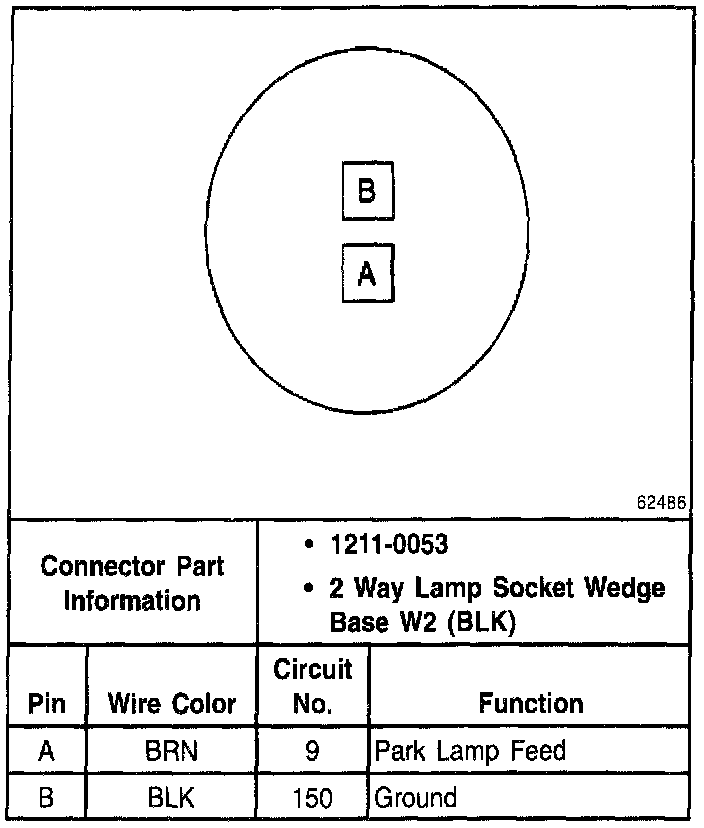

LH Park Lamp:
RF Park And Turn Signal Lamp:

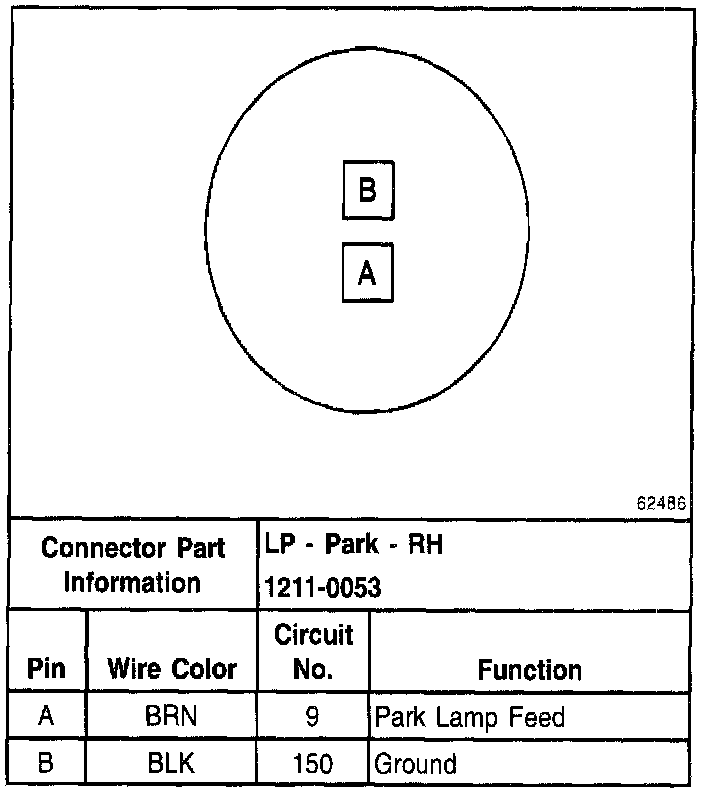

RH Park Lamp:
LF Park And Turn Signal Lamp:
