Home >> Chevrolet >> 1998 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module >> C1

C1

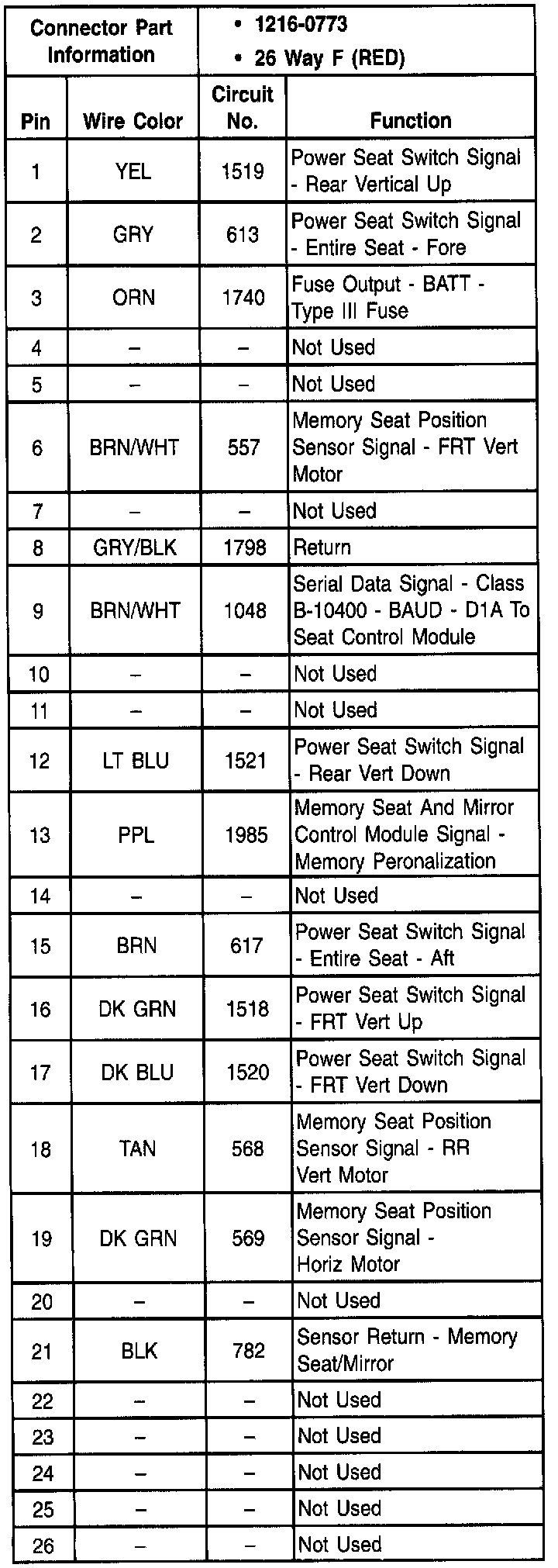

Seat Control Module (SCM): C1:
