ABS\TCS Schematics (Front Mounted EBTCM\Bpmv)
ABS\TCS Schematics (Front Mounted EBTCM\Bpmv)

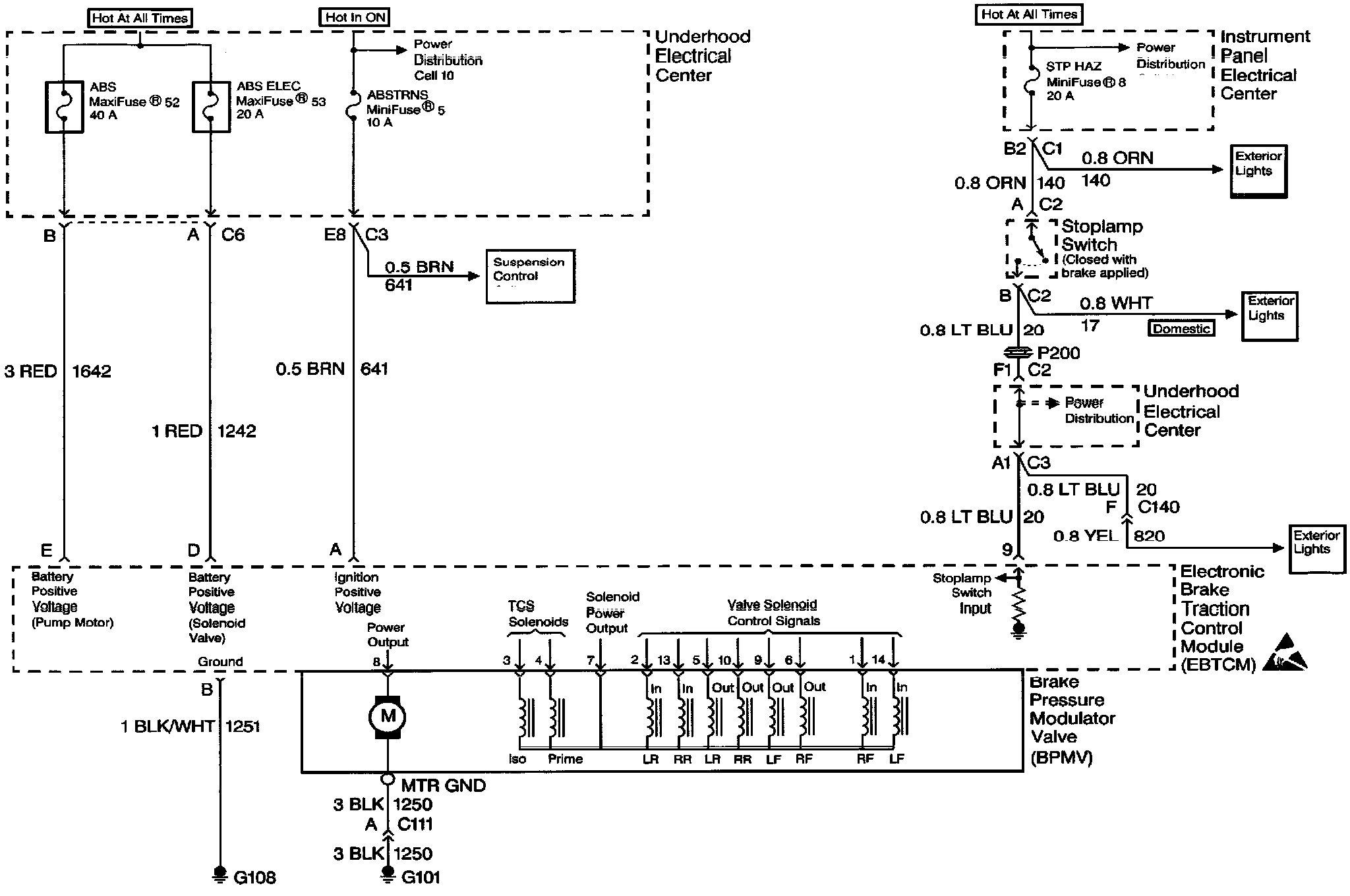

Power And Ground:

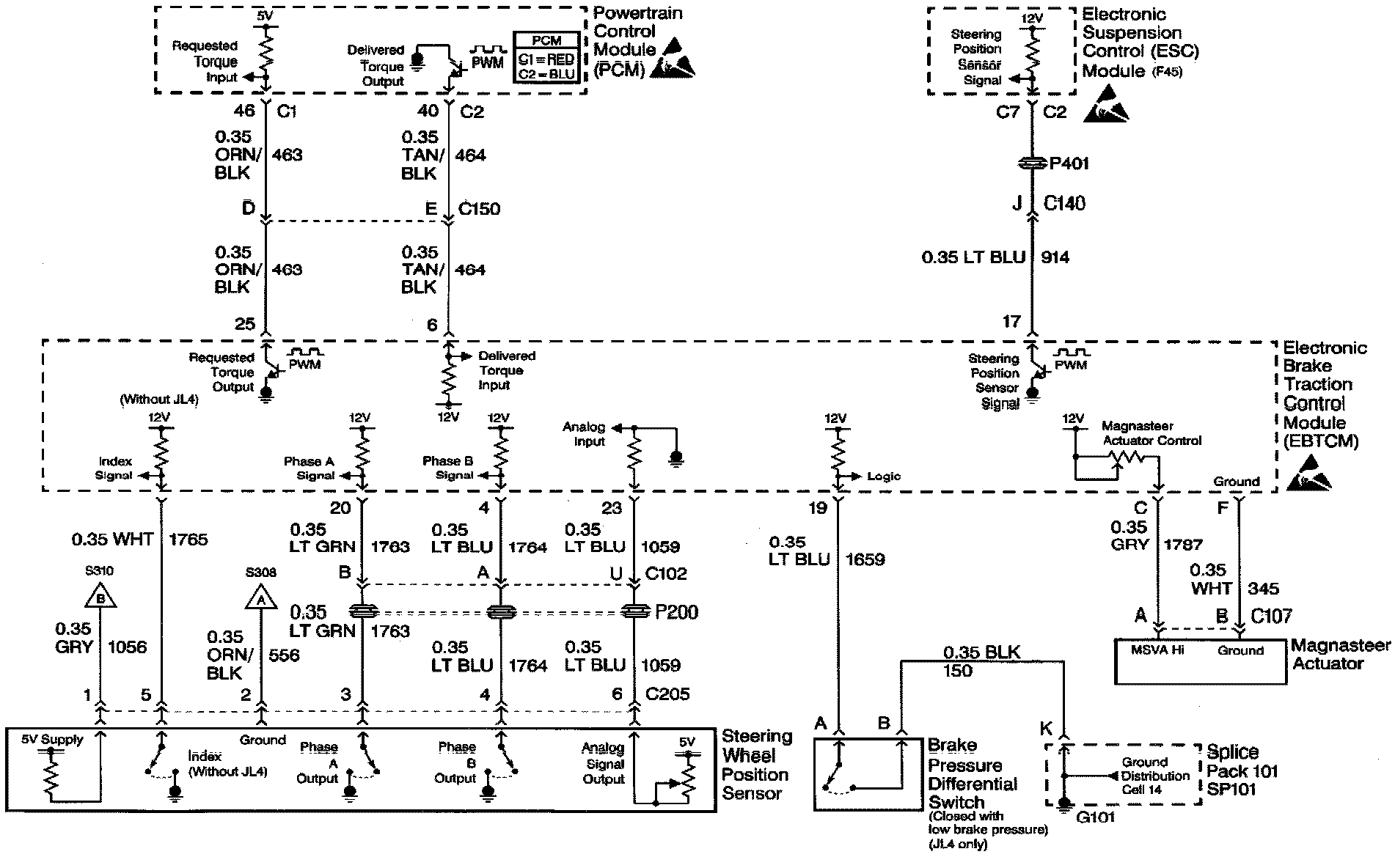

Magnasteer System:

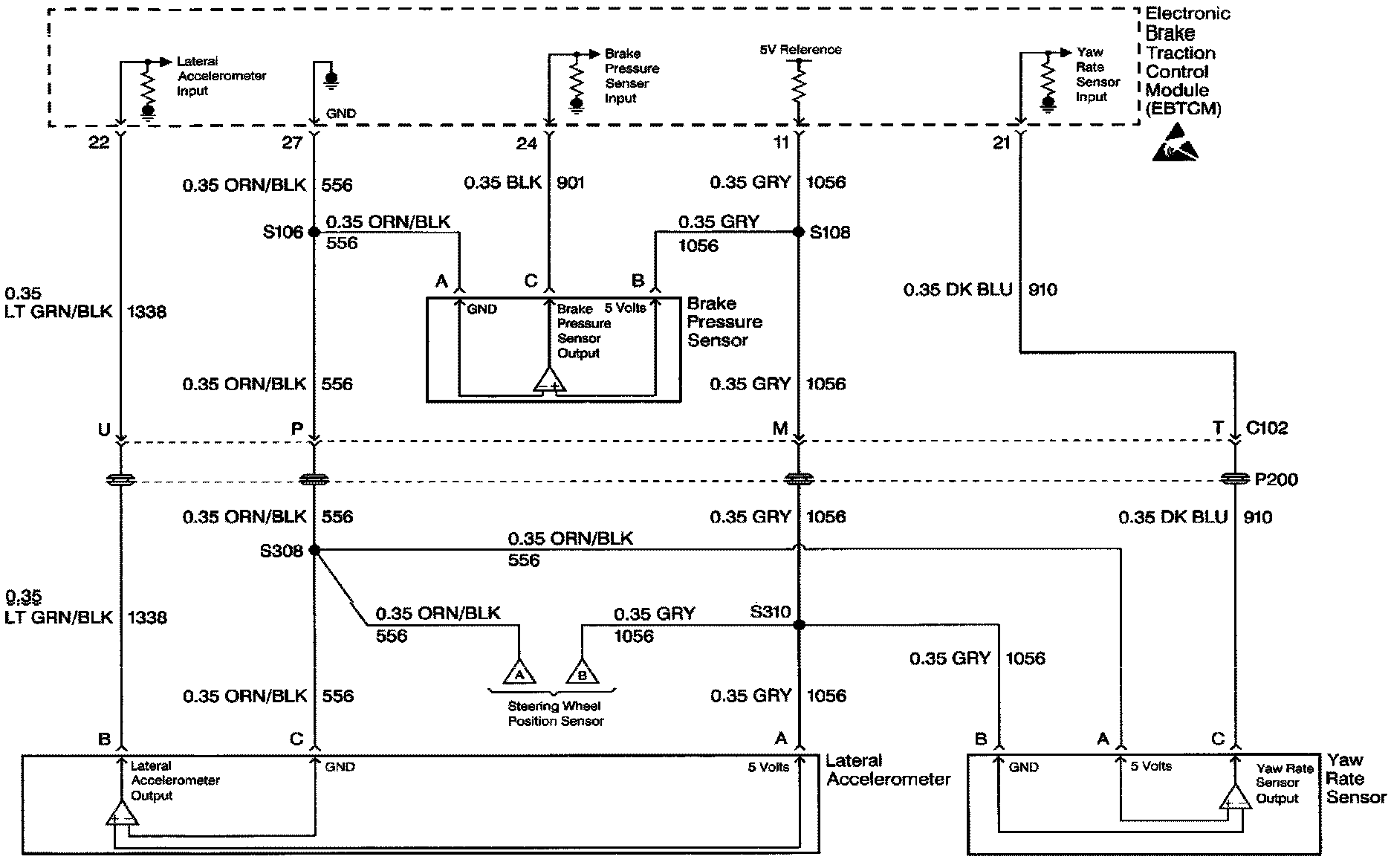

Miscellaneous Sensor Inputs:
Data Link Connector (DLC):
Wheel Speed Sensors:
