ABS\TCS Schematics (Rear Mounted EBTCM\Bpmv)
Power And Ground:

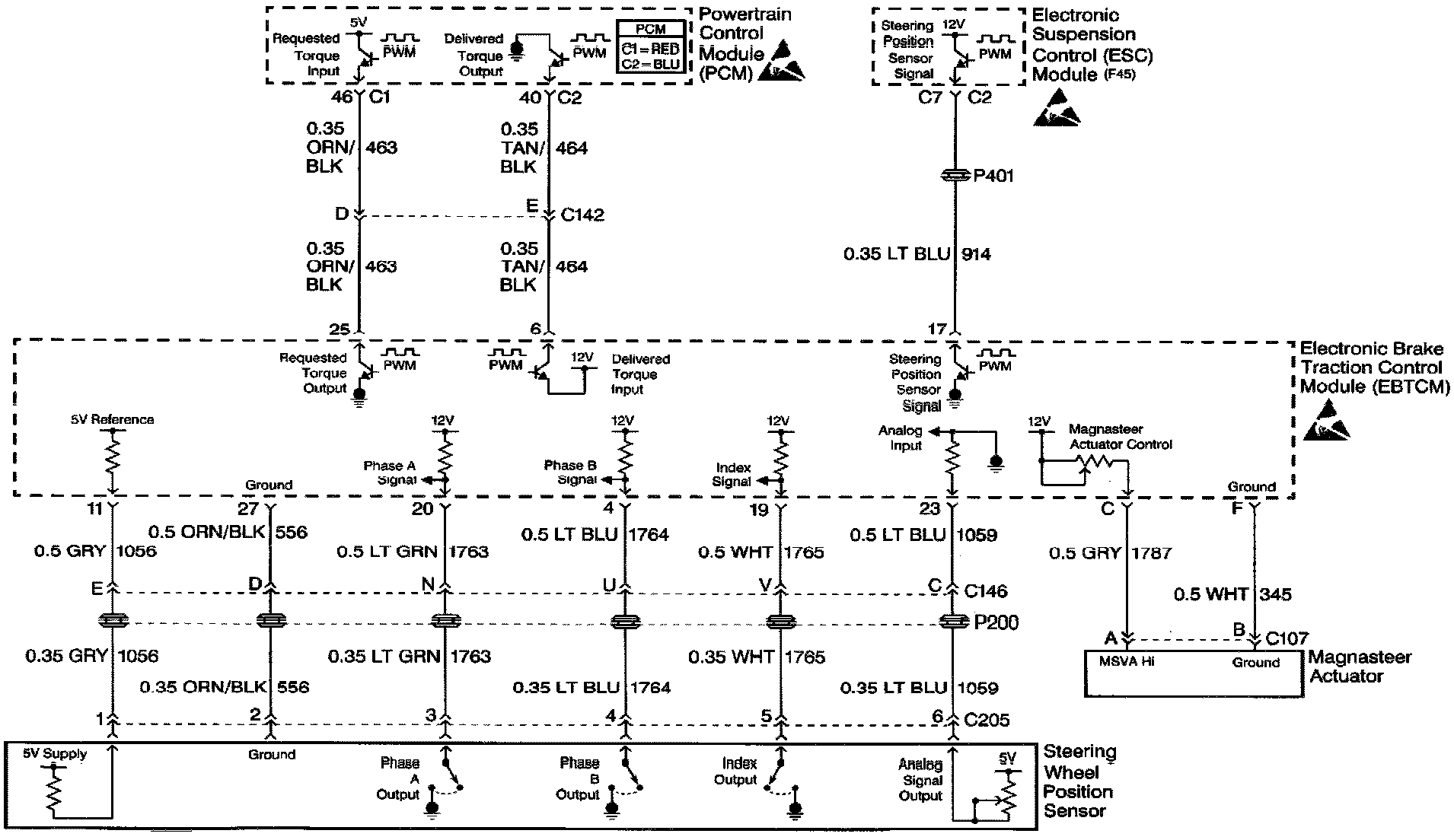

Magnasteer System:

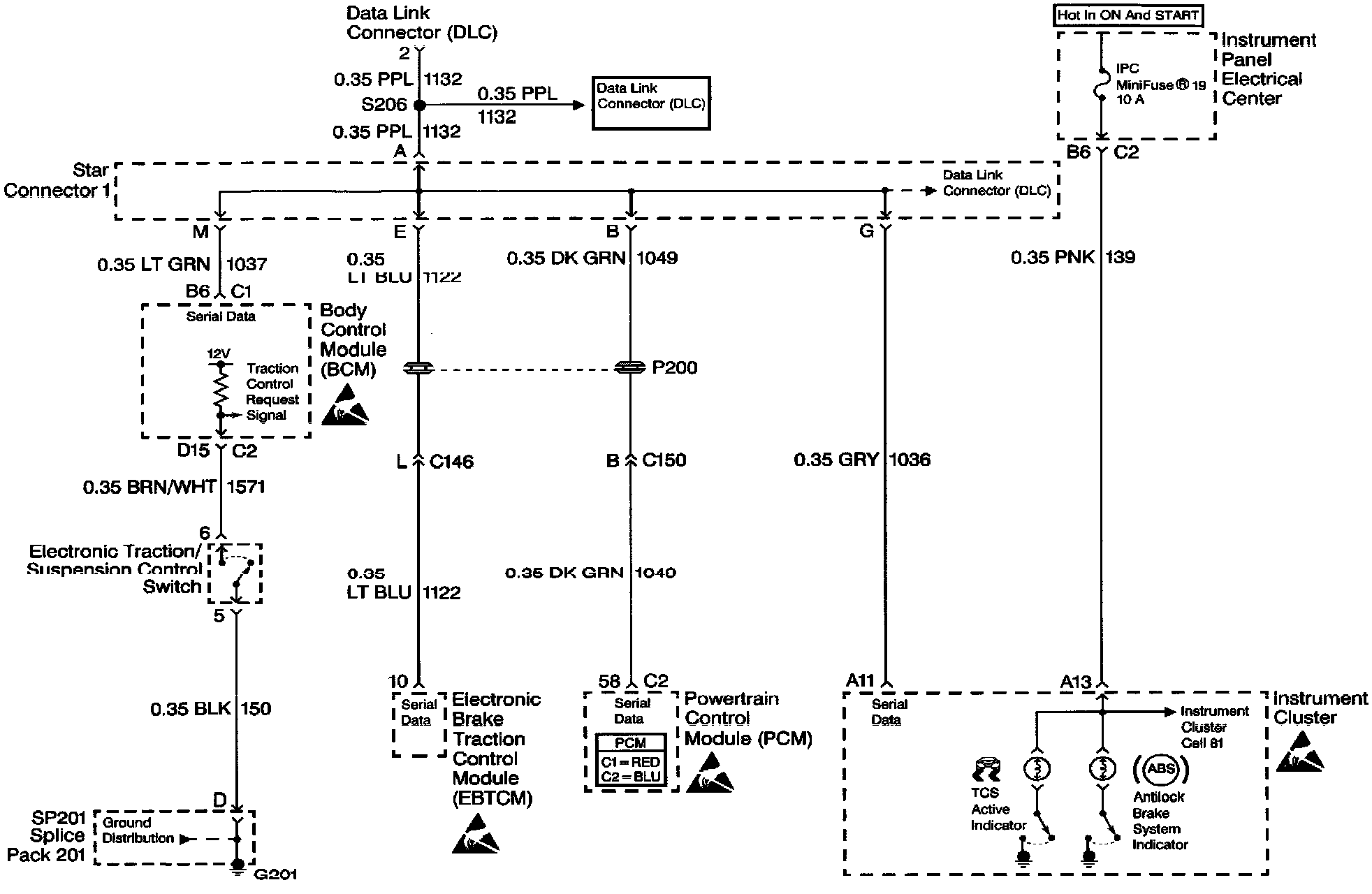

Data Link Connector (DLC):

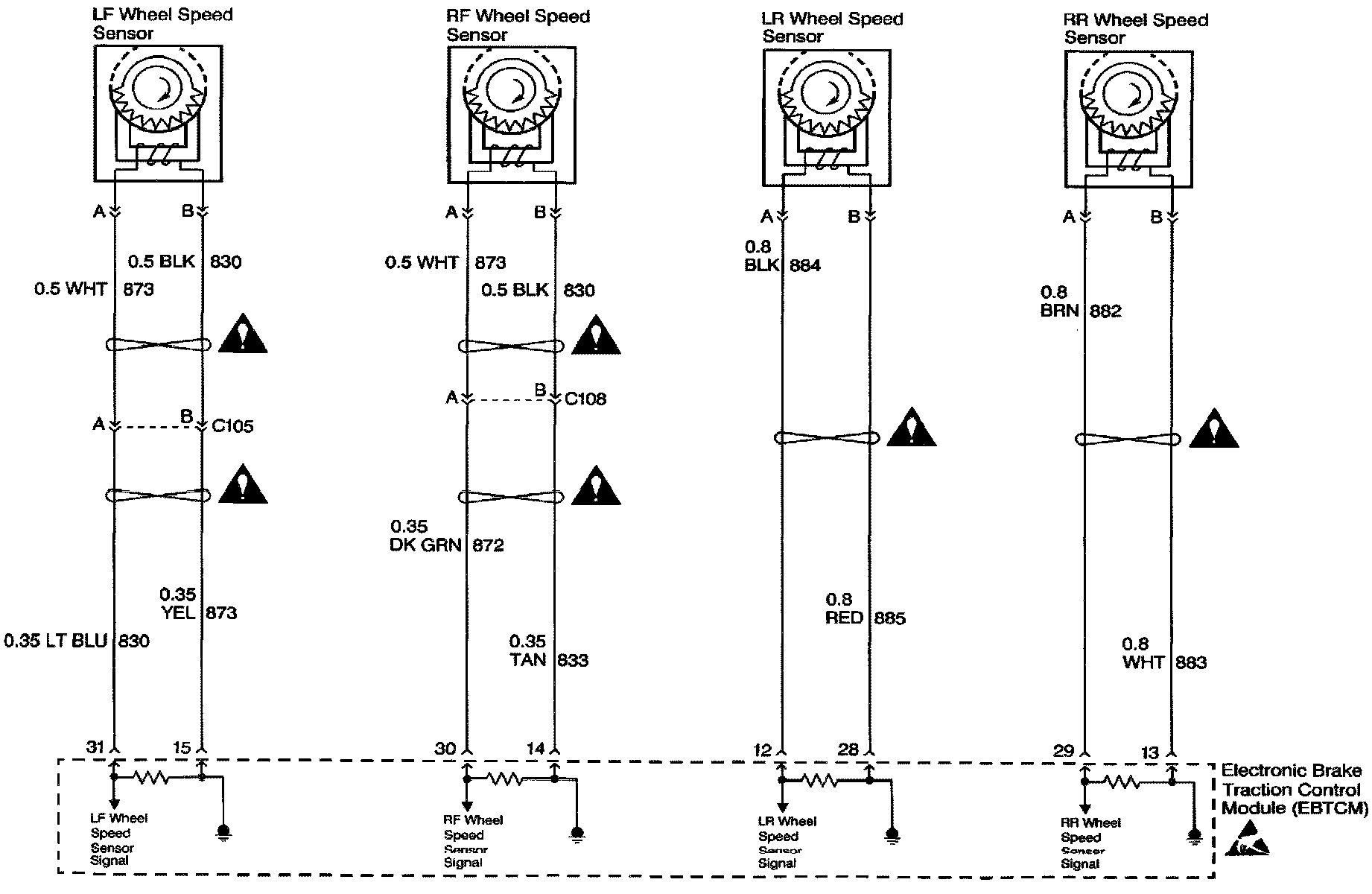

Wheel Speed Sensors:
