System Diagram

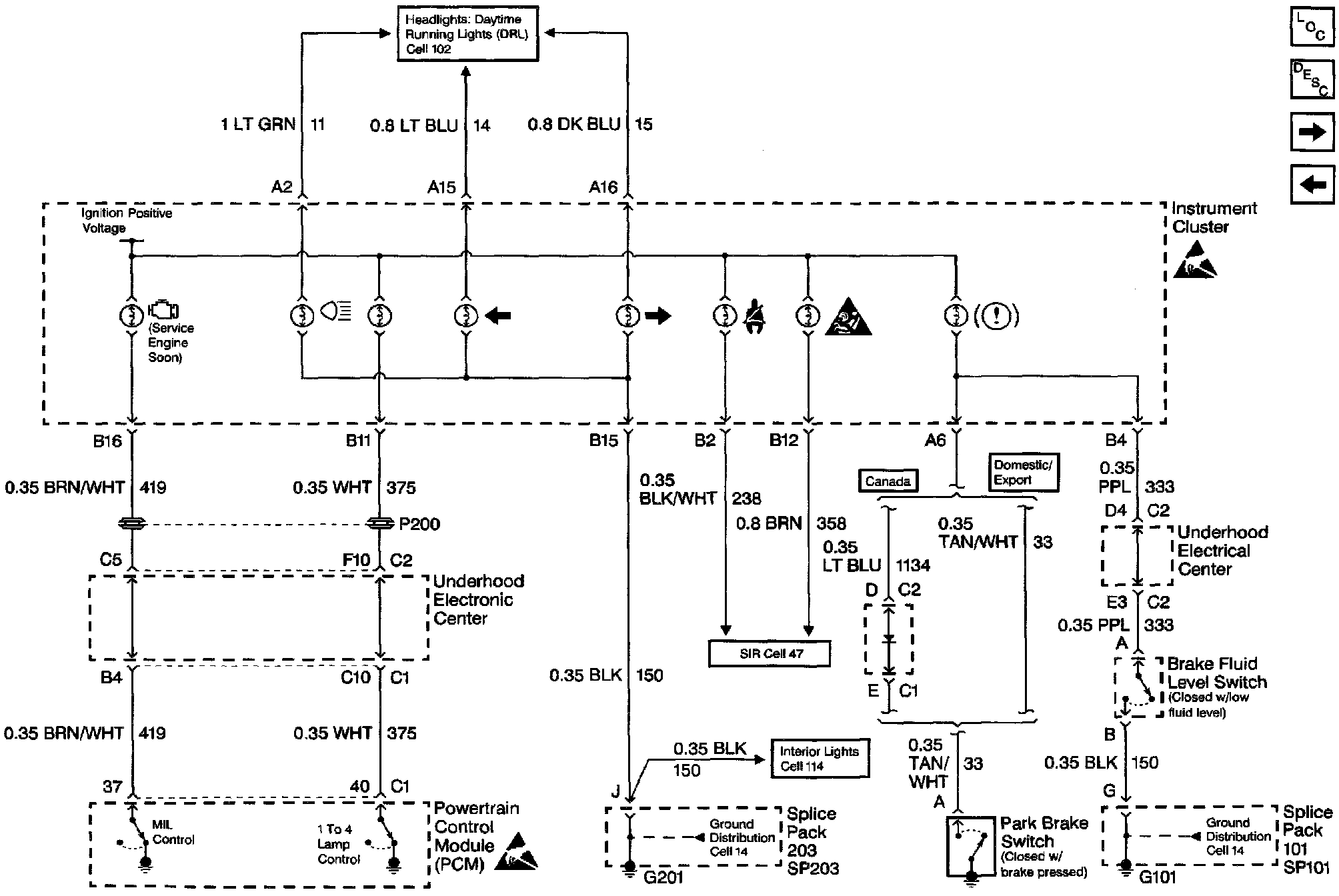

Instrument Cluster: Analog Schematics - Instrumentation Driver Information:



Instrument Cluster: Analog Schematics - Instrumentation Driver Information:
