BTSI Schematics (Front Mounted EBTCM/Bpmv)

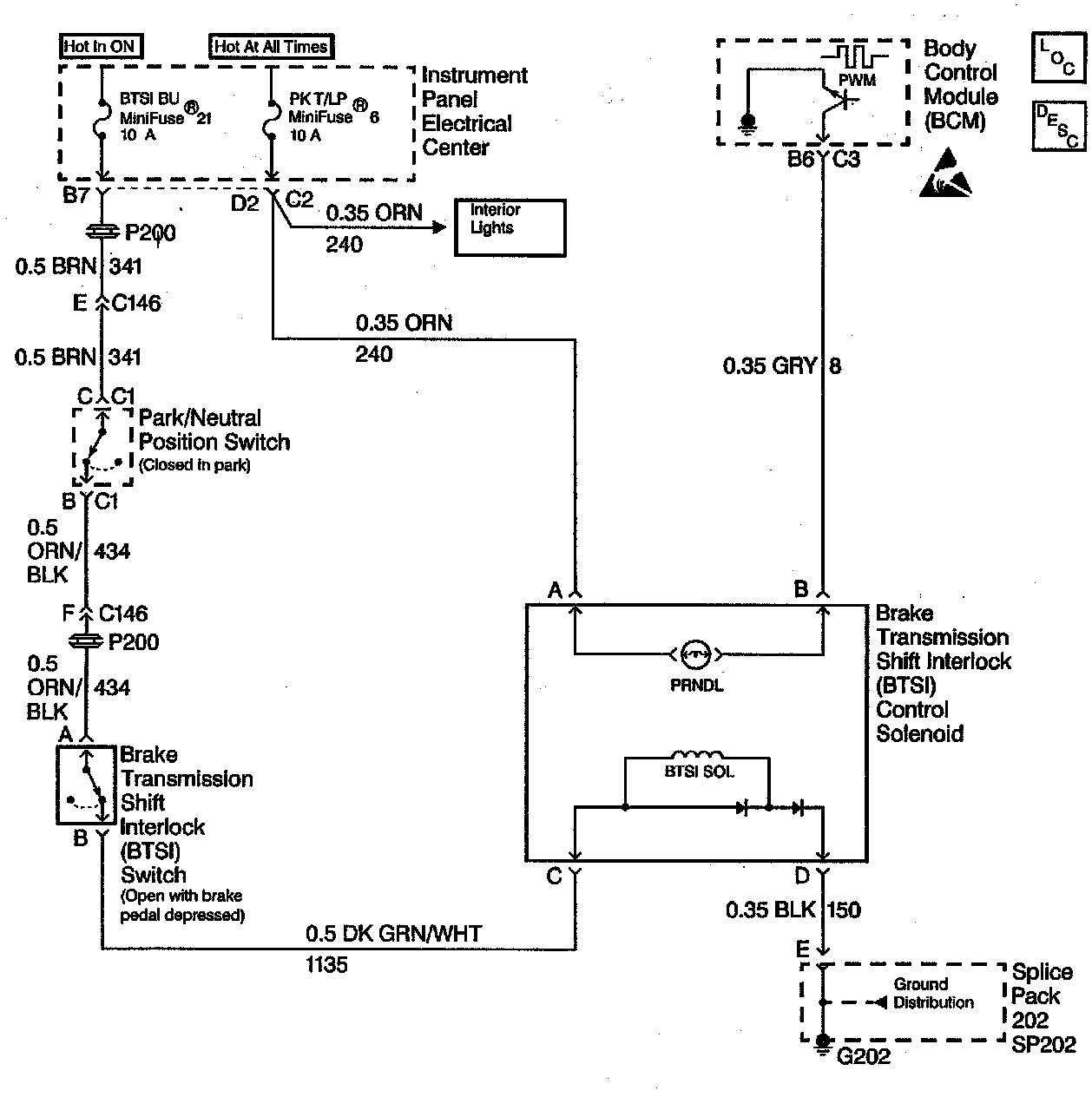

Cell 138: Brake Transmission Shift Interlock (BTSI) System:
