Suspension Controls Schematics (Rear Mounted EBTCM/BPMV)
Suspension Controls Schematics (Rear Mounted EBTCM/BPMV)

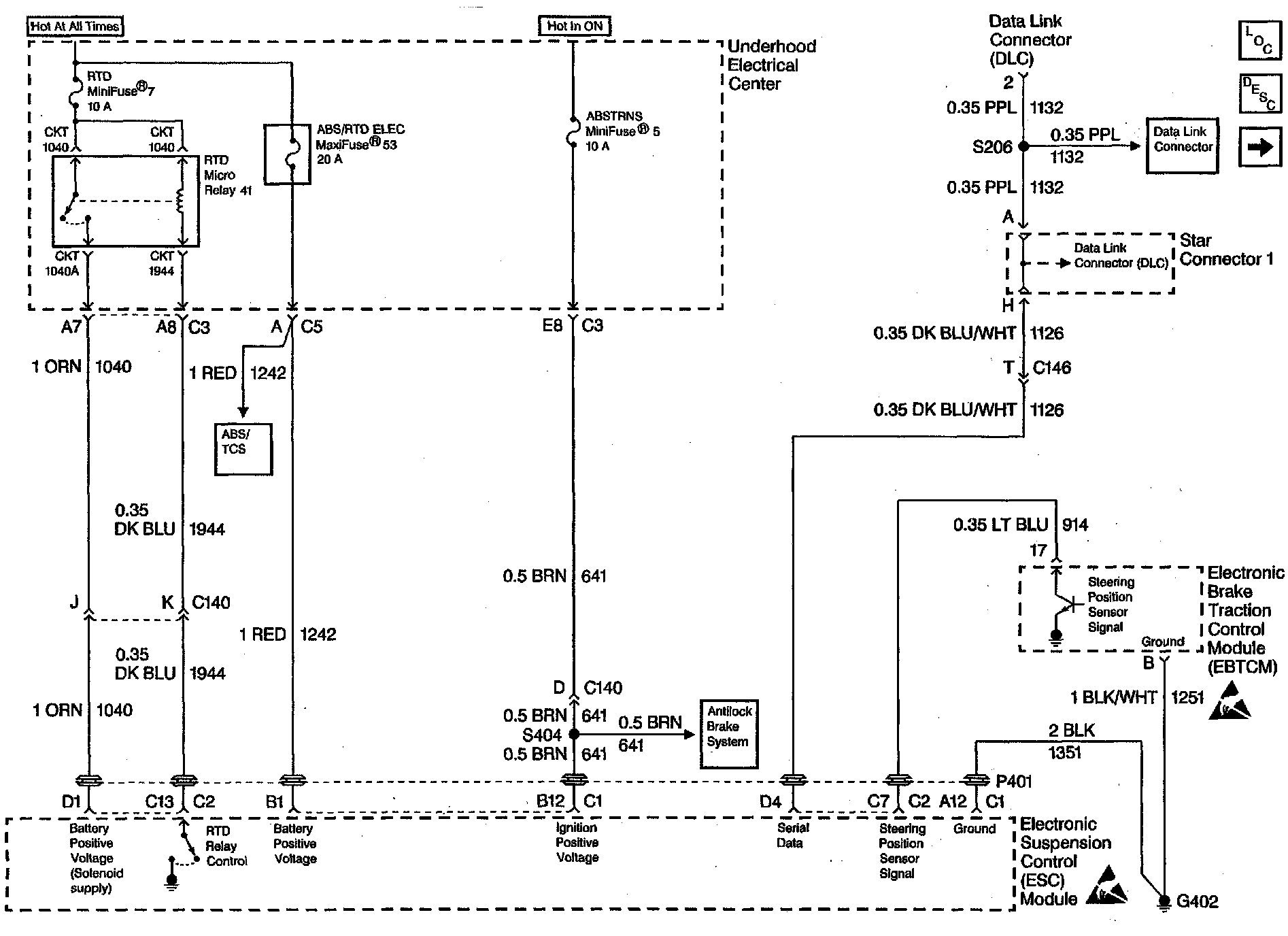

Cell 43: Power, Ground And DLC:

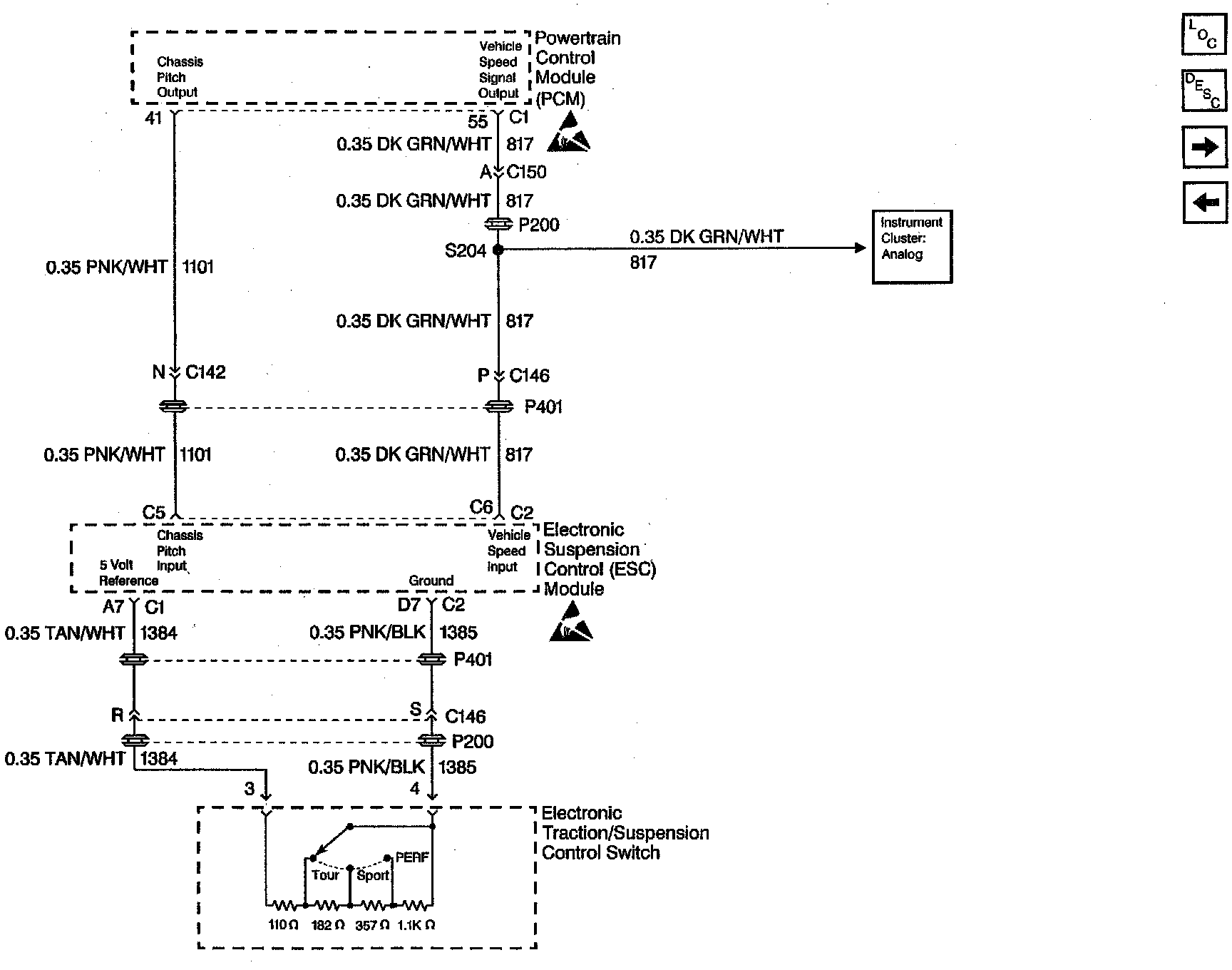

Cell 43: Suspension Control Input:
Cell 43: Sensor Input:

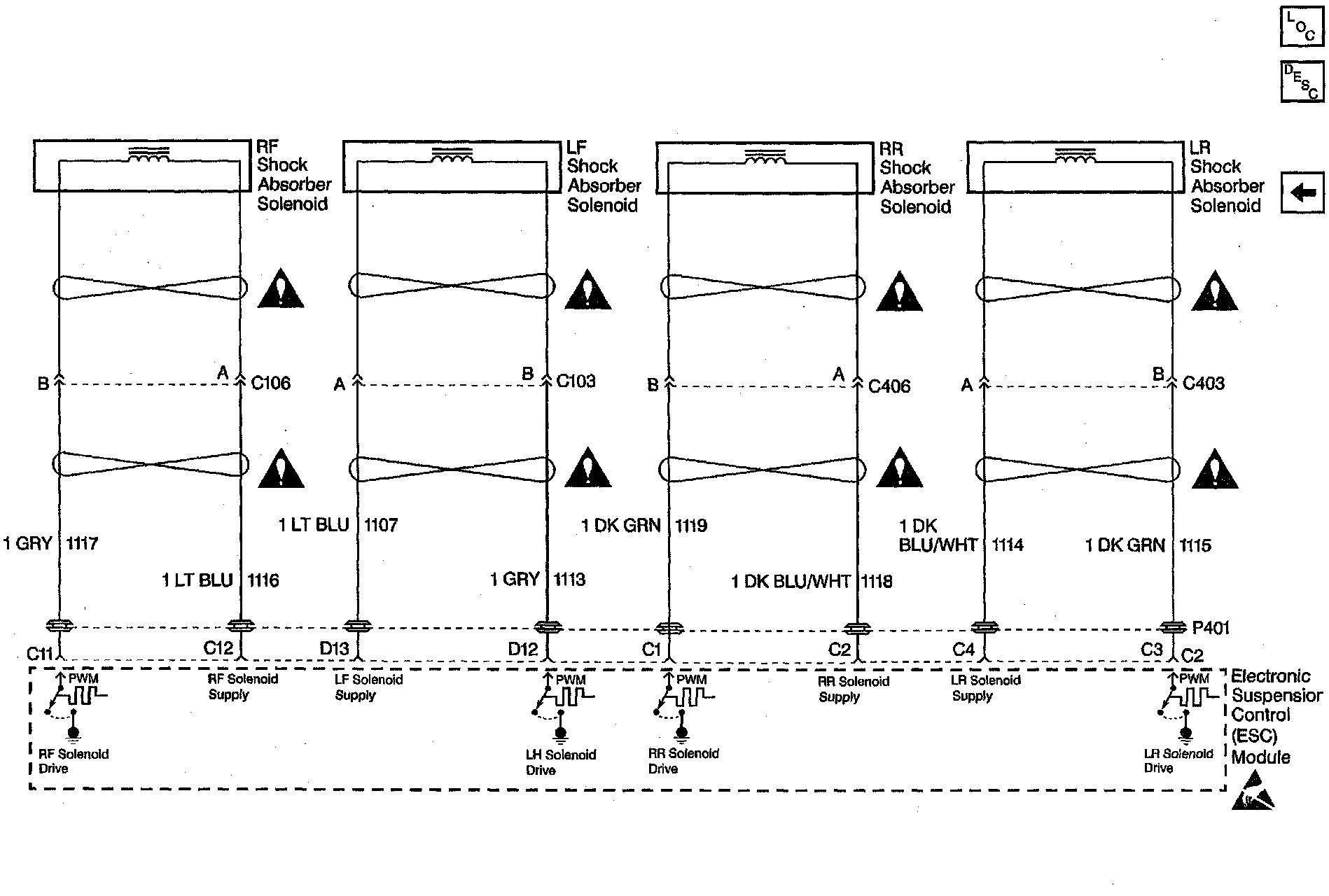

Cell 43: Solenoid Control System:
