Home >> Chevrolet >> 1998 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Fluid Pump, A/T

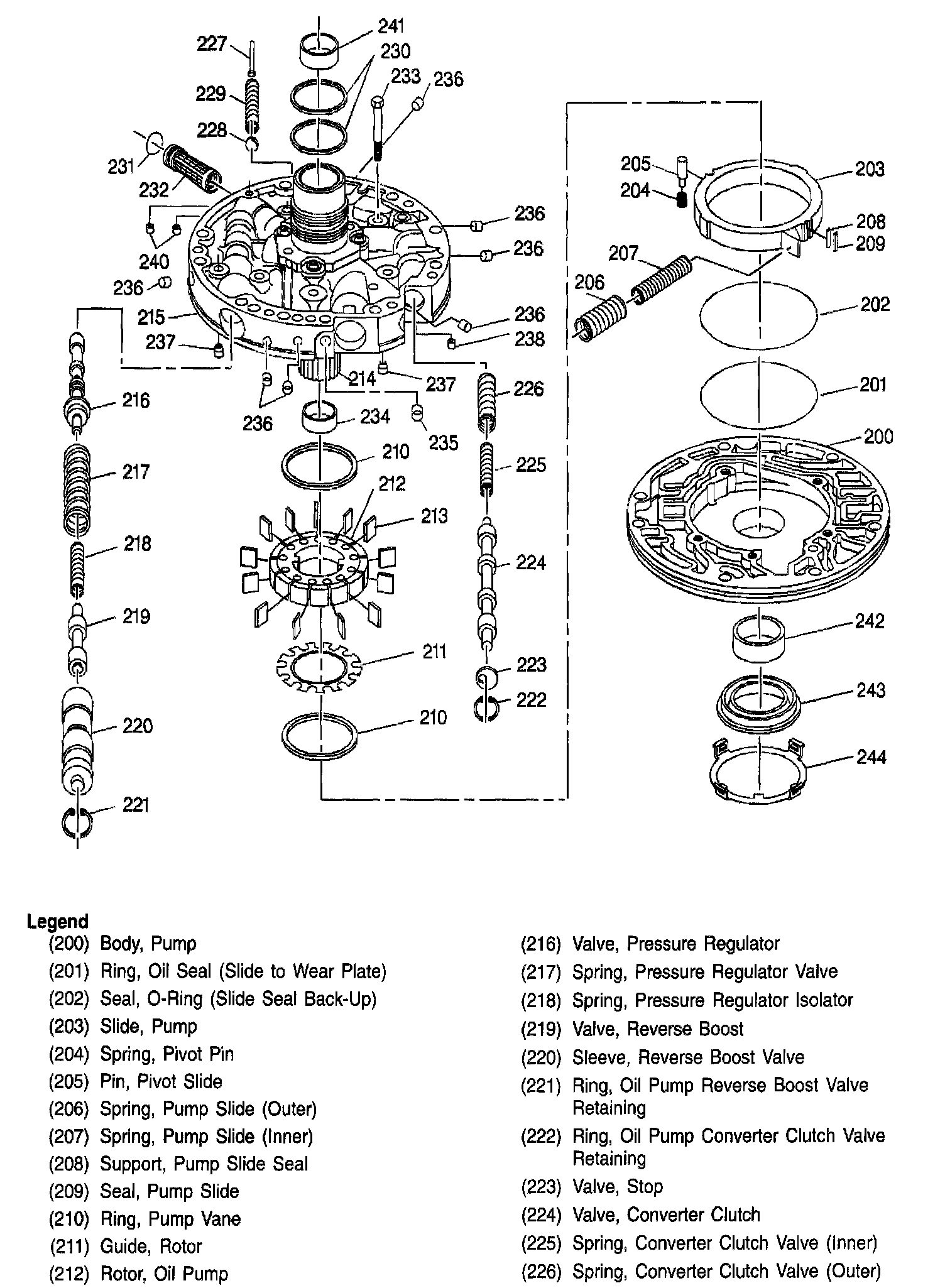

Fluid Pump, A/T

�F�=Part 1 Of 2:

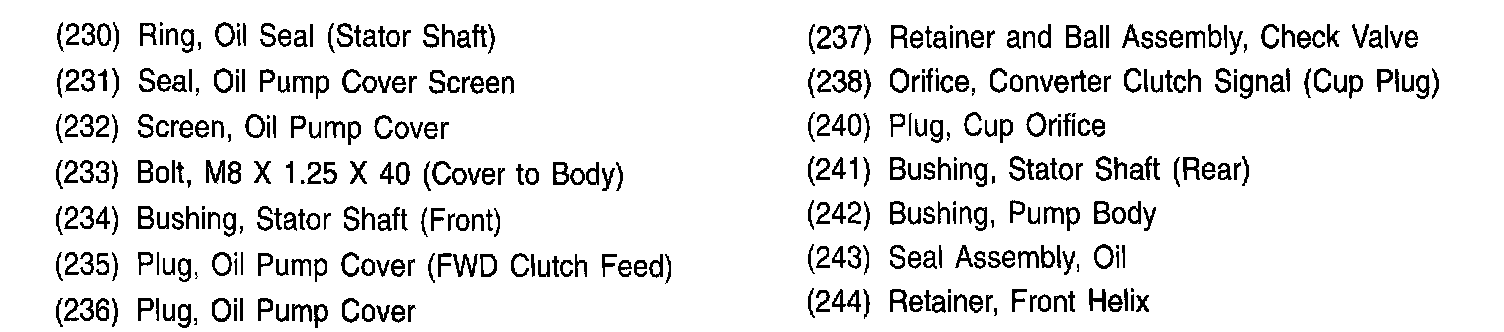

Part 2 Of 2:
