Manual Transmission/Transaxle

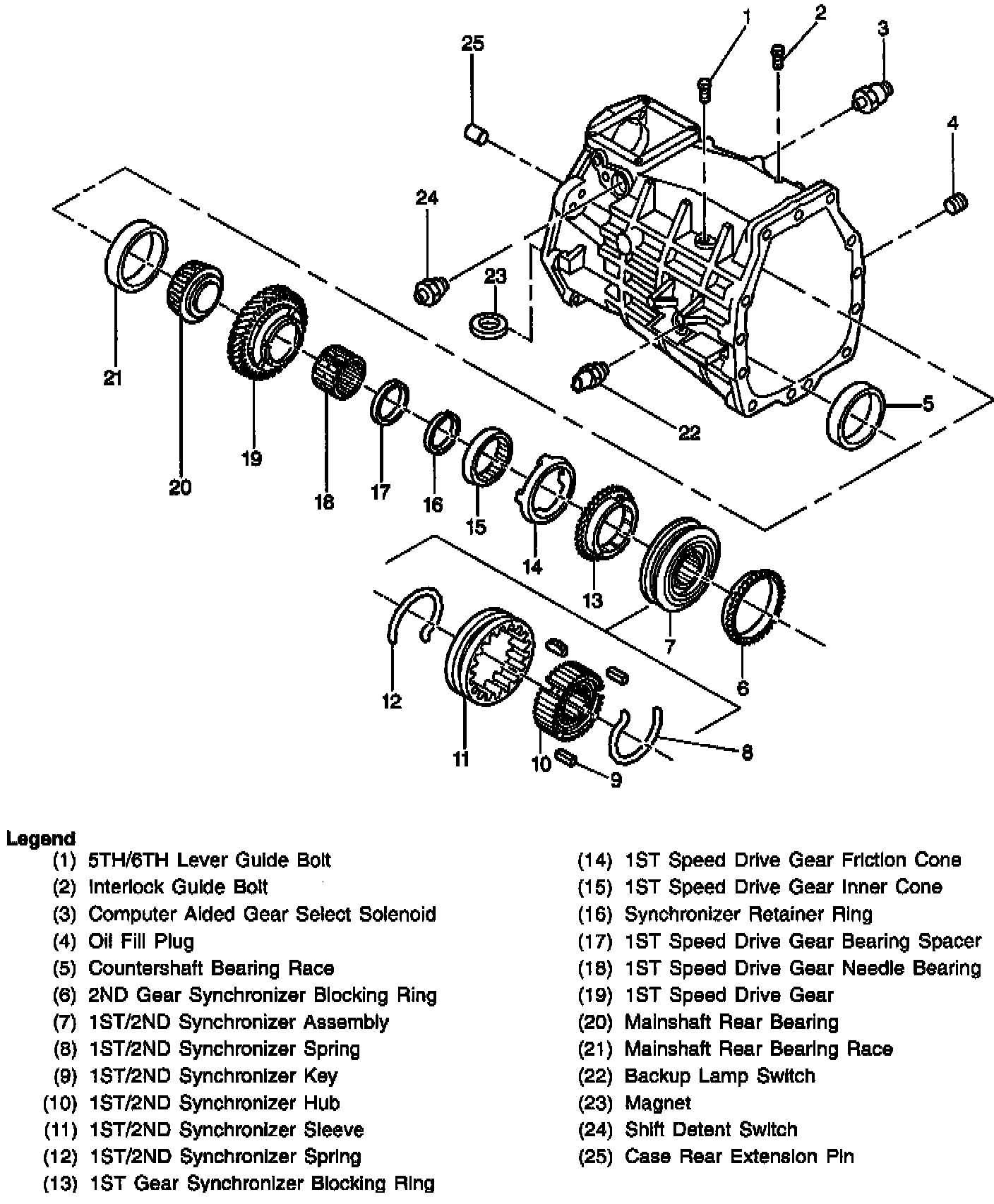

TRANSMISSION CASE (1 OF 2)

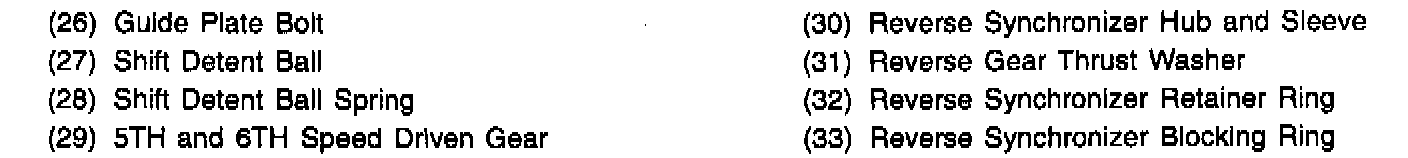

TRANSMISSION CASE (2 OF 2)

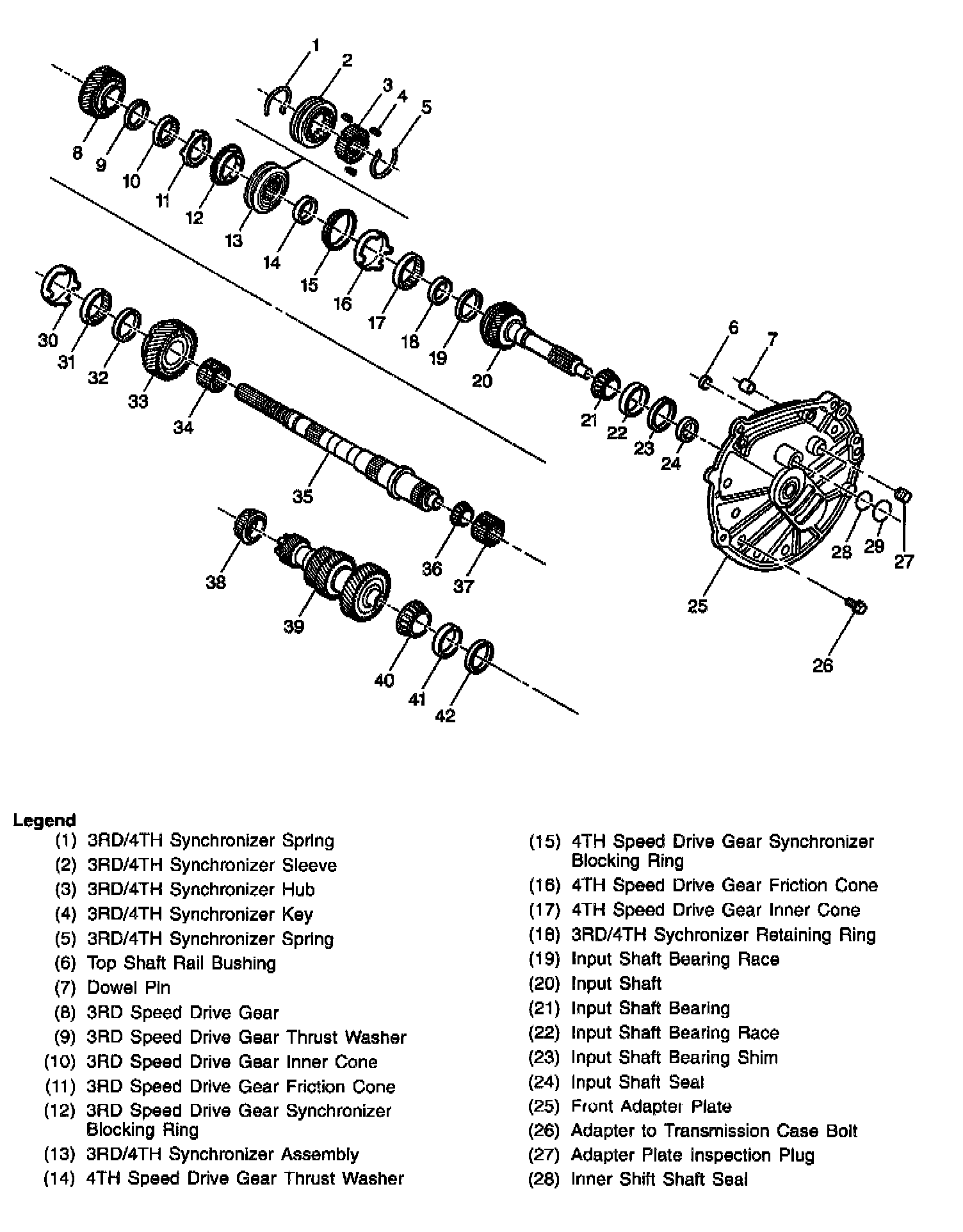

ADAPTER PLATE AND GEARS








EXTENSION HOUSING





REVERSE LOCKOUT

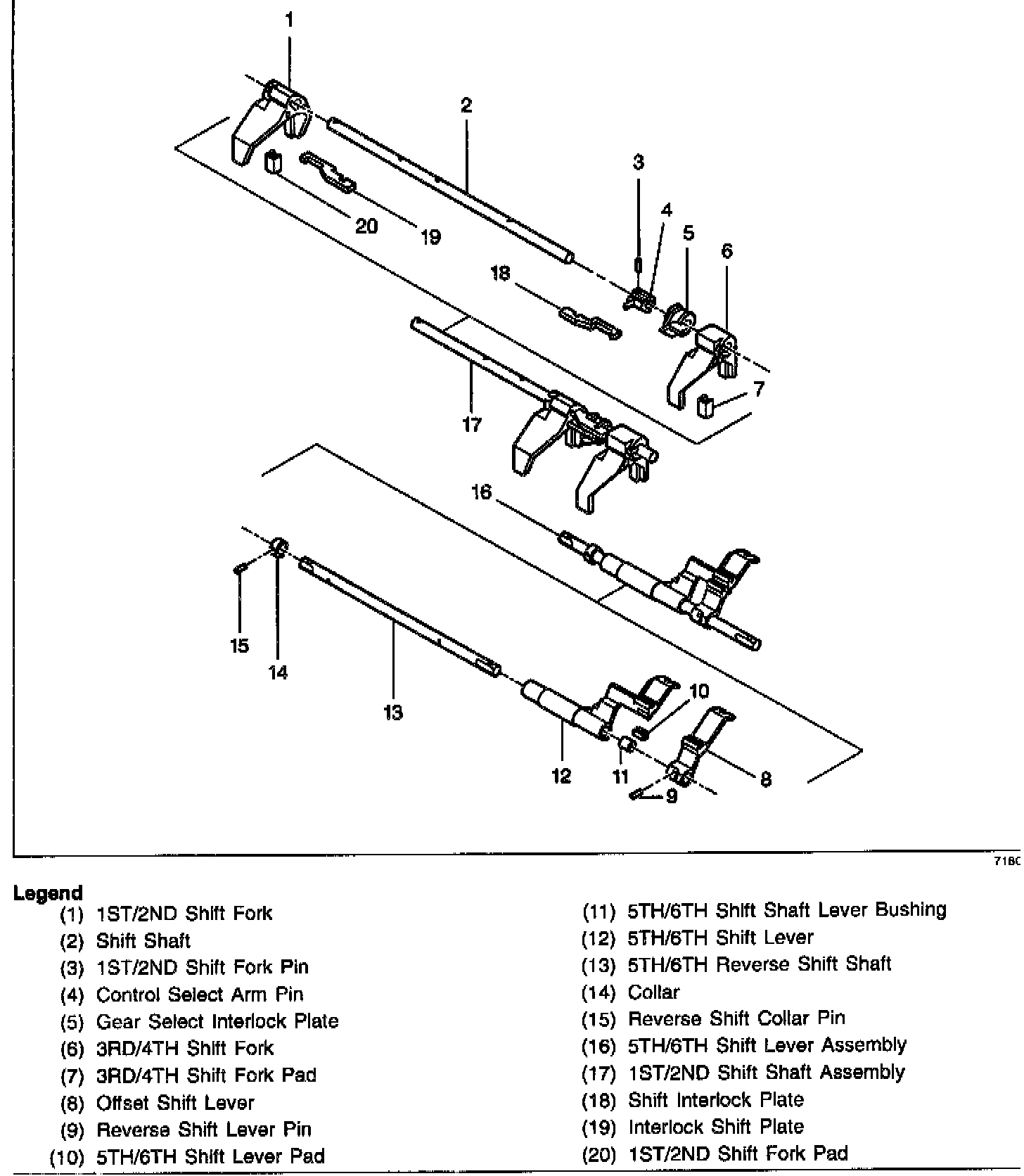

SHIFT SHAFTS
