Operation CHARM: Car repair manuals for everyone.
Home >> Chevrolet >> 1998 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

Steering Column

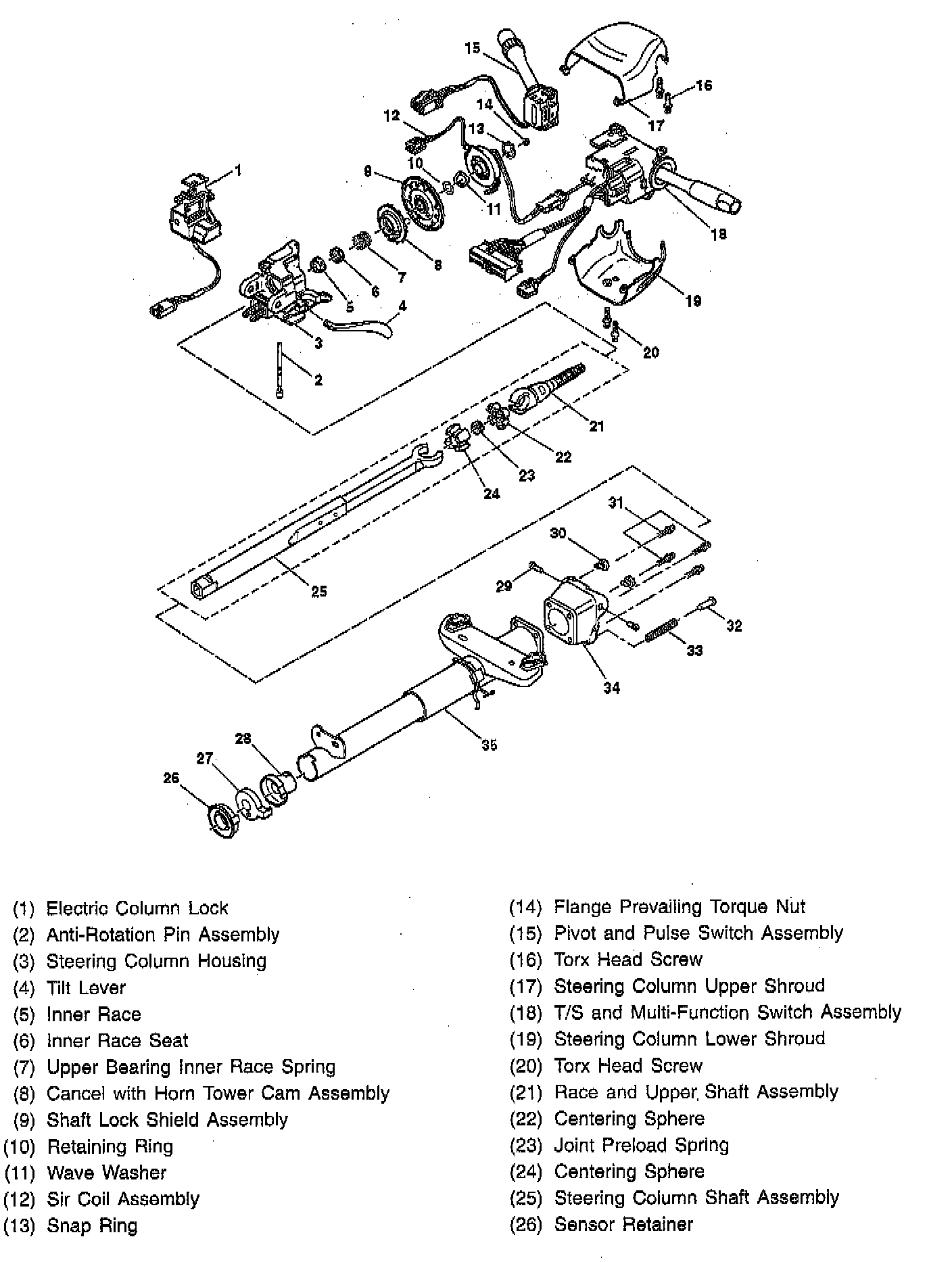

Tilt Steering Column Part 1 Of 2:



Tilt Steering Column Part 2 Of 2:
