Air Distribution Duct Replacement

REMOVAL PROCEDURE

Air Distribution Duct Replacement: Removal Procedure:

1. Remove the I/P upper trim pad.
2. Remove the screws retaining the air distribution duct to the underside of the upper trim pad.
3. Remove the air distribution duct.

INSTALLATION PROCEDURE

Air Distribution Duct Replacement: Installation Procedure:

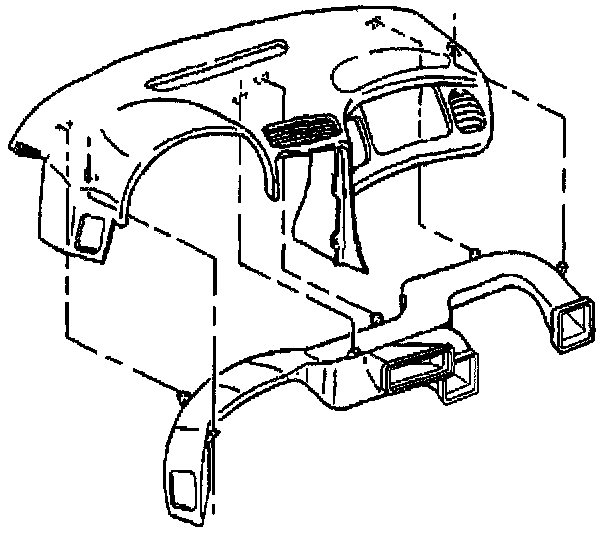

1. Install the distribution duct into position on the upper trim pad.

Insert the duct retaining tabs into the trim pad slots.
2. Install the air distribution duct retaining screws to the underside of the trim pad.

Tighten
Tighten the air distribution duct retaining screws to 1.8 Nm (16 lb in).

3. Install the I/P upper trim pad.
