Knee Bolster Trim Panel Replacement
REMOVAL PROCEDURETrim Panel Replacement: Knee Bolster - Removal Procedure:
1. Remove the console.
2. Remove the I/P accessory trim plate.
3. Remove the fog lamp, rear compartment lid release switch.

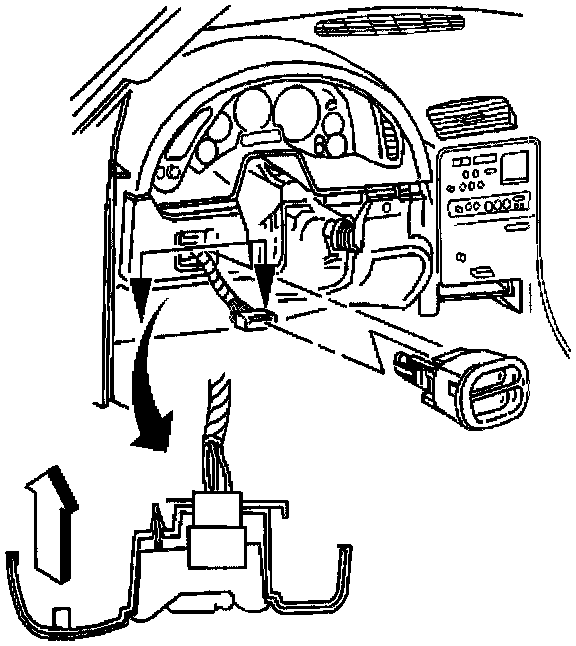

3.1. Pry carefully at the lower edge of the switch to release the locking tab.
3.2. Disconnect the electrical connector from the switch.
Trim Panel Replacement: Knee Bolster - Removal Procedure:

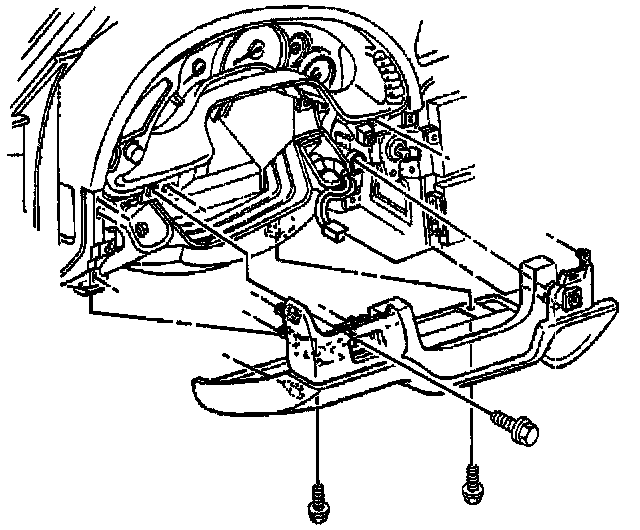

4. Remove the driver knee bolster trim panel retaining screw behind the fog lamp, rear compartment lid release switch.
5. Remove the driver knee bolster trim panel lower retaining screws.
6. Grasp the trim panel at the side edges.
7. Pull firmly rearward to release the locking tabs.
8. Disconnect the electrical connector from the inside air temperature sensor, if equipped.
9. Remove the trim panel.
INSTALLATION PROCEDURE
Trim Panel Replacement: Knee Bolster - Installation Procedure:
1. Connect the electrical connector to the inside air temperature sensor, if equipped.
2. Insert the electrical connector for the fog lamp, rear compartment lid release switch through the opening in the trim panel.
3. Install the driver knee bolster trim panel.
3.1. If equipped, insert the inside air temperature sensor wire down into the driver knee bolster bracket to avoid pinching the wire.
3.2. Align the locking tabs to the slots.
3.3. Push the trim panel to secure.

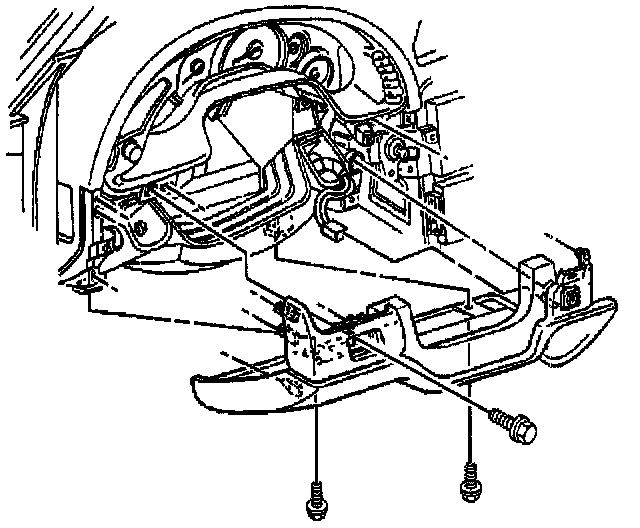

4. Loosely install the screws retaining the bottom of the driver knee bolster trim panel, in order to align the nuts on the knee bolster bracket.
5. Install the remaining driver knee bolster trim panel retaining screw.
Tighten
^ Tighten the driver knee bolster trim panel retaining screw behind fog lamp, rear compartment lid release switch to 1.8 Nm (16 lb in).
^ Tighten the driver knee bolster trim panel lower retaining screws to 1.8 Nm (16 lb in).
Trim Panel Replacement: Knee Bolster - Installation Procedure:
6. Install the fog lamp, rear compartment lid release switch.

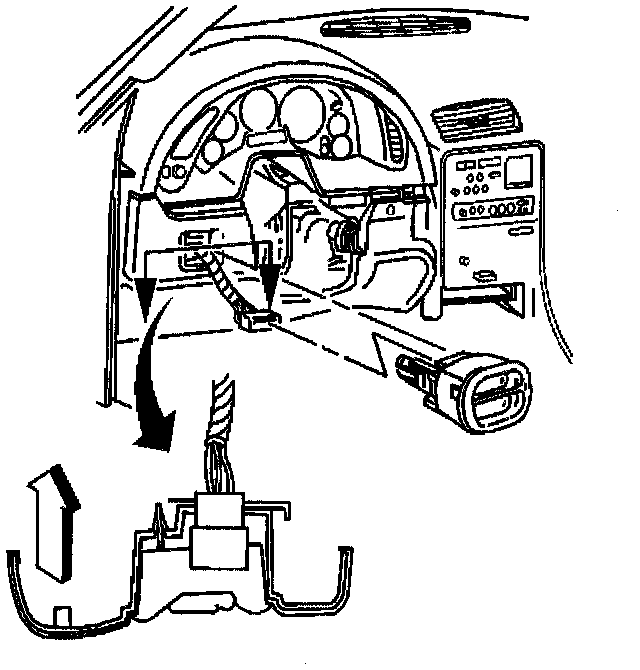

6.1. Connect the electrical connector to the switch.
6.2. Align the switch, then push to secure.
7. Install the I/P accessory trim plate.
8. Install the console.
