Instrument Panel Cluster Bezel Replacement
REMOVAL PROCEDURENOTE: Whenever the Instrument Panel Cluster (IPC) is removed from the vehicle, DO NOT set the IPC on its face for more than 15 minutes or damage to the fluid filled air core gages may result.
Bezel Replacement: IP Cluster - Removal Procedure:
1. Remove the IPC from the vehicle.

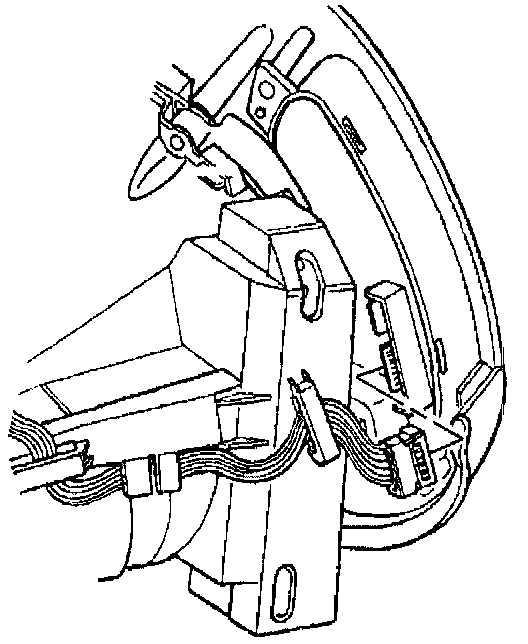

2. Disconnect the Instrument Panel (I/P) dimmer switch electrical connector.
Bezel Replacement: IP Cluster - Removal Procedure:

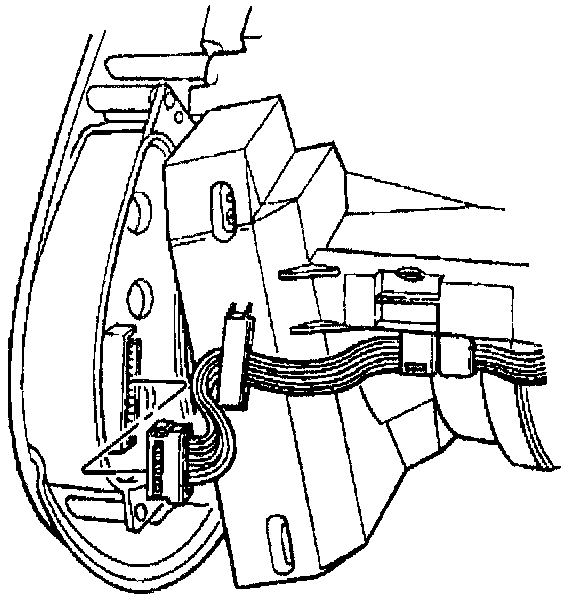

3. Disconnect the driver information center (DIC) switch electrical connector.
Bezel Replacement: IP Cluster - Removal Procedure:

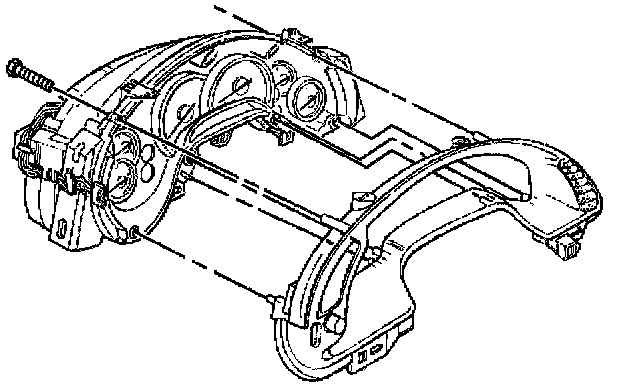

4. Remove the I/P cluster bezel retaining screws.
5. Remove the cluster bezel from the IPC.
Bezel Replacement: IP Cluster - Removal Procedure:

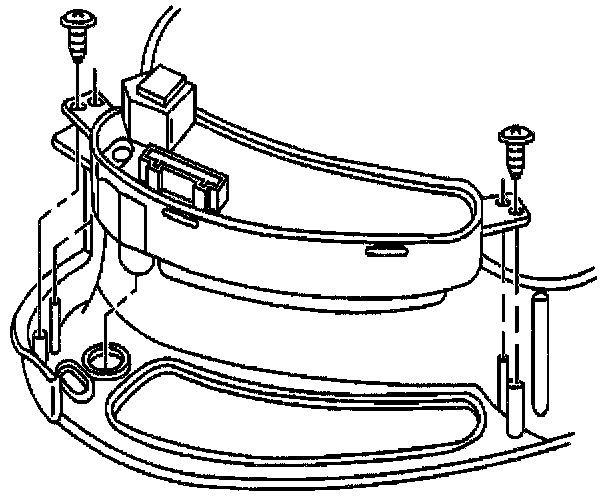

6. Remove the I/P dimmer switch retaining screws.
7. Remove the I/P dimmer switch.
Bezel Replacement: IP Cluster - Removal Procedure:
8. Remove the DIC switch retaining screws.
9. Remove the DIC switch.
INSTALLATION PROCEDURE
Bezel Replacement: IP Cluster - Installation Procedure:
1. Install the DIC switch to the I/P cluster bezel.
2. Install the DIC switch retaining screws.
Tighten
Tighten the DIC switch retaining screws to 1.5 N.m (13 lb in).
Bezel Replacement: IP Cluster - Installation Procedure:
3. Install the lip dimmer switch to the bezel.
4. Install the I/P dimmer switch retaining screws.
Tighten
Tighten the I/P dimmer switch retaining screws to 1.5 N.m (13 lb in).
Bezel Replacement: IP Cluster - Installation Procedure:

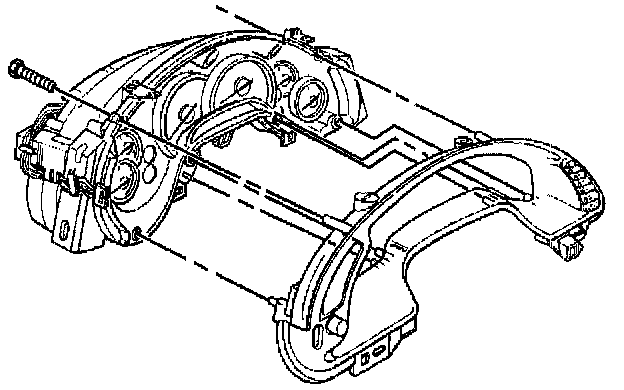

5. Install the bezel to the IPC.
Align the bezel onto the guide pins.
6. Install the I/P cluster bezel retaining screws.
Tighten
Tighten the I/P cluster bezel retaining screws to 1.5 N.m (13 lb in).
Bezel Replacement: IP Cluster - Installation Procedure:

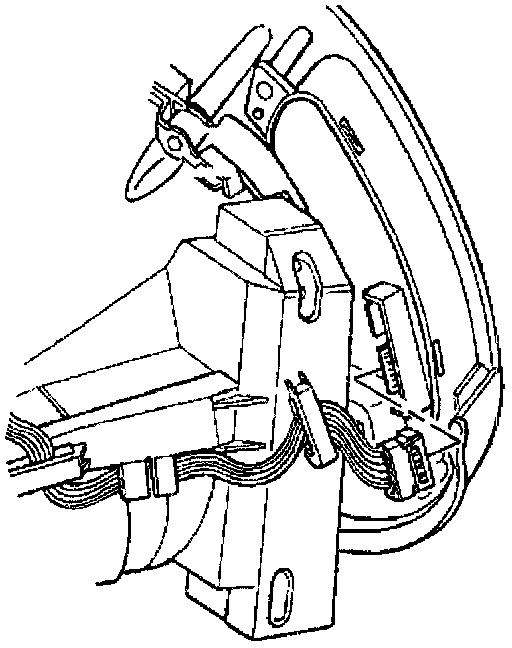

7. Connect the I/P dimmer switch electrical connector.
Bezel Replacement: IP Cluster - Installation Procedure:
8. Connect the DIC switch electrical connector.
9. Install the IPC to the vehicle.
