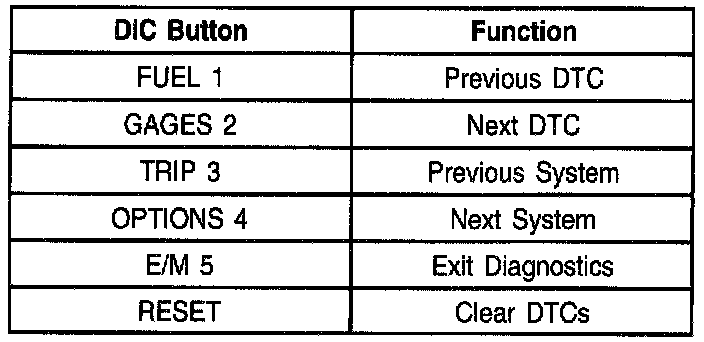

DIC Button Functions

DIC Button Functions:

DIC Button Functions:

In both diagnostic modes, systems will be displayed in the following order:
^ PCM (Powertrain Control Module)
^ TCS (Traction Control System)
^ RTD (Real Time Damping) (with F45 option)
^ BCM (Body Control Module)
^ IPC (Instrument Panel Cluster)
^ RADIO (Radio)
^ HVAC (Heater, Ventilation and Air Conditioning) (with CJ2 option)
^ LDCM (Left Door Control Module)
^ RDCM (Right Door Control Module)
^ SCM (Seat Control Module) (with AAB option)
^ RFA (Remote Function Actuation)
