Fog Lamp Bulb Replacement, Rear

REMOVAL PROCEDURE

Fog Lamp Bulb Replacement: Rear - Removal Procedure:

1. Remove the tail/turn signal lamp.

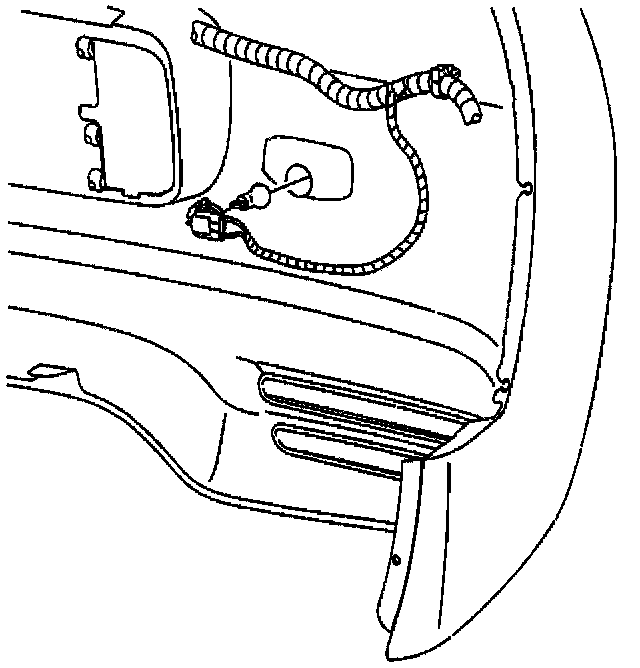

2. Remove the rear fog lamp socket from the rear fog lamp assembly.

Access the side marker lamp through the taillamp opening.
3. Remove the bulb from the socket.

INSTALLATION PROCEDURE

Fog Lamp Bulb Replacement: Rear - Installation Procedure:

1. Install the bulb to the socket.
2. Install the socket to the lamp.
3. Install the tail/turn signal lamp.
