Fog Lamp Replacement - Front (Assembly)
REMOVAL PROCEDUREFog Lamp Replacement: Front (Assembly) - Removal Procedure:
1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information. Diagnostic Aids
2. Remove the front fascia lower closeout panel.
3. Release the brake caliper cooling duct from the front fascia, then reposition the duct.
Fog Lamp Replacement: Front (Assembly) - Removal Procedure:

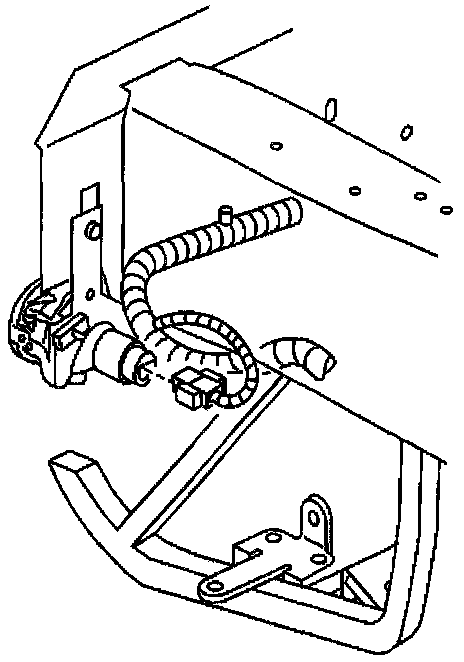

4. Disconnect the front fog lamp electrical connector.
Fog Lamp Replacement: Front (Assembly) - Removal Procedure:

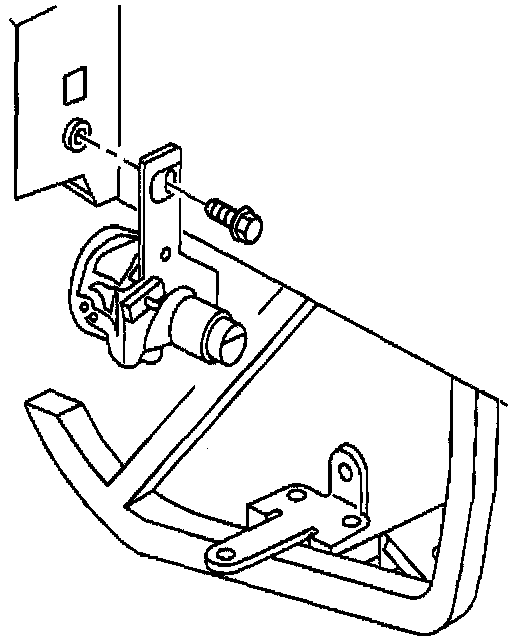

5. Remove the front fog lamp mounting bolt.
6. Remove the lamp from the vehicle.
INSTALLATION PROCEDURE
Fog Lamp Replacement: Front (Assembly) - Installation Procedure:
1. Position the front fog lamp to the front bumper impact bar. Insert the fog lamp bracket alignment tab into the hole on the front bumper impact bar.
2. Install the front fog lamp mounting bolt.
Tighten
Tighten the front fog lamp mounting bolt to 1.9 N.m (17 lb in).
Fog Lamp Replacement: Front (Assembly) - Installation Procedure:
3. Connect the front fog lamp electrical connector.
Fog Lamp Replacement: Front (Assembly) - Installation Procedure:
4. Position the brake caliper cooling duct to the front fascia, then push to secure.
5. Install the front fascia lower closeout panel.
6. Lower the vehicle.
7. Verify that the front fog lamps are aimed properly.
