Headlamp Intermediate Bracket Replacement

REMOVAL PROCEDURE

Headlamp Intermediate Bracket Replacement: Removal Procedure:

1. Open the hood.
2. Remove the headlamp bezel.
3. Remove the headlamp opening door.
4. Mark the location of the headlamp intermediate bracket.

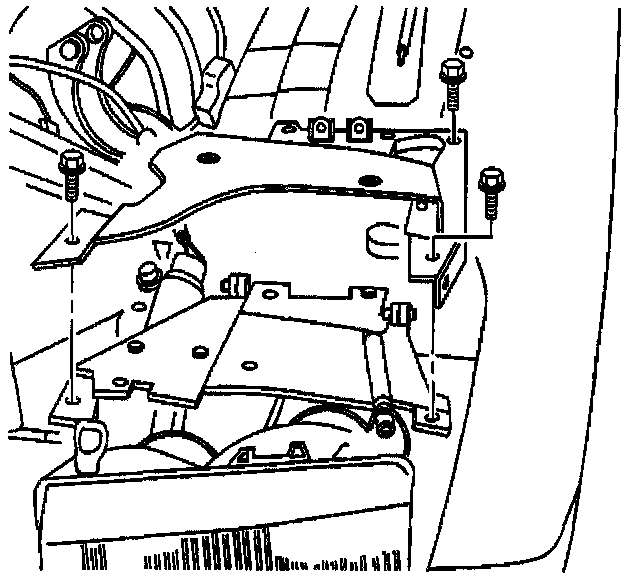

5. Remove the headlamp intermediate bracket retaining screws.
6. Remove the headlamp intermediate bracket.

INSTALLATION PROCEDURE

Headlamp Intermediate Bracket Replacement: Installation Procedure:

1. Install the headlamp intermediate bracket into position as marked prior to removal.
2. Install the headlamp intermediate bracket retaining screws.

Tighten
Tighten the headlamp intermediate bracket screws to 1.9 N.m (17 lb in).

3. Install the headlamp opening door.
4. Install the headlamp bezel.
5. Close the hood.
