Position Lamp Replacement, Front (Assembly, Europe, Japan)

REMOVAL PROCEDURE

Position Lamp Replacement: Front (Assembly, Europe, Japan) - Removal Procedure:

1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information. Diagnostic Aids
2. Remove the front fascia lower closeout panel.

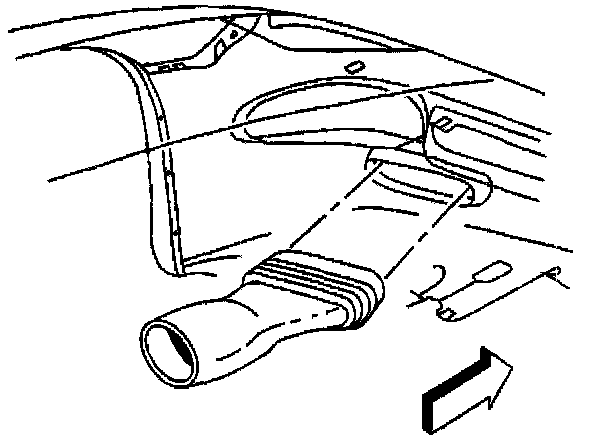

3. Release the brake caliper cooling duct from the front fascia, then reposition the duct.

Position Lamp Replacement: Front (Assembly, Europe, Japan) - Removal Procedure:

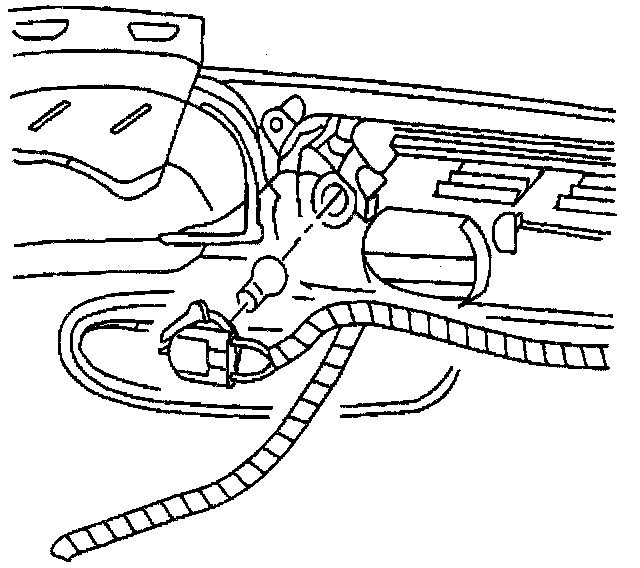

4. Unlatch and open the lamp access door on top of the front fascia closeout.
5. Remove the front position lamp socket from the lamp assembly.

Position Lamp Replacement: Front (Assembly, Europe, Japan) - Removal Procedure:

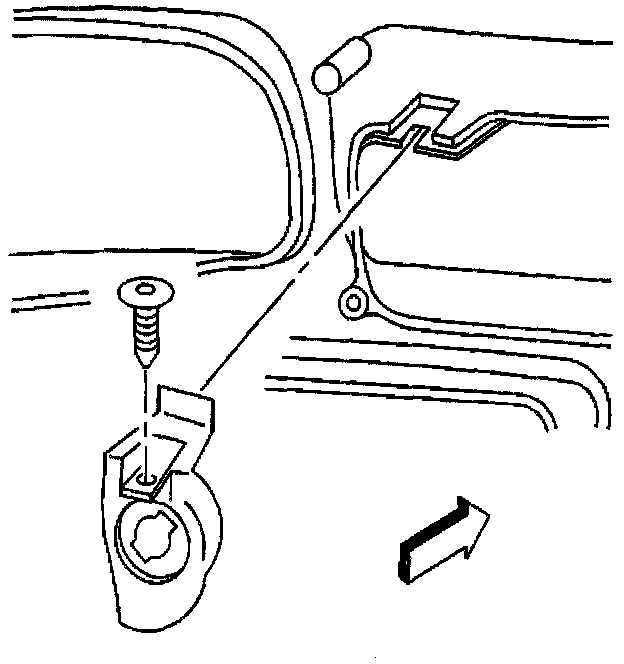

6. Remove the front position lamp retaining screw.
7. Remove the front position lamp assembly.

INSTALLATION PROCEDURE

Position Lamp Replacement: Front (Assembly, Europe, Japan) - Installation Procedure:

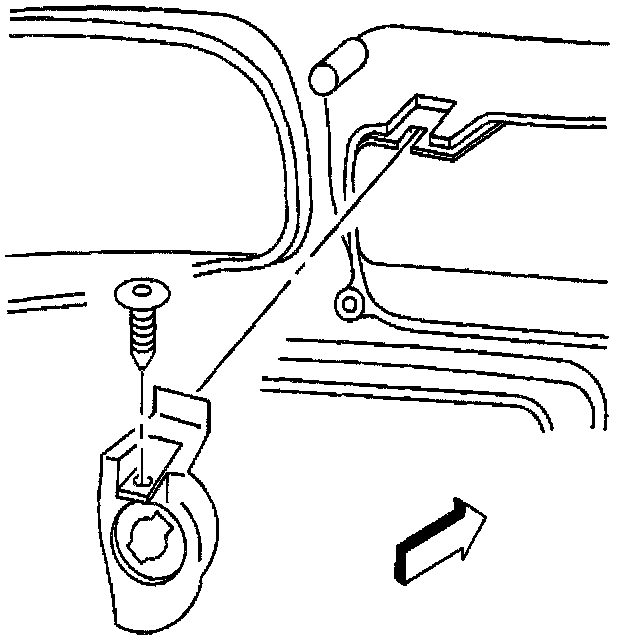

1. Position the front position lamp to the front fascia.
2. Install the front position lamp retaining screw.

Tighten
Tighten the front position lamp retaining screw to 2.0 N.m (18 lb in).

Position Lamp Replacement: Front (Assembly, Europe, Japan) - Installation Procedure:

3. Install the socket to the lamp.
4. Close the lamp access door on top of the front fascia closeout and secure the latch.

Position Lamp Replacement: Front (Assembly, Europe, Japan) - Installation Procedure:

5. Position the brake caliper cooling duct to the front fascia and push to secure.
6. Install the front fascia lower closeout panel.
