Repeater Lamp Replacement, Assembly Europe/Japan

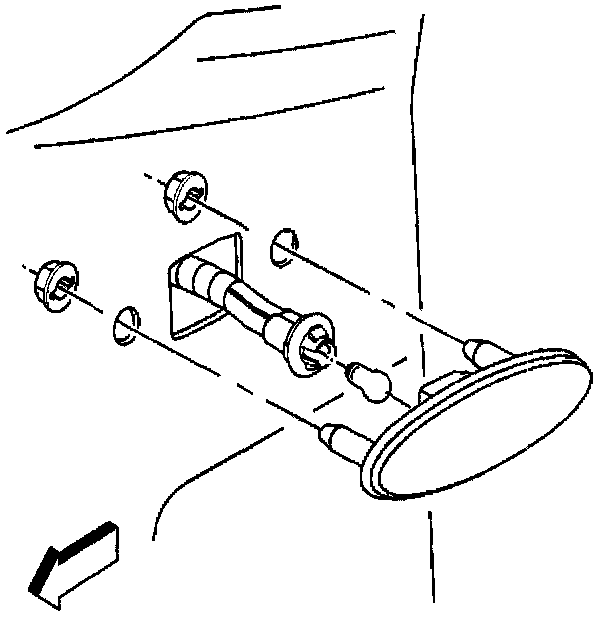

REMOVAL PROCEDURE

Repeater Lamp Replacement: Assembly Europe, Japan - Removal Procedure:

1. Remove the wheelhouse filler panel.
2. Remove the front side repeater lamp socket from the front side repeater lamp assembly.
3. Remove the lamp assembly retaining nuts.
4. Remove the lamp assembly.

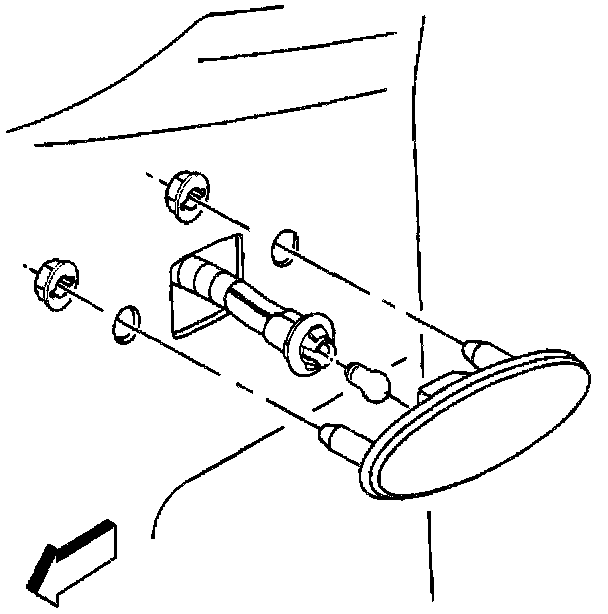

INSTALLATION PROCEDURE

Repeater Lamp Replacement: Assembly Europe, Japan - Installation Procedure:

1. Position the front side repeater lamp to the fender.
2. Install the front side repeater lamp retaining nuts.

Tighten
Tighten the front side repeater lamp retaining nuts to 2.3 N.m (20 lb in).

3. Install the socket to the lamp assembly.
4. Install the wheelhouse filler panel.
