Park/Turn Signal/Side Marker Lamp Replacement, Assembly
REMOVAL PROCEDUREPark/Turn Signal/Side Marker Lamp Replacement: Assembly Replacement - Removal Procedure:
1. Raise and suitably support the vehicle.
2. Remove the front fascia lower closeout panel.
3. Release the brake caliper cooling duct from the front fascia, then reposition the duct.
Park/Turn Signal/Side Marker Lamp Replacement: Assembly Replacement - Removal Procedure:

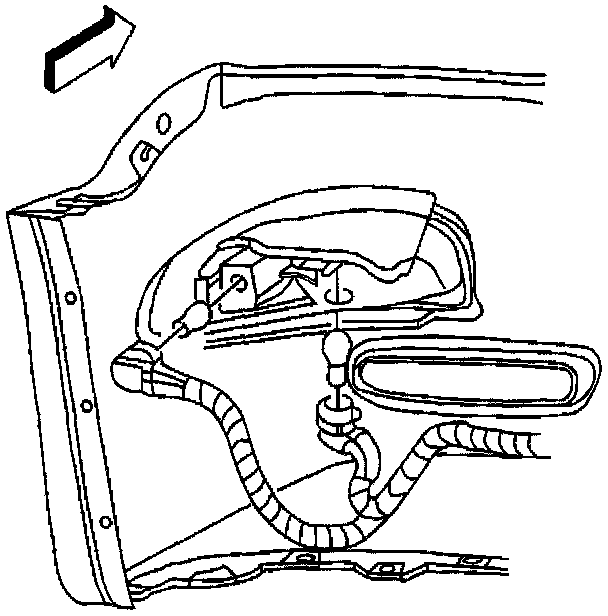

4. Unhook the front turn signal lamp bracket retaining spring from the lamp bracket.
5. Unhook the lamp bracket retaining spring from the front fascia.
6. Remove the front turn signal lamp bracket retaining screws.
Park/Turn Signal/Side Marker Lamp Replacement: Assembly Replacement - Removal Procedure:
7. Disconnect the sockets from the lamp.
Park/Turn Signal/Side Marker Lamp Replacement: Assembly Replacement - Removal Procedure:
8. Remove the lamp (with the bracket) from the vehicle.

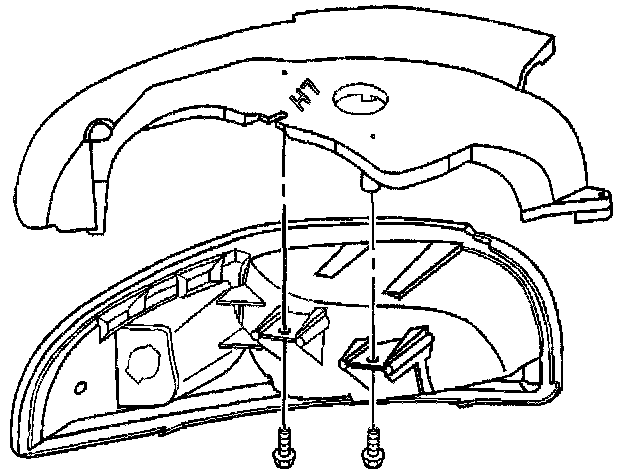

9. Remove the lamp to bracket retaining screws.
10. Remove the lamp from the bracket.
INSTALLATION PROCEDURE
Park/Turn Signal/Side Marker Lamp Replacement: Assembly Replacement - Installation Procedure:
1. Install the front park/turn signal and side marker lamp into position on the front turn signal lamp bracket.

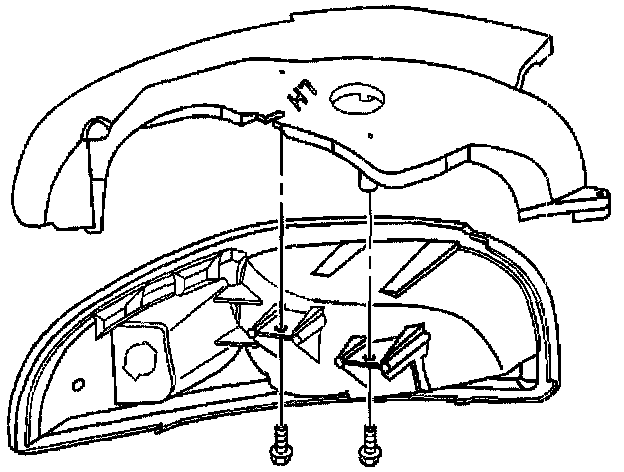

2. Install the front park/turn signal and side marker lamp to bracket retaining screws
Tighten
Tighten the front park/turn signal and side marker lamp to bracket retaining screws to 1.5 N.m (13 lb in).
Park/Turn Signal/Side Marker Lamp Replacement: Assembly Replacement - Installation Procedure:
3. Install the sockets to the lamp.
Park/Turn Signal/Side Marker Lamp Replacement: Assembly Replacement - Installation Procedure:
4. Install the lamp (with the bracket) to the front fascia.
5. Align the lamp to the opening in the front fascia and hold the lamp firmly in place against the fascia, while installing the front turn signal lamp bracket retaining screws.
Tighten
Tighten the front turn signal lamp bracket retaining screws to 2.5 N.m (22 lb in).
6. Hook the lamp bracket retaining spring to the front fascia.
7. Hook the front turn signal lamp bracket retaining spring to the lamp bracket.
Park/Turn Signal/Side Marker Lamp Replacement: Assembly Replacement - Installation Procedure:
8. Position the brake caliper cooling duct to the front fascia and push the duct toward the fascia to secure.
9. Install the front fascia lower closeout panel.
