Park/Turn Signal/Side Marker Lamp Replacement, Bulb
REMOVAL PROCEDUREPark/Turn Signal/Side Marker Lamp Replacement: Bulb Replacement - Removal Procedure:
1. Raise and suitably support the vehicle.
2. Remove the front fascia lower closeout panel.

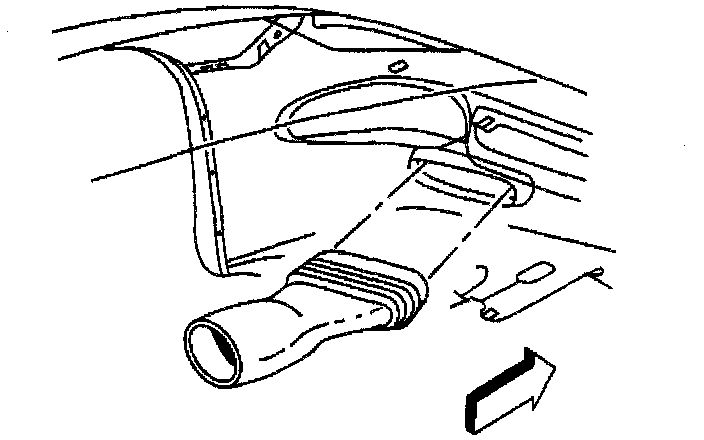

3. Release the brake caliper cooling duct from the front fascia, then reposition the duct.
Park/Turn Signal/Side Marker Lamp Replacement: Bulb Replacement - Removal Procedure:
4. Remove the appropriate socket from the lamp assembly.
5. Remove the bulb from the socket.
INSTALLATION PROCEDURE
Park/Turn Signal/Side Marker Lamp Replacement: Bulb Replacement - Installation Procedure:
1. Install the bulb to the socket.
2. Install the socket to the lamp assembly.
Park/Turn Signal/Side Marker Lamp Replacement: Bulb Replacement - Installation Procedure:

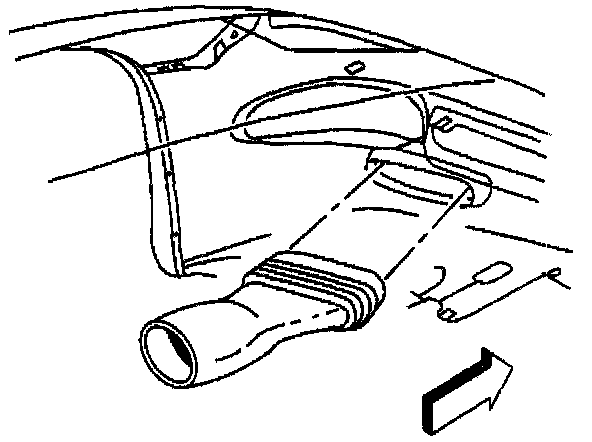

3. Position the brake caliper cooling duct to the front fascia and push the duct toward the fascia to secure.
4. Install the front fascia lower closeout panel.
5. Lower the vehicle.
