Powertrain Management: Tools and Equipment

METRI-PACK TERMINAL KIT
Used for making electrical test connections in current Weather Pack, METRI-Pack and Micro-Pack style terminals.

WEATHER-PACK TERMINAL REMOVER
Used for making electrical test connections in current Weather Pack, METRI-Pack and Micro-Pack style terminals

IAC MOTOR ANALYZER
Used to test AC motors for correct functioning and proper response to commands.

CONNECTOR TEST ADAPTER KIT
Used for making electrical test connections in current Weather Pack, METRI-Pack and Micro-Pack style terminals. Use tool part number J 35616-A or equivalent.

EXHAUST BACK PRESSURE TESTER
Used to diagnose a restricted exhaust at oxygen sensor.

Description:

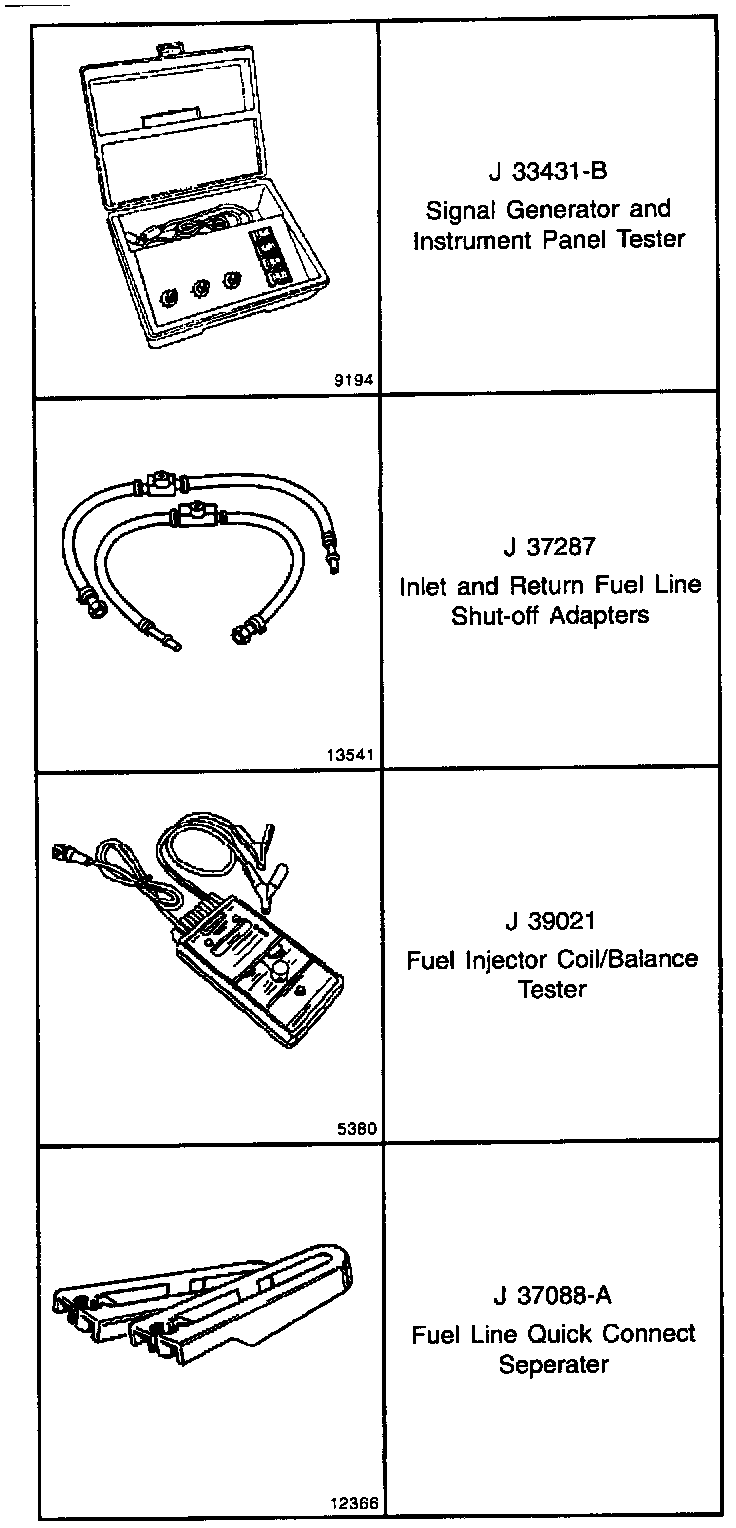

SIGNAL GENERATOR & INSTRUMENT PANEL TESTER
Used to generate a vehicle speed sensor signal.

INLET & RETURN FUEL LINE SHUT-OFF ADAPTERS
Used with J 34730-1 for checking and monitoring fuel line pressure.
- J37287-1 Inlet Adapter
- J37287-2 Return Adapter

FUEL INJECTOR COIL/BALANCE TESTER
- Fuel Injector Tester - (J 39021) - used to check injector coils and to perform injector balance (fuel flow) check.

FUEL LINE DISCONNECT TOOL SET
Used to release quick connect fuel lines. Use tool part number J 37088-A or equivalent.

Description:

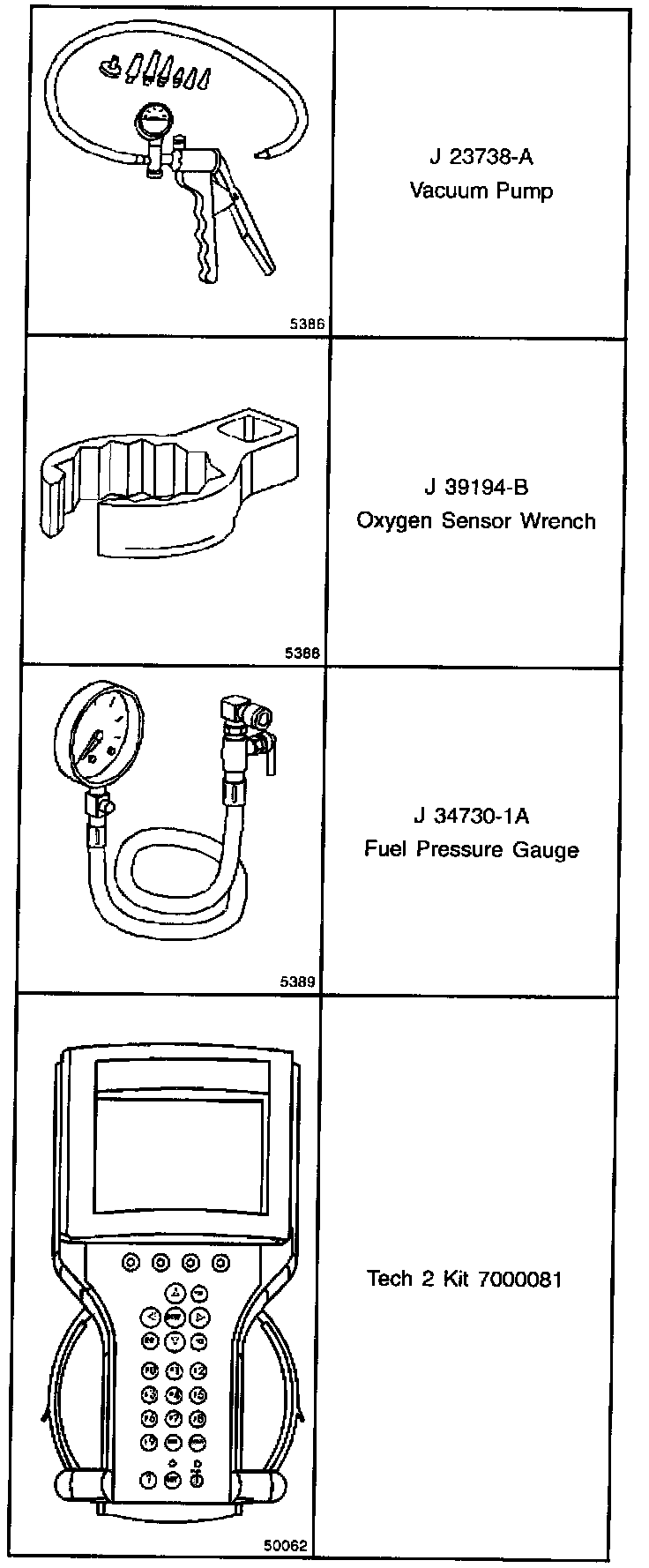

VACUUM PUMP WITH GAUGE
Use the gauge to monitor manifold engine vacuum and use the hand pump to check vacuum sensors, solenoids and valves. Use tool part number J 23738-A or equivalent.

OXYGEN SENSOR WRENCH
Used for removing or installing the oxygen sensor.

FUEL PRESSURE GAUGE
Used for checking and monitoring fuel line pressure of the fuel system.

Description:

INJECTOR TEST LIGHT
Used for checking the electrical circuit to a fuel injector. Use tool part number J 34730-2C or equivalent.

DIGITAL MULTI METER
Voltmeter
Voltage position measures magnitude of voltage when connected in parallel to an existing circuit. A digital voltmeter with a 10 megohm input impedance is used because this type of meter will not load down the circuit and result in faulty readings. Some circuits require accurate low voltage readings because they have a very high resistance.

Ammeter
When used as an ammeter, this meter accurately measures extremely low current flow. Refer to meter instructions for more information.
- Selector must be set properly for both function and range. DC is used for most automotive measurements.

Ohmmeter
Measures resistance of circuit directly in ohms.
- "OL" display in all ranges indicates open circuit.
- Zero display in all ranges indicates a short circuit.
- An intermittent connection in a circuit may be indicated by a digital reading that will not stabilize on the circuit.
- Range Switch - Automatic and Manual.
4OO ohms - Reads ohms directly. 4K, 40K, 400K ohms - Reads ohms in thousands. 4M, 40M, 400M ohms- Reads ohms in millions.
Refer To Users Manual For Complete Instructions

FUEL PRESSURE GAUGE KIT
Used for checking and monitoring fuel line pressure of the fuel system.

SPARK TESTER
Used for checking available secondary ignition voltage. Also referred to as an ST 125.

TEST LIGHT
Used for checking wiring for complete circuit, short to ground, or voltage.

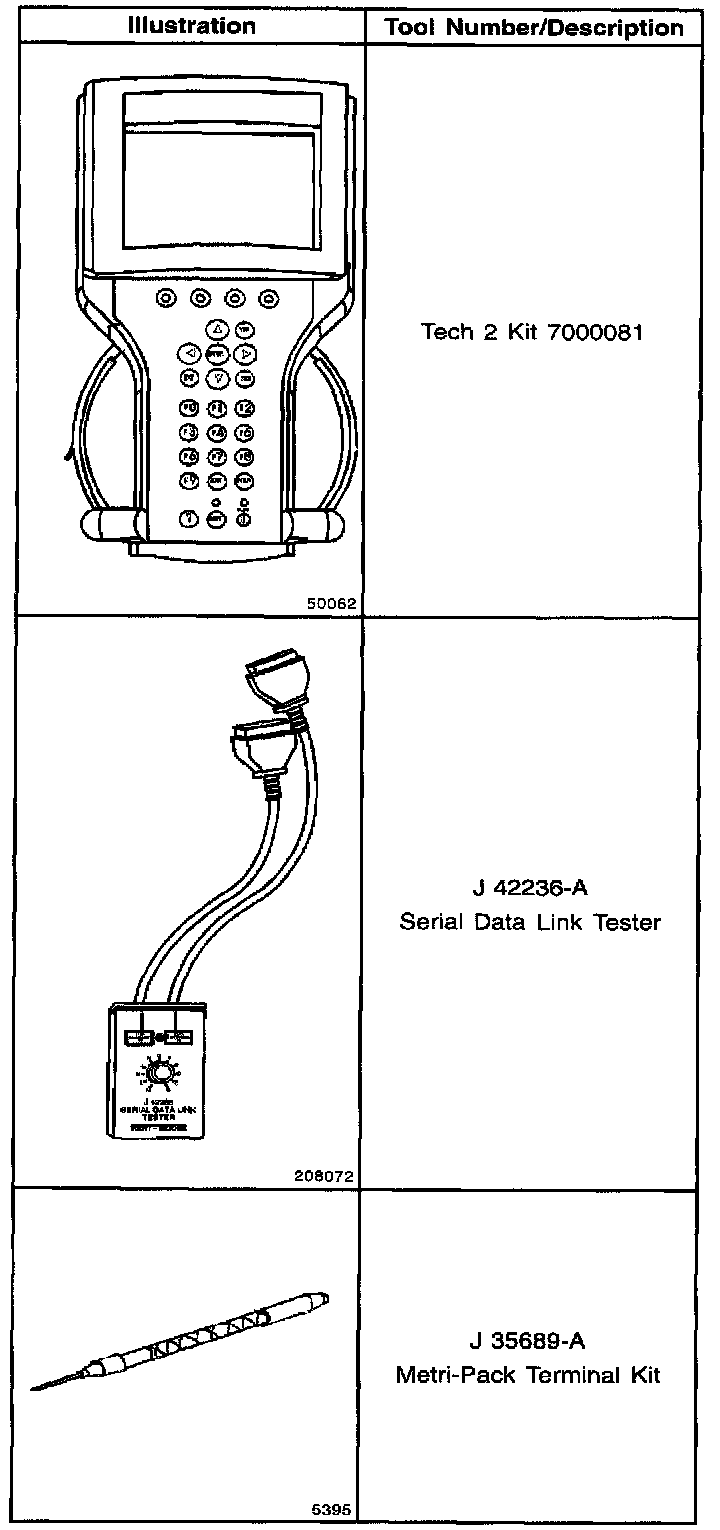

TECH 2 DIAGNOSTIC SCAN TOOL
A hand-held scan tool used to analyze and diagnose control module systems.
